NSN 5905-01-091-3424 15510086, 155-10086, 01-091-3424
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-01-091-3424 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 15510086, 155-10086, 5905-01-091-3424, 01-091-3424, 5905010913424, 010913424
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAR 1980 | 01-091-3424 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-091-3424
Cross Reference | NSN 5905-01-091-3424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 155-10086 | 54407 | POWER-ONE DC POWER SUPPLIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-091-3424
Technical Data | NSN 5905-01-091-3424
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO 20.0 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 10.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 10.00 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 55.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 105.0 SINGLE SECTION |

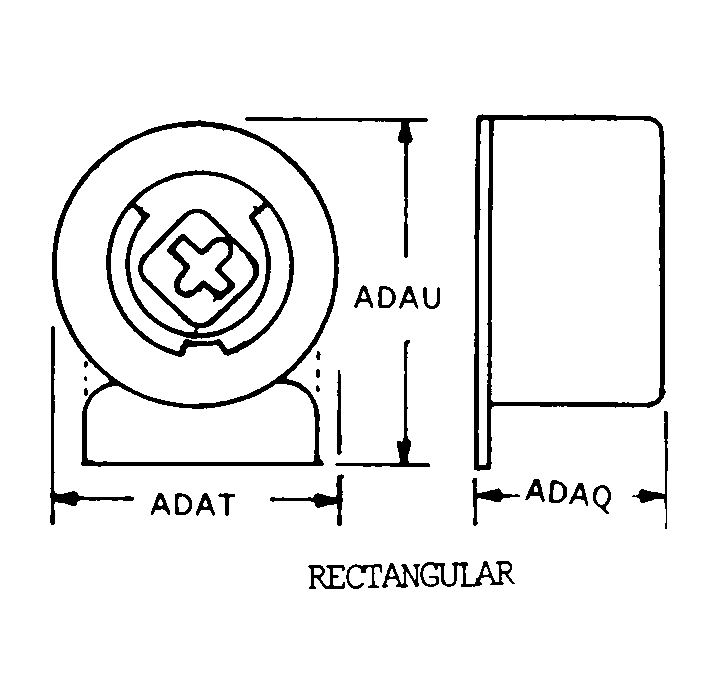

| BODY STYLE | 38B RECTANGULAR |
| BODY LENGTH | 0.469 INCHES NOMINAL |
| BODY WIDTH | 0.820 INCHES NOMINAL |
| BODY HEIGHT | 1.109 INCHES NOMINAL |
| ACTUATOR TYPE | FLUSH DRIVE WITH SLOT-HOLE |
| MOUNTING METHOD | TAB |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| TERMINAL LOCATION | LOWER ADJACENT SIDE SINGLE ROW |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
