Product Details | THERMAL RESISTOR
5905-00-946-6566 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 2D054, D054, 5905-00-946-6566, 00-946-6566, 5905009466566, 009466566
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1966 | 00-946-6566 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-946-6566
Demand History | NSN 5905-00-946-6566
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-946-6566 | 2008-08-230 | 8 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-946-6566
Related Products | NSN 5905-00-946-6566
Technical Data | NSN 5905-00-946-6566
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 1.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -10.0 TO 10.0 |
| AMBIENT TEMP AT FULL RATED POWER | 25.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 150.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 3.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 2.0 |

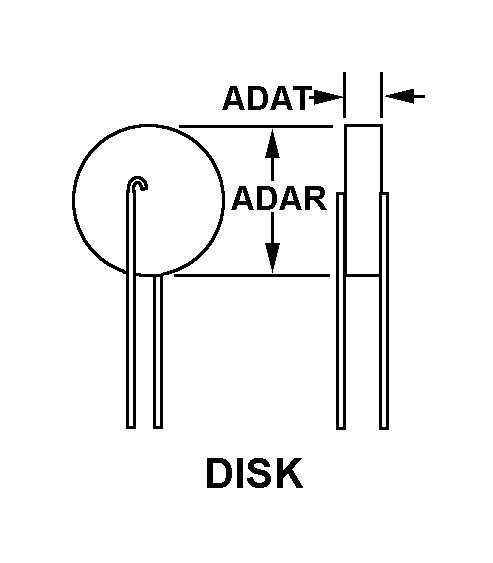

| STYLE DESIGNATOR | 20 DISK |
| BODY OUTSIDE DIAMETER | 0.050 INCHES NOMINAL |
| BODY WIDTH | 0.017 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.010 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III REFERENCE TEMP IN DEG CELSIUS | 25.0 |
| III TERMINAL SURFACE TREATMENT | COPPER AND TIN |
