NSN 5905-00-943-9087 2016010K, 201-60-10K, 00-943-9087
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-943-9087 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 2016010K, 201-60-10K, 5905-00-943-9087, 00-943-9087, 5905009439087, 009439087
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 FEB 1966 | 00-943-9087 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-943-9087
Cross Reference | NSN 5905-00-943-9087
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 201-60-10K | 75042 | TRW INC TRW ELECTRONIC COMPONENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-943-9087
Technical Data | NSN 5905-00-943-9087
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 5.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -70.0 TO 70.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 60.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |

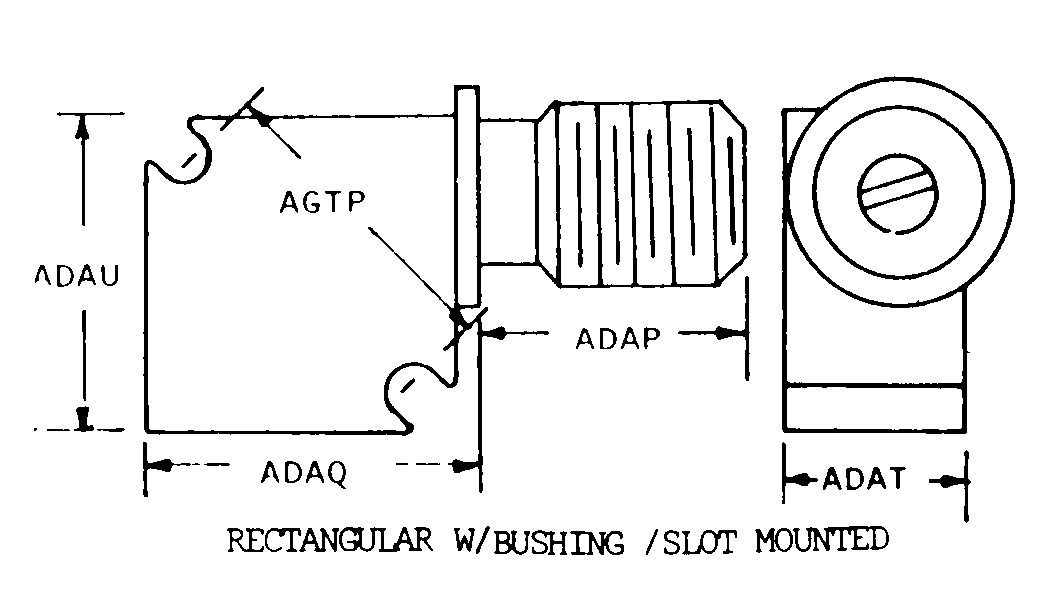

| BODY STYLE | 43B RECTANGULAR W/BUSHING/SLOT MOUNTED |
| BODY LENGTH | 0.540 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| BODY WIDTH | 0.266 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
| BODY HEIGHT | 0.548 INCHES MINIMUM AND 0.568 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.281 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.513 INCHES MINIMUM AND 0.526 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| SHAFT LENGTH | 0.281 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 9360.0 MINIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| MOUNTING METHOD | STANDARD BUSHING AND UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.070 INCHES MINIMUM AND 0.076 INCHES MAXIMUM |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| SCREW THREAD DIAMETER | 0.190 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 0.800 INCHES NOMINAL |
| III OVERALL HEIGHT | 0.548 INCHES MINIMUM AND 0.568 INCHES MAXIMUM |
| III OVERALL WIDTH | 0.266 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
