NSN 5905-00-790-4122 DFT17027, DFT-17-027, DFT17-027
Product Details | WIREWOUND FIXED RESISTOR NETWORK
5905-00-790-4122 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of high resistance wire (or ribbon), usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: DFT17027, DFT-17-027, DFT17-027, 5905-00-790-4122, 00-790-4122, 5905007904122, 007904122
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-790-4122 | 32069 ( RESISTOR NETWORK, FIXED, WIREWOUND ) |
Drawings & Photos | NSN 5905-00-790-4122
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-790-4122
Technical Data | NSN 5905-00-790-4122
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.600 KILOHMS 3.200 KILOHMS 5.300 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 1 LOWEST RESISTANCE VALUE 3 INTERMEDIATE RESISTANCE VALUE 1 HIGHEST RESISTANCE VALUE |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 -5.000 TO 5.000 -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 50.000 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | NOT RATED |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | NOT RATED |
| INCLOSURE METHOD | ENCAPSULATED |

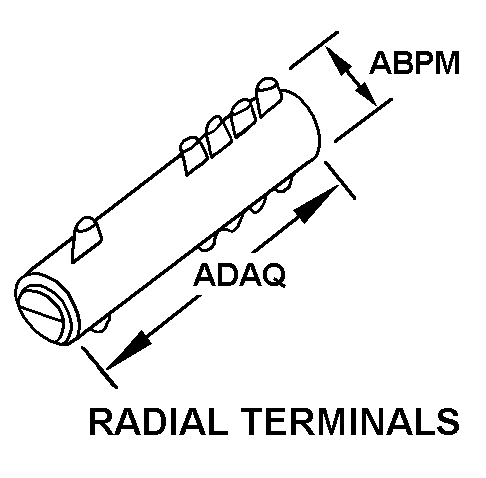

| STYLE DESIGNATOR | 43 RADIAL TERMINALS |
| BODY DIAMETER | 0.688 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
| BODY LENGTH | 4.438 INCHES MINIMUM AND 4.562 INCHES MAXIMUM |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 7 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.438 INCHES NOMINAL |
