NSN 5905-00-572-2097 BX137ET2000113760HMS, BX137ET2000-113760HMS, 72503810
Product Details | WIREWOUND FIXED RESISTOR NETWORK
5905-00-572-2097 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of high resistance wire (or ribbon), usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: BX137ET2000113760HMS, BX137ET2000-113760HMS, 72503810, 725038-10, 5905-00-572-2097, 00-572-2097, 5905005722097, 005722097
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-572-2097 | 32069 ( RESISTOR NETWORK, FIXED, WIREWOUND ) |
Drawings & Photos | NSN 5905-00-572-2097
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-572-2097
Technical Data | NSN 5905-00-572-2097
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 2.000 KILOHMS 11.376 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 1 LOWEST RESISTANCE VALUE 1 HIGHEST RESISTANCE VALUE |
| RESISTANCE TOLERANCE IN PERCENT | -0.300 TO 0.300 |
| POWER DISSIPATION RATING IN WATTS | 0.150 EACH RESISTOR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | NOT RATED |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | NOT RATED |
| INCLOSURE METHOD | ENCAPSULATED |

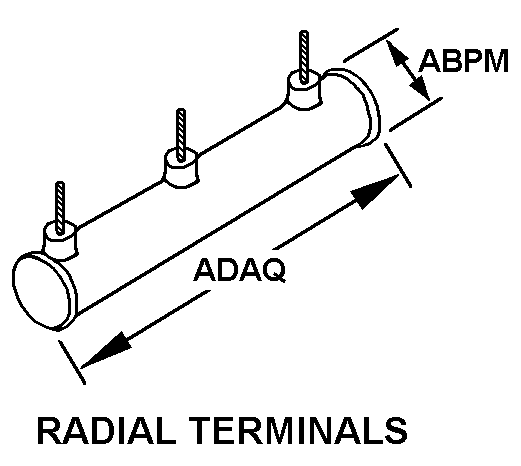

| STYLE DESIGNATOR | 92 RADIAL TERMINALS |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| BODY LENGTH | 0.703 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 3 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-572-2097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-572-2097
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
