NSN 5905-00-496-7871 932510A, 9-32-510A, 00-496-7871
Product Details | ADJUSTABLE RESISTOR
5905-00-496-7871 A resistor whose overall ohmic value is fixed; in addition, it has one or more movable terminals which are designed to be set and fixed prior to use, to include any desired value of resistance within the range of the complete resistor. The opposition to the flow of current is an inherent property of the material used and is manifest in the heat dissipated in the item itself.
Part Alternates: 932510A, 9-32-510A, 5905-00-496-7871, 00-496-7871, 5905004967871, 004967871
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 OCT 1969 | 00-496-7871 | 00009 ( RESISTOR, ADJUSTABLE ) |
Drawings & Photos | NSN 5905-00-496-7871
Cross Reference | NSN 5905-00-496-7871
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9-32-510A | 82807 | MILWAUKEE RESISTOR CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-496-7871
Technical Data | NSN 5905-00-496-7871
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 510.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| POWER DISSIPATION RATING IN WATTS | 20.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 415.0 |
| INCLOSURE METHOD | UNINCLOSED |

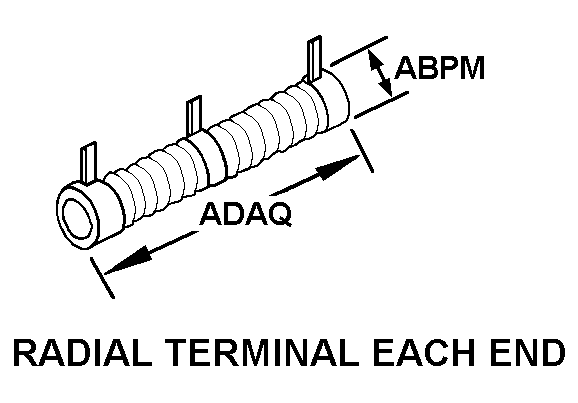

| STYLE DESIGNATOR | 169 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
| TERMINAL LENGTH | 0.438 INCHES NOMINAL |
| TERMINAL WIDTH | 0.188 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-496-7871
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-496-7871
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
