NSN 5905-00-484-9943 10030, 100-30, 311-0867-00
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-484-9943 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 10030, 100-30, 311-0867-00, 5905-00-484-9943, 00-484-9943, 5905004849943, 004849943, 311086700
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAR 1972 | 00-484-9943 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-484-9943
Demand History | NSN 5905-00-484-9943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10030 | 2024-02-53 | 100 | United States |
| 10030 | 2012-09-261 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-484-9943
Related Products | NSN 5905-00-484-9943
Technical Data | NSN 5905-00-484-9943
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 30.0 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| MAXIMUM STOP TORQUE | 30.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 7.50 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 7.50 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -50.0 TO 50.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |

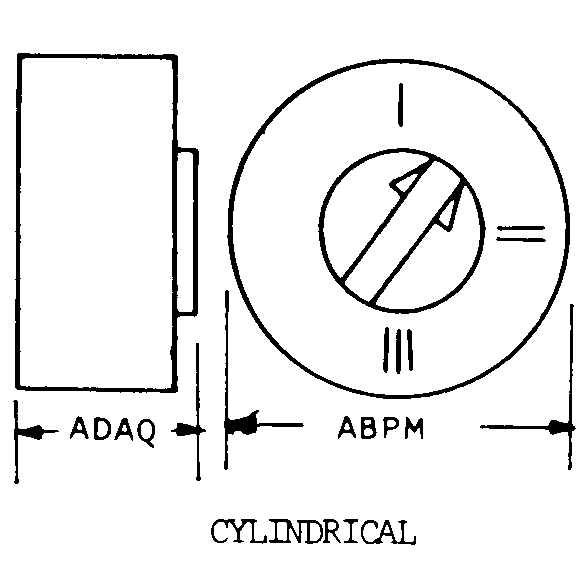

| BODY STYLE | 39B CYLINDRICAL |
| BODY DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| BODY LENGTH | 0.225 INCHES MINIMUM AND 0.245 INCHES MAXIMUM |
| ACTUATOR TYPE | FLUSH DRIVE WITH SLOT-HOLE |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 320.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 315.0 NOMINAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.200 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.100 INCHES NOMINAL |
| TERMINAL LENGTH | 0.187 INCHES NOMINAL |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 0.422 INCHES NOMINAL |
| III OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
