Product Details | WIRE WOUND FIXED RESISTOR

5905-00-257-7073 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.

Part Alternates: IC9006A100L18750, MILR15109, QDK2673249G118750, QDK2673249G1-18750, 9756507G200, 5905-00-257-7073, 00-257-7073, 5905002577073, 002577073

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-257-7073

Drawings & Photos | NSN 5905-00-257-7073


Cross Reference | NSN 5905-00-257-7073

Part Number Cage Code Manufacturer
9756507G200 71669 GENERAL ELECTRIC CO SWITCHGEAR AND CONTROL DIVISION
IC9006A100L18750 01526 GENICOM CORP
MILR15109 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
QDK2673249G1-18750 01526 GENICOM CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5905-00-257-7073

Technical Data | NSN 5905-00-257-7073

Characteristic Specifications
ELECTRICAL RESISTANCE 18.750 KILOHMS
RESISTANCE TOLERANCE IN PERCENT -5.000 TO 5.000
POWER DISSIPATION RATING IN WATTS 120.000 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER 50.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 350.0
INCLOSURE METHOD ENCAPSULATED

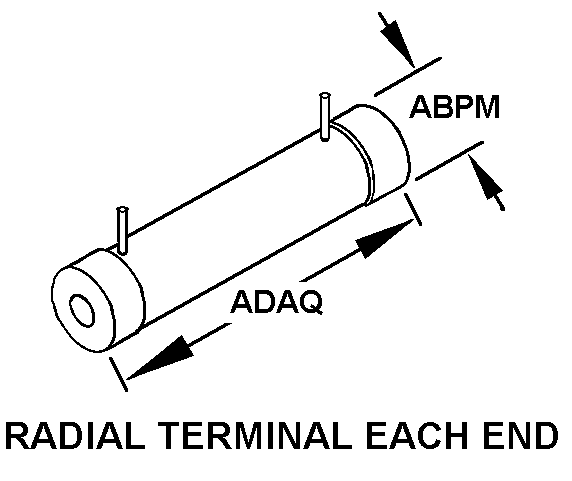

STYLE DESIGNATOR 75 RADIAL TERMINAL EACH END
BODY DIAMETER 0.938 INCHES NOMINAL
BODY LENGTH 7.500 INCHES NOMINAL
TERMINAL TYPE WIRE LEAD
RELIABILITY INDICATOR NOT ESTABLISHED
REACTANCE CHARACTERISTIC INDUCTIVE
TEST DATA DOCUMENT 81349-MILR15109B SPECIFICATION
NONDEFINITIVE SPEC/STD DATA IW FORM
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILR15109
