NSN 5905-00-235-8668 80-9-175-501, 855-002-008, 99365012770
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-235-8668 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 80-9-175-501, 855-002-008, 99365012770, 9936-501-2770, 5905-00-235-8668, 00-235-8668, 5905002358668, 809175501, 855002008, 002358668
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 OCT 1969 | 00-235-8668 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |

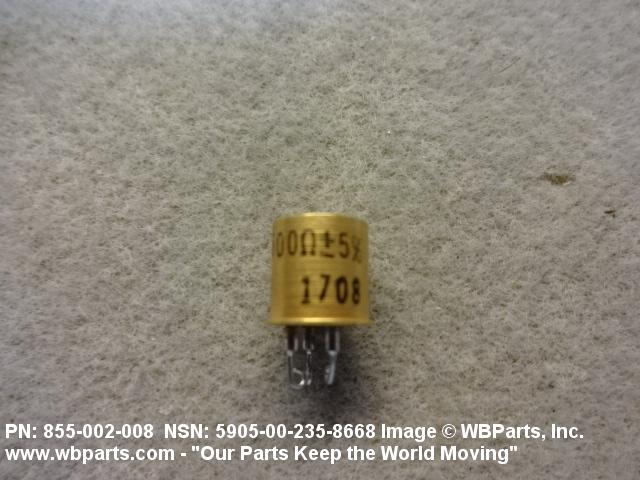

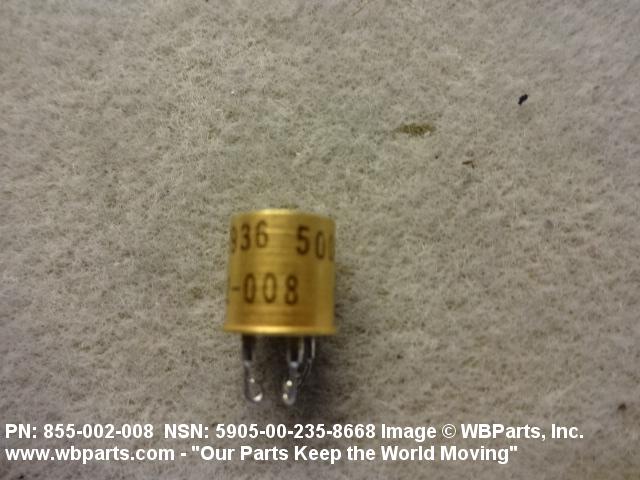

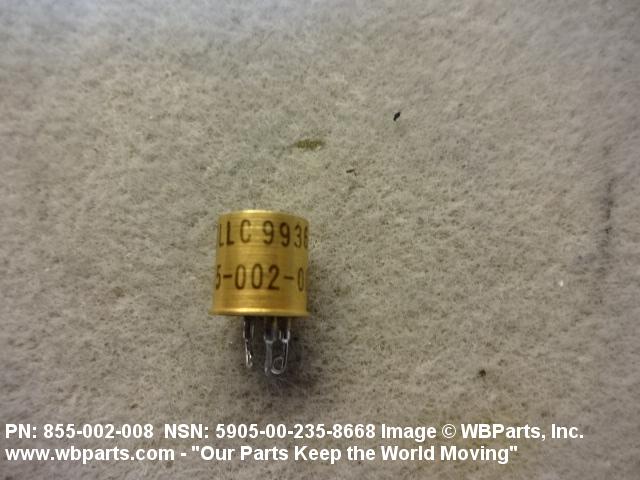

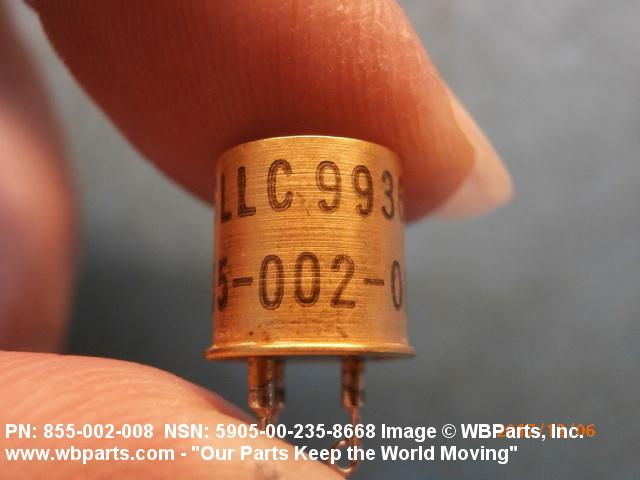

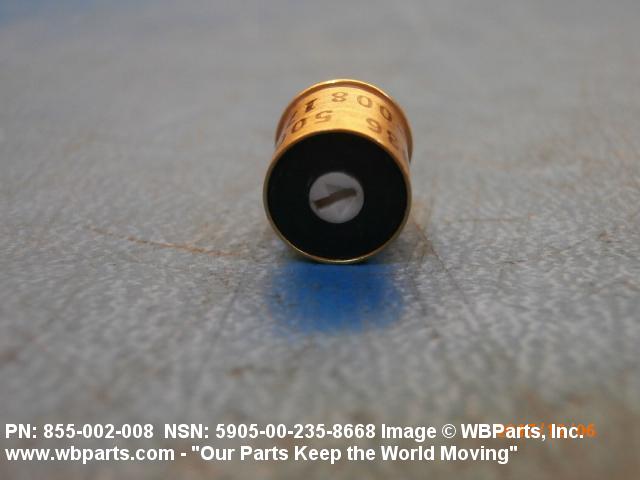

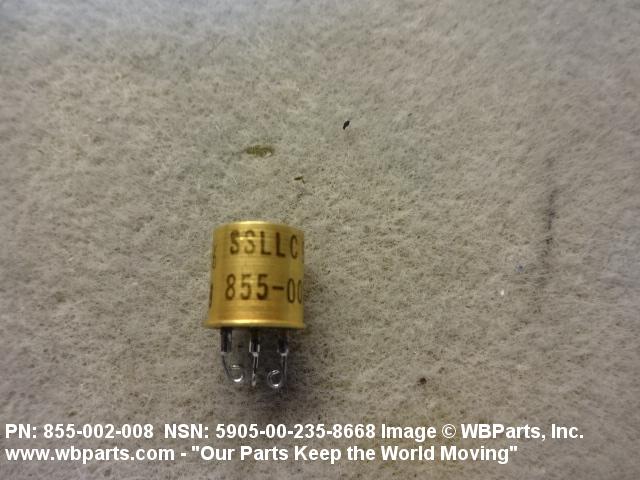

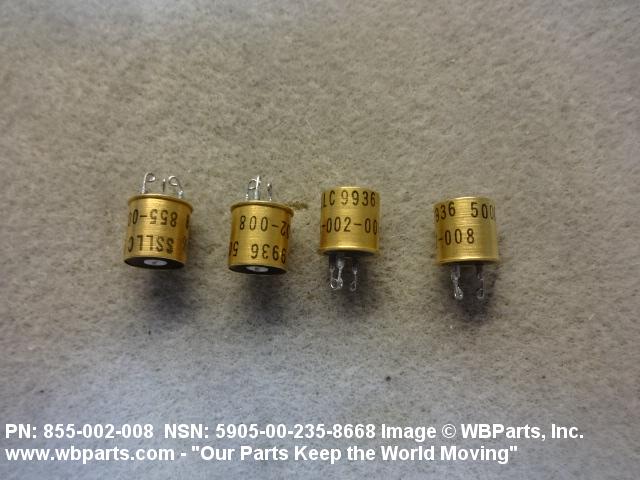

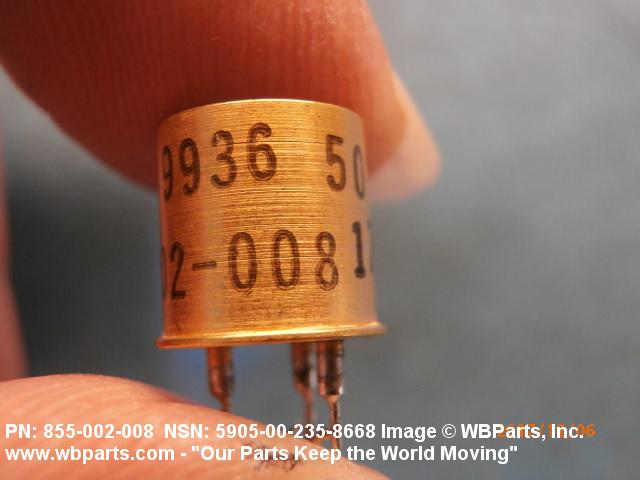

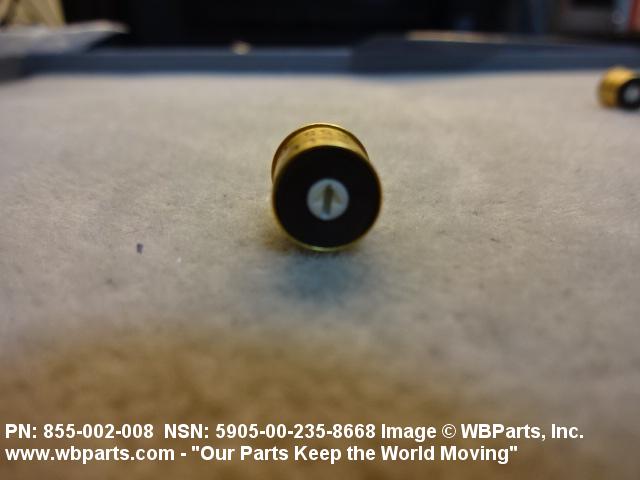

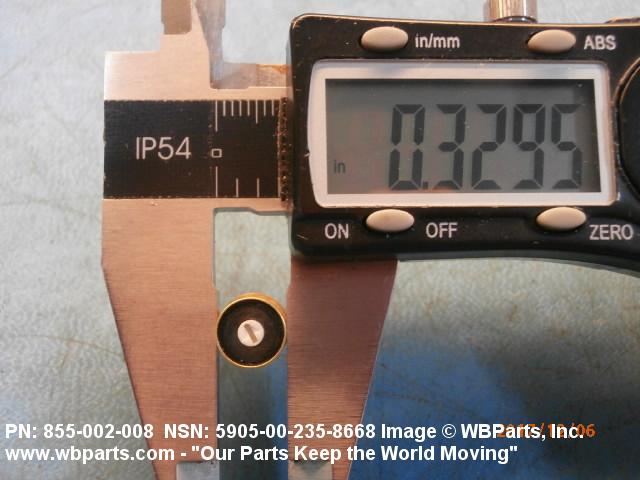

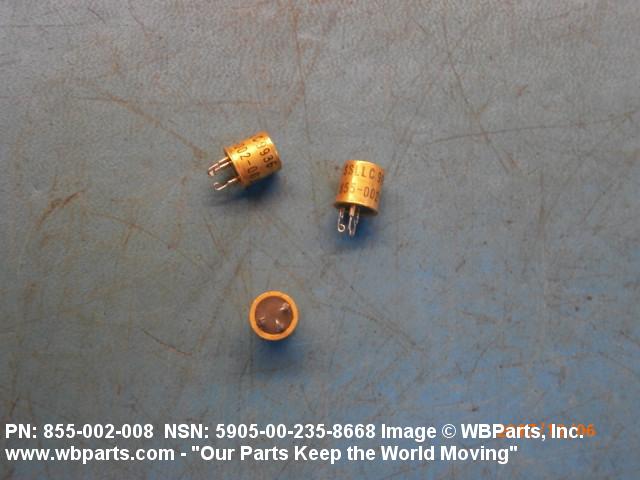

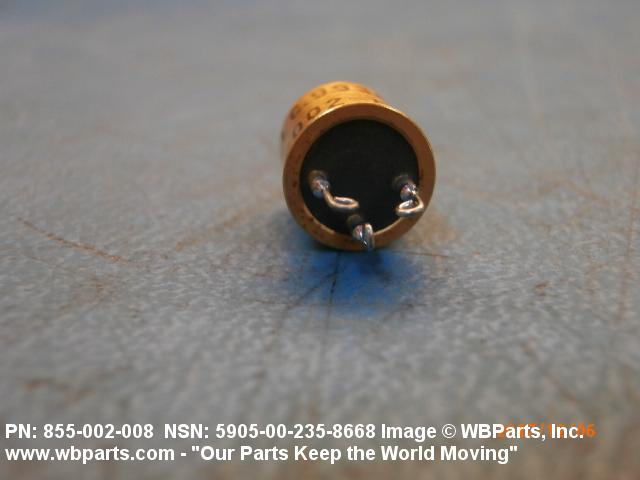

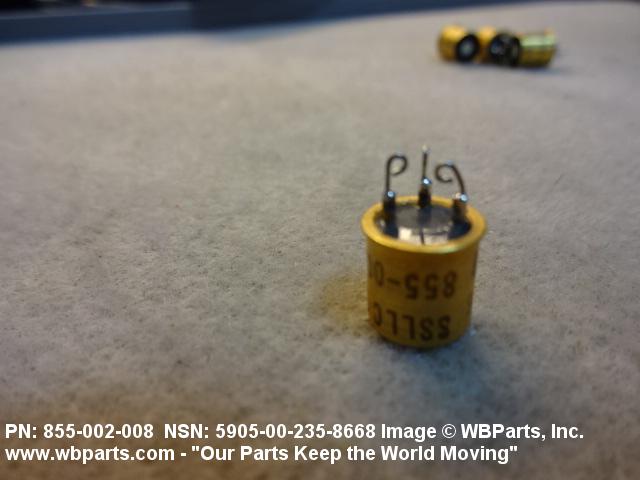

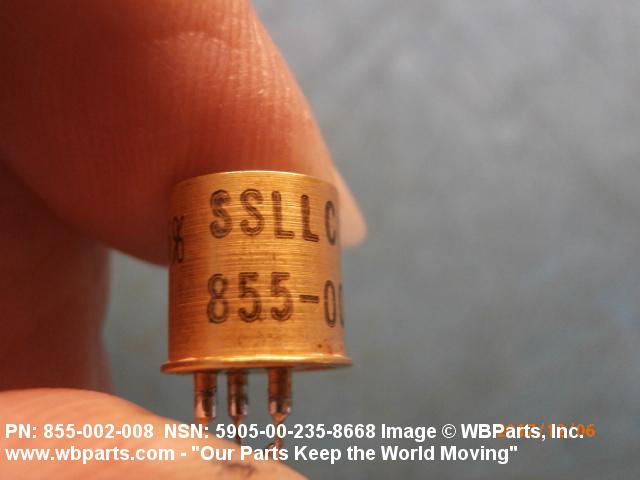

Drawings & Photos | NSN 5905-00-235-8668
Demand History | NSN 5905-00-235-8668
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 80-9-175-501 | 2024-11-317 | 84 | DIBBS |
| 855-002-008 | 2024-11-317 | 84 | DIBBS |
| 80-9-175-501 | 2024-10-305 | 84 | DIBBS |
| 855-002-008 | 2024-10-305 | 84 | DIBBS |
| 5905-00-235-8668 | 2023-11-312 | 3 | United States |
| 80-9-175-501 | 2022-03-90 | 39 | DIBBS |
| 855-002-008 | 2022-03-90 | 39 | DIBBS |
| 5905-00-235-8668 | 2022-01-28 | 30 | us |
| 5905-00-235-8668 | 2022-01-10 | 60 | TH |
| 5905-00-235-8668 | 2021-04-103 | 100 | Taiwan |
| 80-9-175-501 | 2019-03-76 | 152 | DIBBS |
| 855-002-008 | 2019-03-76 | 152 | DIBBS |
| 80-9-175-501 | 2019-01-08 | 89 | DIBBS |
| 855-002-008 | 2019-01-08 | 89 | DIBBS |
| 5905-00-235-8668 | 2018-12-361 | 89 | DIBBS |
| 5905-00-235-8668 | 2018-10-274 | 152 | DIBBS |
| 5905-00-235-8668 | 2018-09-263 | 152 | DIBBS |
| 5905-00-235-8668 | 2018-08-232 | 30 | DIBBS |
| 5905-00-235-8668 | 2018-08-225 | 112 | DIBBS |
| 5905-00-235-8668 | 2018-08-221 | 30 | DIBBS |
| 5905-00-235-8668 | 2018-08-214 | 112 | DIBBS |
| 855002008 | 2018-05-134 | 8 | Brazil |
| 855002008 | 2017-11-320 | 24 | Brazil |
| 855002008 | 2016-05-126 | 8 | Brazil |
| 855002008 | 2015-09-266 | 2 | Brazil |
| 855002008 | 2011-12-349 | 3 | us |
| 5905-00-235-8668 | 2010-03-64 | 181 | DIBBS |
| 5905-00-235-8668 | 2010-01-19 | 172 | DIBBS |
| 5905-00-235-8668 | 2009-12-344 | 228 | DIBBS |
| 5905-00-235-8668 | 2009-11-314 | 68 | DIBBS |
| 5905-00-235-8668 | 2009-10-292 | 282 | DIBBS |
| 5905-00-235-8668 | 2009-09-244 | 21 | DIBBS |
| 5905-00-235-8668 | 2009-07-211 | 134 | DIBBS |
| 5905-00-235-8668 | 2009-07-195 | 34 | DIBBS |
| 5905-00-235-8668 | 2009-06-156 | 58 | DIBBS |
| 5905-00-235-8668 | 2009-05-125 | 106 | DIBBS |
| 5905-00-235-8668 | 2009-04-105 | 158 | DIBBS |
| 855002008 | 2009-01-26 | 4 | Malaysia |
| 5905-00-235-8668 | 2008-04-95 | 262 | DIBBS |
Cross Reference | NSN 5905-00-235-8668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80-9-175-501 | 02111 | VISHAY THIN FILM, LLC DBA VISHAY SPECTORAL ELECTRONICS |
| 855-002-008 | 04454 | SENSOR SYSTEMS, L.L.C. |
| 855-002-008 | 26055 | PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION |
| 855-002-008 | 59211 | PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY |
| 855-002-008 | 84048 | VERNITRON CORP VRN INTERNATIONAL DIV |
| 9936-501-2770 | 84048 | VERNITRON CORP VRN INTERNATIONAL DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-235-8668
Related Products | NSN 5905-00-235-8668
Technical Data | NSN 5905-00-235-8668
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |

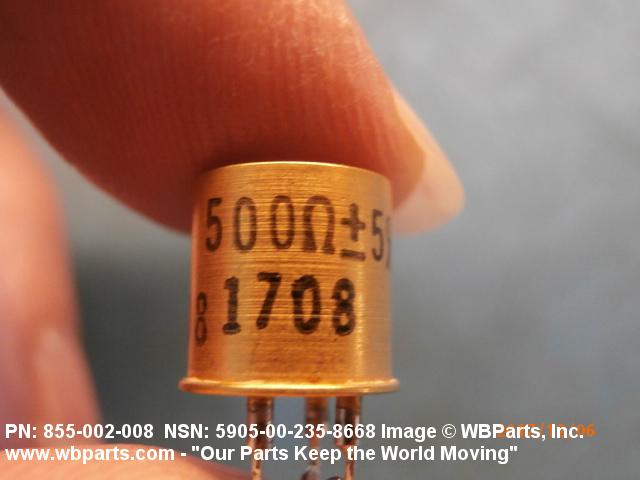

| ELECTRICAL RESISTANCE PER SECTION | 500.0 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -50.0 TO 50.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.25 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 50.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 175.0 SINGLE SECTION |
| BODY STYLE | 39B CYLINDRICAL |

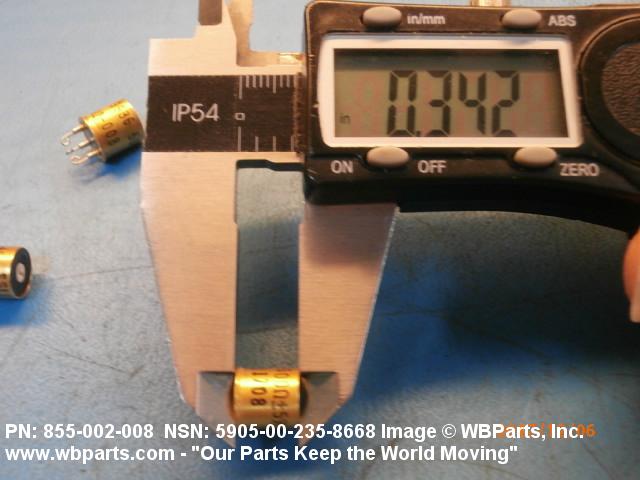

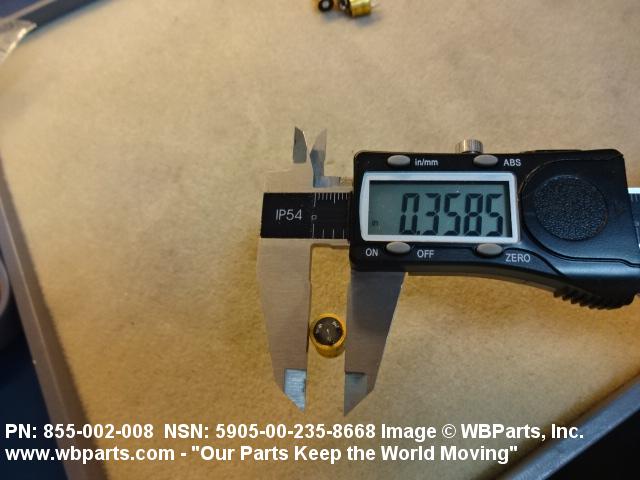

| BODY DIAMETER | 0.360 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |

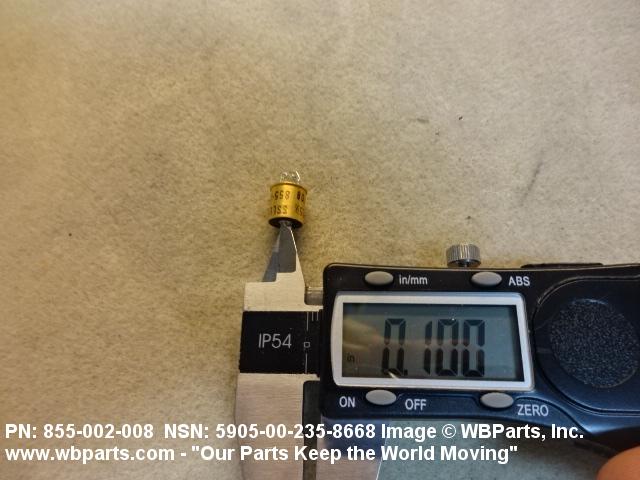

| SHAFT DIAMETER | 0.100 INCHES NOMINAL |
| SHAFT LENGTH | 0.026 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 320.0 NOMINAL |
| MOUNTING METHOD | TERMINAL |

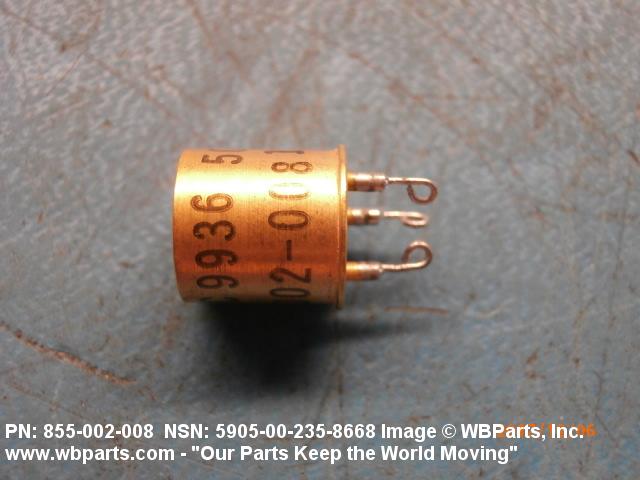

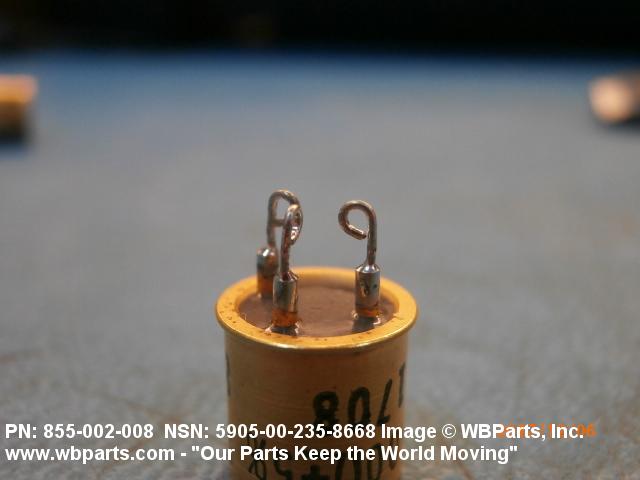

| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5905-00-235-8668
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-235-8668
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
