NSN 5905-00-235-7820 T9172281G2, 4807622, 480762-2
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-235-7820 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: T9172281G2, 4807622, 480762-2, 5905-00-235-7820, 00-235-7820, 5905002357820, 002357820
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-235-7820 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-235-7820
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-235-7820
Technical Data | NSN 5905-00-235-7820
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.30 TO 0.30 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 2.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 1.00 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 3.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 20.0 SINGLE SECTION |
| FIXED TAP QUANTITY PER SECTION | 1 SINGLE SECTION |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN DEG OF EFFECTIVE ELECTRICAL ROTATION | 155.0 SINGLE SECTION |
| TAP LOCATION TOLERANCE PER SECTION | -1.0 TO 1.0 DEG ANGULAR ROTATION SINGLE SECTION |

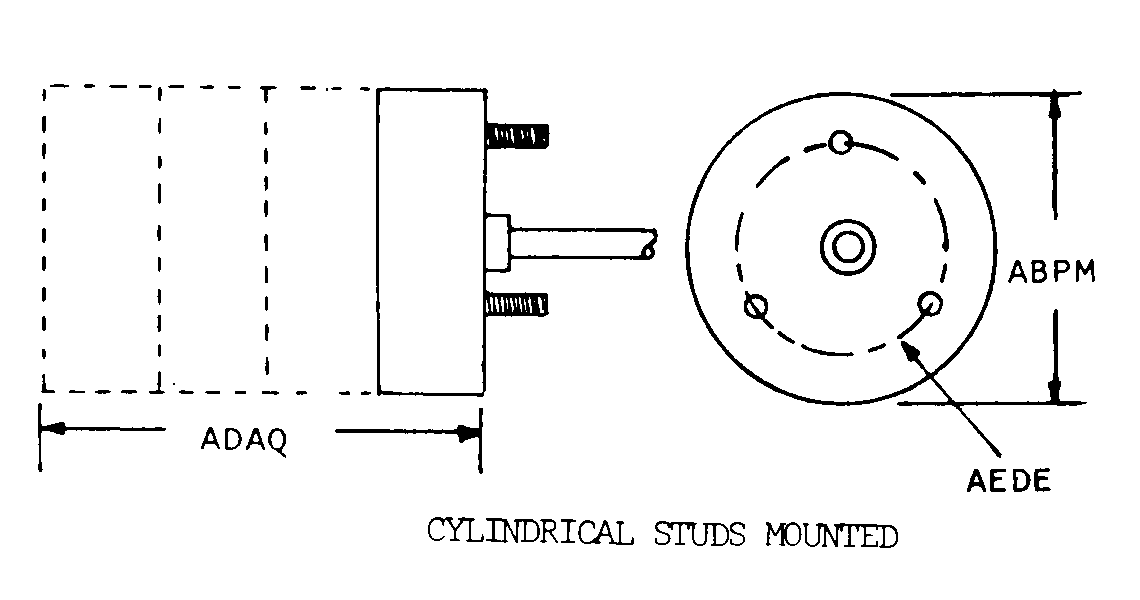

| BODY STYLE | 21B CYLINDRICAL STUDS MOUNTED |
| BODY DIAMETER | 3.000 INCHES NOMINAL |
| BODY LENGTH | 1.188 INCHES NOMINAL |
| MOUNTING HOLE/STUD CIRCLE DIAMETER | 1.750 INCHES NOMINAL |
| ACTUATOR TYPE | DOUBLE ENDED SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.531 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 310.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 310.0 NOMINAL |
| MOUNTING METHOD | THREADED HOLE |
| MOUNTING FACILITY QUANTITY | 3 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| SCREW THREAD DIAMETER | 0.164 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
Restrictions/Controls & Freight Information | NSN 5905-00-235-7820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-235-7820
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
