Product Details | THERMAL RESISTOR
5905-00-219-6125 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 201659, 38A50, 5905-00-219-6125, 00-219-6125, 5905002196125, 002196125
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1973 | 00-219-6125 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-219-6125
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-219-6125
Related Products | NSN 5905-00-219-6125
Technical Data | NSN 5905-00-219-6125
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 8.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -20.0 TO 20.0 |
| AMBIENT TEMP AT FULL RATED POWER | 25.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 300.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 45.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 3.0 |
| ZERO POWER TEMP COEFFICIENT OF RESISTANCE IN PERCENT PER DEG CELSIUS | -3.90 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | -40.0 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT -25.0 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT 50.0 DEG CELSIUS 3RD RESISTANCE-TEMPERATURE POINT 100.0 DEG CELSIUS 4TH RESISTANCE-TEMPERATURE POINT 200.0 DEG CELSIUS 5TH RESISTANCE-TEMPERATURE POINT 300.0 DEG CELSIUS 6TH RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 192.0 KILOHMS 1ST RESISTANCE-TEMPERATURE POINT 84.0 KILOHMS 2ND RESISTANCE-TEMPERATURE POINT 3.2 KILOHMS 3RD RESISTANCE-TEMPERATURE POINT 688.0 OHMS 4TH RESISTANCE-TEMPERATURE POINT 84.0 OHMS 5TH RESISTANCE-TEMPERATURE POINT 26.0 OHMS 6TH RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -15.0 TO 15.0 ALL RESISTANCE-TEMPERATURE POINTS |

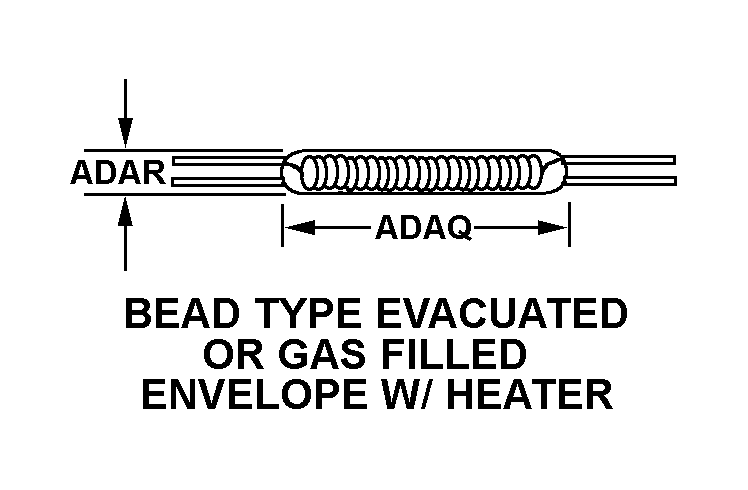

| STYLE DESIGNATOR | 42 BEAD TYPE EVACUATED OR GAS FILLED ENVELOPE W/ HEATER |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.188 INCHES NOMINAL |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| TERMINAL LENGTH | 1.000 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.012 INCHES MINIMUM AND 0.016 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
