NSN 5905-00-158-5430 A3MP, 00-158-5430, 001585430
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-158-5430 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: A3MP, 5905-00-158-5430, 00-158-5430, 5905001585430, 001585430
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-158-5430 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-158-5430
Cross Reference | NSN 5905-00-158-5430
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A3MP | 37942 | YOSEMITE INVESTMENT INC DBA NORTH AMERICAN CAPACITOR CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-158-5430
Technical Data | NSN 5905-00-158-5430
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 3.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 4.0 FREE AIR SINGLE SECTION |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 1.625 INCHES NOMINAL |
| BODY LENGTH | 0.562 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |

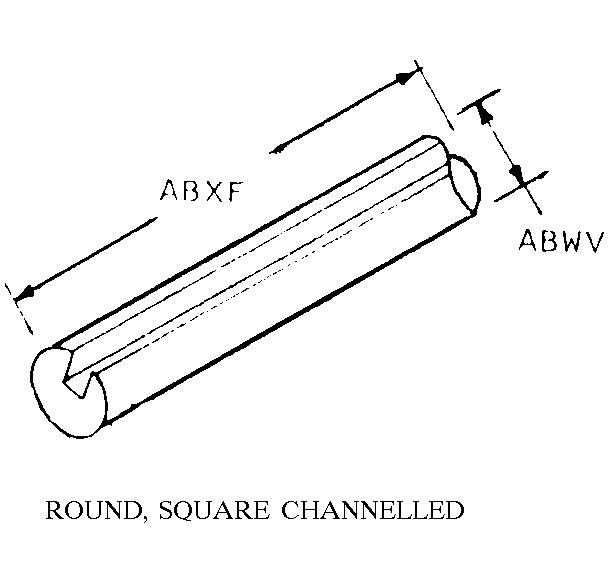

| SHAFT STYLE | 31C ROUND, SQUARE CHANNELLED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 3.375 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | WITH MALLORY TYPE 396 DIAL PLATE |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
