NSN 5905-00-114-5235 F12, F1-2, 00-114-5235
Product Details | COMPOSITION FIXED RESISTOR
5905-00-114-5235 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: F12, F1-2, 5905-00-114-5235, 00-114-5235, 5905001145235, 001145235
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-114-5235 | 00126 ( RESISTOR, FIXED, COMPOSITION ) |
Drawings & Photos | NSN 5905-00-114-5235
Cross Reference | NSN 5905-00-114-5235
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-8007-375 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 060-05102-042 | 12131 | LH ENTERPRISE |
| 08-49003-04 | 53908 | COMPUTER AUTOMATION INC |
| 11261557 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 14000216-542 | 17479 | HONEYWELL INC COMMERCIAL DIV |
| 143656 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 144717 | 89536 | FLUKE CORPORATION |
| 300-04-510-05 | 01205 | LOGETRONICS CORPORATION |
| 311-008-510 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 3R77-P510J | 33173 | MPD, INC. |
| 3R77P510J | 08771 | GENERAL ELECTRIC CO MOBILE COMMUNICATIONS BUSINESS DIV |
| 400-612-032 | A1997 | ELETTRONICA SPA |
| 4171306-378 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 443-1467-018 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 572259-4 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 585326-52 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 621116 | 11146 | AMERICAN MONARCH CORP |
| 700023 | 33013 | LOGIMETRICS INC |
| 7550004P042 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 815-1853037 PIECE 2A | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 850151-0000 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 850380-0510 | 65597 | THALES DEFENSE & SECURITY, INC. |
| A63406 | 32759 | LVC INDUSTRIES INC CO-ORD SWITCH DIV |
| BACR14CJ510 | 77272 | THE BOEING COMPANY DBA BOEING |
| DEB-5105 | 80103 | VEECO INSTRUMENTS INC LAMBDA DIV |
| EB5105 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| EB5105 | 01121 | ROCKWELL AUTOMATION, INC. |
| EB510HMS5PCT | 01121 | ROCKWELL AUTOMATION, INC. |
| GBT1-2-510J | 75042 | TRW INC TRW ELECTRONIC COMPONENTS |
| JANRCR20G510JM | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| JANRCR20G510JR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M1-51055 | 54418 | MILTOPE CORPORATION |
| M17-51055 | 54418 | MILTOPE CORPORATION |
| MIL-R-39008/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR11-RC20GF500FS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35043-56 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N400-612-032 | A1997 | ELETTRONICA SPA |
| N400-612-032 | C3141 | ELETTRONICA GMBH |
| RC20GF510J | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| RCR20C510JS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G500JM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G500KM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G510JM | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| RCR20G510JM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G510JP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G510JR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G510JS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR20G510KR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-114-5235
Technical Data | NSN 5905-00-114-5235
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 50.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| POWER DISSIPATION RATING IN WATTS | 0.500 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | NOT RATED |

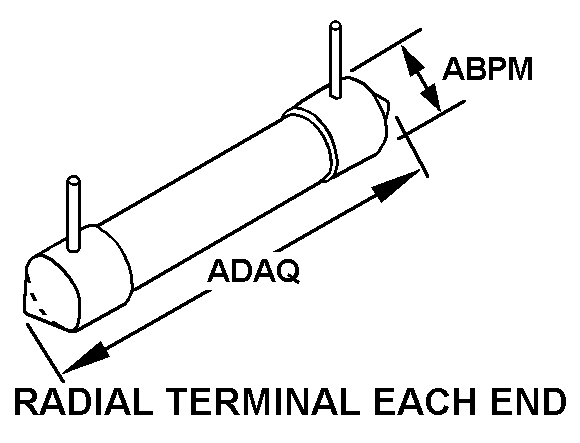

| STYLE DESIGNATOR | 66 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 0.188 INCHES NOMINAL |
| BODY LENGTH | 1.031 INCHES NOMINAL |
| TERMINAL TYPE | FERRULE W/WIRE LEAD |
Restrictions/Controls & Freight Information | NSN 5905-00-114-5235
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
