NSN 5905-00-104-8360 C51101G623JS, C5110-1G623JS, MIL-R-39008/1
Product Details | COMPOSITION FIXED RESISTOR
5905-00-104-8360 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: C51101G623JS, C5110-1G623JS, MIL-R-39008/1, MILR390081, RC07GF623JJ, RC07GF623K, RCR07G593JM, RCR07G603JS, RCR07G623JM, RCR07G623JP, RCR07G623JS, RCR7G623JS, RLR07C6202GM, 311-007-623, 315-0623-00, 900034-623, 9440361623, 944036-1623, 06006205041, 060-06205-041, 10003010392, 1-0003-0103-92, 10120219 , 101612, 12B16200, 1370076235, 137-007-6235, 200074-620, 2495500-92 , 2500932-92, 400-512-106, 41181 35620, 4118135620, 4171306454, 4171306-454, 4431466092, 443-1466-092, 4700156202, 4700-15-6202, 5503826335CS, 55-0382-6335CS, 5591561092, 559-1561-092 , 5C12726235, 5C127-26235, 604AS5086, 604AS508-6, 735506230000, 7450813000, 745-0813-000, 5905-00-104-8360, 00-104-8360, 5905001048360, 900034623, 001048360, 249550092, 311007623, 250093292, 141202106, 200074620, 400512106, 315062300
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JUL 1968 | 00-104-8360 | 00126 ( RESISTOR, FIXED, COMPOSITION ) |

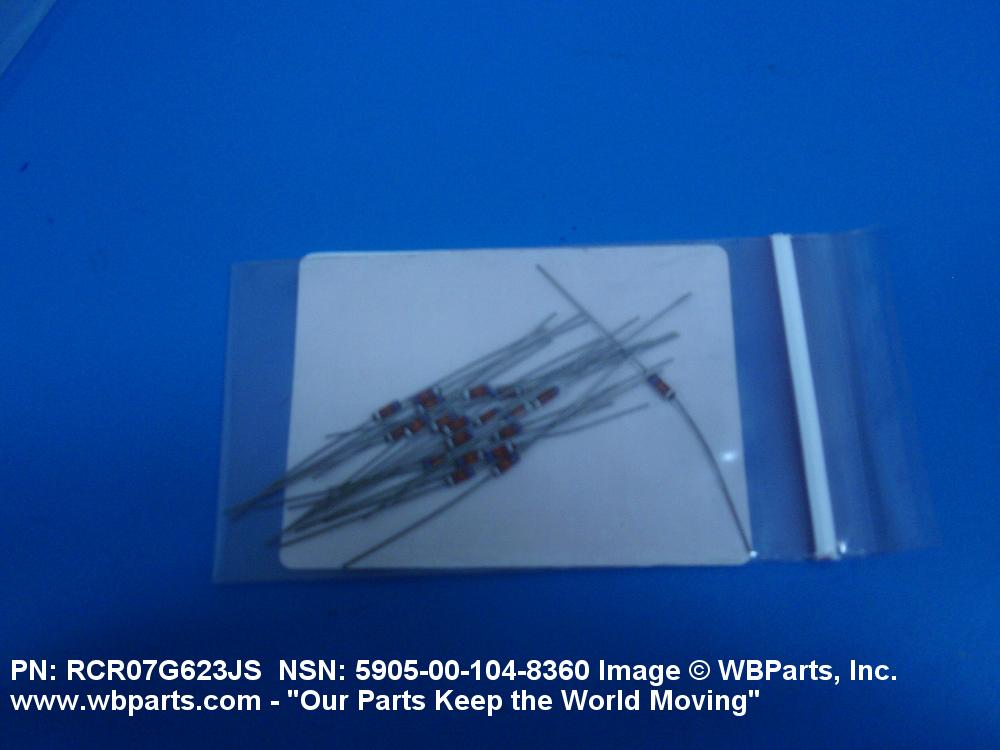

Drawings & Photos | NSN 5905-00-104-8360
Demand History | NSN 5905-00-104-8360
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILR390081 | 2013-03-73 | 50 | US |
| RCR07G603JS | 2009-11-334 | 40 | China |
| MILR390081 | 2009-08-228 | 1 | EG |
| RCR07G623JS | 2008-09-246 | 20 | France |
| RCR07G623JS | 2008-09-246 | 10 | France |
| RCR07G623JS | 2008-06-158 | 10 | France |
Cross Reference | NSN 5905-00-104-8360
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 060-06205-041 | 12131 | LH ENTERPRISE |
| 1-0003-0103-92 | 08642 | QUADRI CORP |
| 101612 | 52542 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
| 12B16200 | 50319 | HEKIMIAN LABORATORIES INC CUSTOMER SUPPORT DEPT |
| 137-007-6235 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 141202106 | 31795 | EATON CORPORATION |
| 200074-620 | 32274 | CIPHER DATA PRODUCTS INC OEM MARKETING DIV |
| 2500932-92 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 311-007-623 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 315-0623-00 | 59873 | SPACELABS-HILLSBORO OPERATIONS SQUIBB VITATEK INC |
| 400-512-106 | A1997 | ELETTRONICA SPA |
| 400-512-106 | C3141 | ELETTRONICA GMBH |
| 41181 35620 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 4171306-454 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 443-1466-092 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 4700-15-6202 | 34280 | WAVETEK RF PRODUCTS INC |
| 55-0382-6335CS | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 5C127-26235 | 06602 | NEXTIRAONE SOLUTIONS LLC |
| 604AS508-6 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 735506230000 | 57112 | UNIVERSAL DATA SYSTEMS INC SUB OF MOTOROLA INC |
| 745-0813-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 900034-623 | 55788 | CATEL TELECOMMUNICATIONS INC SUB OF DATA-DESIGN LABORATORIES |
| 944036-1623 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| C5110-1G623JS | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MIL-R-39008/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RC07GF623JJ | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RC07GF623K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR07G593JM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR07G603JS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR07G623JM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR07G623JP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR07G623JS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCR7G623JS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR07C6202GM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-104-8360
Related Products | NSN 5905-00-104-8360
Technical Data | NSN 5905-00-104-8360
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 62.000 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 0.250 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 70.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 130.0 |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 14 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 0.090 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.001 |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-R-39008 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-39008/1 GOVERNMENT SPECIFICATION |
| III UNPACKAGED UNIT WEIGHT | 0.300 GRAMS |
| (NON-CORE DATA) CUBIC MEASURE | 0.001 CUBIC INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-39008/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RCR07G623JS |
Restrictions/Controls & Freight Information | NSN 5905-00-104-8360
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5905-00-104-8360
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TQ | Rechargeable batteries |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
