NSN 5905-00-080-9616 0L10S1, 0L1215346095K1, 0L1215-3460-95K1
Product Details | THERMAL RESISTOR
5905-00-080-9616 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 0L10S1, 0L1215346095K1, 0L1215-3460-95K1, 666193-330, 5905-00-080-9616, 00-080-9616, 5905000809616, 000809616, 666193330
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-080-9616 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-080-9616
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-080-9616
Technical Data | NSN 5905-00-080-9616
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 5.790 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -10.0 TO 10.0 |
| MAXIMUM OPERATING TEMP | 150.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 23.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 6.6 |
| ZERO POWER TEMP COEFFICIENT OF RESISTANCE IN PERCENT PER DEG CELSIUS | 4.43 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | -50.0 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT 0.0 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT 50.0 DEG CELSIUS 3RD RESISTANCE-TEMPERATURE POINT 75.0 DEG CELSIUS 4TH RESISTANCE-TEMPERATURE POINT 104.4 DEG CELSIUS 5TH RESISTANCE-TEMPERATURE POINT 125.0 DEG CELSIUS 6TH RESISTANCE-TEMPERATURE POINT 150.0 DEG CELSIUS 7TH RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 77.3 KILOHMS 1ST RESISTANCE-TEMPERATURE POINT 34.3 KILOHMS 2ND RESISTANCE-TEMPERATURE POINT 3.7 KILOHMS 3RD RESISTANCE-TEMPERATURE POINT 1.5 KILOHMS 4TH RESISTANCE-TEMPERATURE POINT 628.6 OHMS 5TH RESISTANCE-TEMPERATURE POINT 372.6 OHMS 6TH RESISTANCE-TEMPERATURE POINT 202.9 OHMS 7TH RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -15.0 TO 15.0 ALL RESISTANCE-TEMPERATURE POINTS |

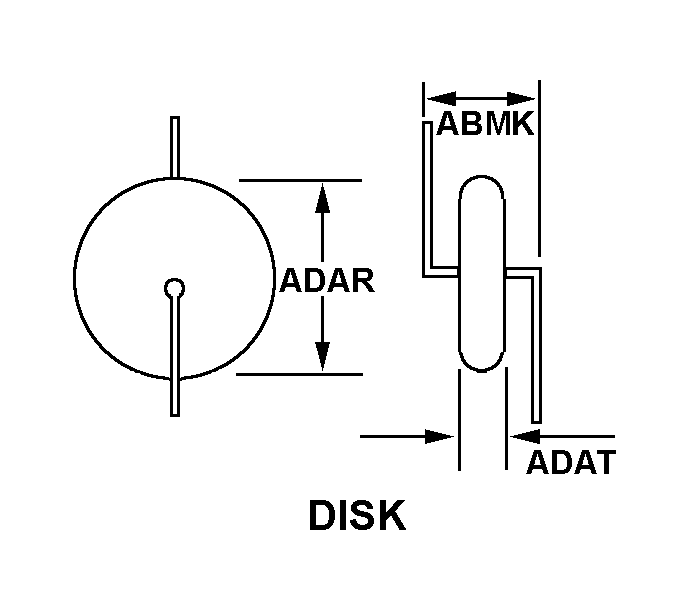

| STYLE DESIGNATOR | 45 DISK |
| OVERALL WIDTH | 0.406 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.120 INCHES NOMINAL |
| BODY WIDTH | 0.150 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 2.000 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.020 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 75263 |
| DESIGN CONTROL REFERENCE | 0L10S1 |
