NSN 5905-00-020-6816 1C9033A2D90A3, 00-020-6816, 000206816
Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-020-6816 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.
Part Alternates: 1C9033A2D90A3, 5905-00-020-6816, 00-020-6816, 5905000206816, 000206816
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-020-6816 | 37403 ( RESISTOR, FIXED, WIRE WOUND, INDUCTIVE ) |
Drawings & Photos | NSN 5905-00-020-6816
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-020-6816
Technical Data | NSN 5905-00-020-6816
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 90.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| FIXED TAP QUANTITY | 1 |
| FIXED TAP TERMINAL TYPE | TAB W/SCREW |
| SECTION NOMINAL RESISTANCE | 3.000 OHMS 87.000 OHMS |
| POWER DISSIPATION RATING IN WATTS | 280.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 415.0 |
| INCLOSURE METHOD | UNINCLOSED |

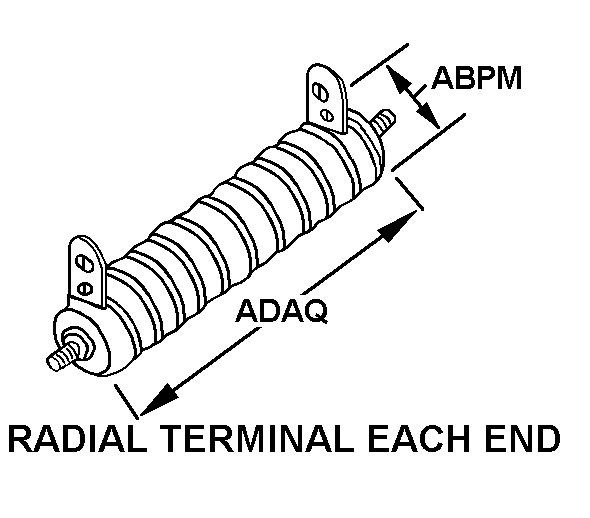

| STYLE DESIGNATOR | 98 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 2.062 INCHES MAXIMUM |
| BODY LENGTH | 6.000 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| TERMINAL LENGTH | 0.594 INCHES NOMINAL |
| TERMINAL WIDTH | 0.375 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-020-6816
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
