Product Details | WIREWOUND FIXED RESISTOR NETWORK
5905-00-019-1237 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of high resistance wire (or ribbon), usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: C600006651, K222, 5905-00-019-1237, 00-019-1237, 5905000191237, 000191237
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-019-1237 | 32069 ( RESISTOR NETWORK, FIXED, WIREWOUND ) |
Drawings & Photos | NSN 5905-00-019-1237
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-019-1237
Technical Data | NSN 5905-00-019-1237
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.500 KILOHMS 13.400 KILOHMS 3.950 KILOHMS 10.000 KILOHMS 12.080 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 1 LOWEST RESISTANCE VALUE 1 HIGHEST RESISTANCE VALUE 1 1ST INTERMEDIATE RESISTANCE VALUE 2 2ND INTERMEDIATE RESISTANCE VALUE 1 3RD INTERMEDIATE RESISTANCE VALUE |
| RESISTANCE TOLERANCE IN PERCENT | -0.050 TO 0.050 |
| POWER DISSIPATION RATING IN WATTS | NOT RATED |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 55.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 71.0 |
| INCLOSURE METHOD | HERMETICALLY SEALED |

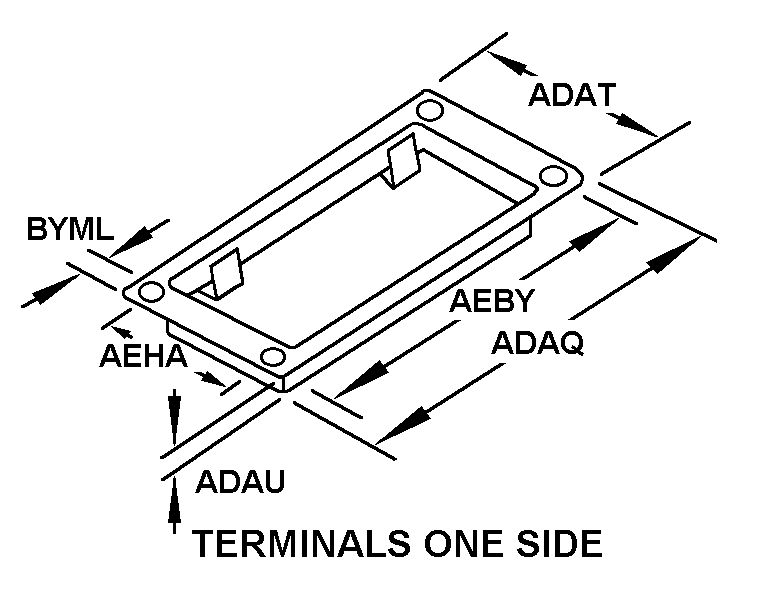

| STYLE DESIGNATOR | 158 TERMINALS ONE SIDE |
| BODY LENGTH | 2.500 INCHES NOMINAL |
| BODY WIDTH | 2.250 INCHES NOMINAL |
| BODY HEIGHT | 1.750 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.031 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.781 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.138 INCHES NOMINAL |
| TERMINAL TYPE | THREADED STUD |
| TERMINAL QUANTITY | 9 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.250 INCHES NOMINAL |
