Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR

5905-00-001-2827 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.

Part Alternates: MIL-R-26/1, MILR261, RW15V471, 5905-00-001-2827, 00-001-2827, 5905000012827, 000012827

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 24 SEP 1972 00-001-2827

Drawings & Photos | NSN 5905-00-001-2827


Cross Reference | NSN 5905-00-001-2827

Part Number Cage Code Manufacturer
MIL-R-26/1 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RW15V471 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5905-00-001-2827

Technical Data | NSN 5905-00-001-2827

Characteristic Specifications
ELECTRICAL RESISTANCE 470.000 OHMS
RESISTANCE TOLERANCE IN PERCENT -5.000 TO 5.000
POWER DISSIPATION RATING IN WATTS 29.000 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER 25.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 350.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS -260.0 TO 260.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS -55.0 TO 350.0
INCLOSURE METHOD ENCAPSULATED

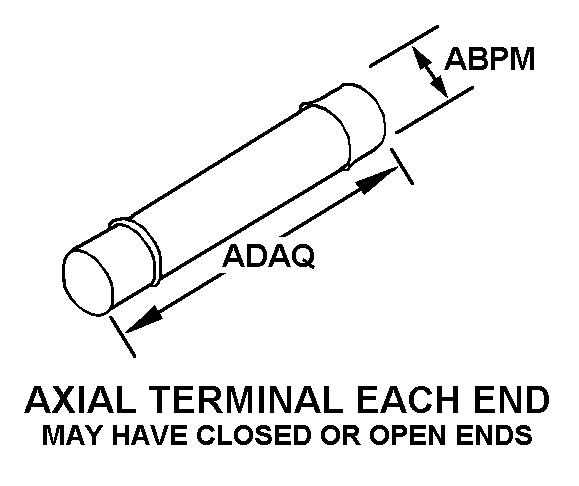

STYLE DESIGNATOR 97 AXIAL TERMINAL EACH END
BODY DIAMETER 0.438 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
BODY LENGTH 2.751 INCHES MINIMUM AND 3.125 INCHES MAXIMUM
TERMINAL TYPE FERRULE
RELIABILITY INDICATOR NOT ESTABLISHED
TERMINAL LENGTH 0.438 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
TEST DATA DOCUMENT 81349-MIL-R-26 SPECIFICATION
SPECIFICATION/STANDARD DATA 81349-MIL-R-26/1 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-R-26/1
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE RW15V471
