NSN 5895-01-506-5533 19015614, 19-0156-14, 7010218
Product Details | INTERFACE CONTROL
5895-01-506-5533 A control that connects two dissimilar items and/or functions in a system/subsystem, providing compatability of signal levels. May be used for interconnecting the following type of items/functions: digital signals, demodulations, signal mixing, cursor formatting, and/or information bridging between data input and processor and/or processor and data output.
Part Alternates: 19015614, 19-0156-14, 7010218, 5895-01-506-5533, 01-506-5533, 5895015065533, 015065533
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 02 APR 2003 | 01-506-5533 | 41864 ( CONTROL, INTERFACE ) |

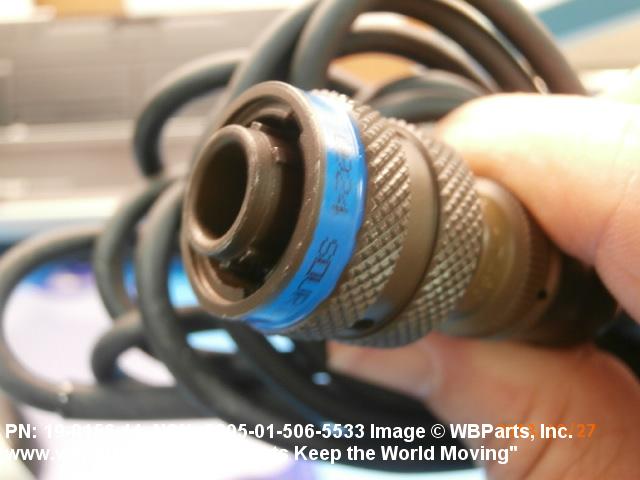

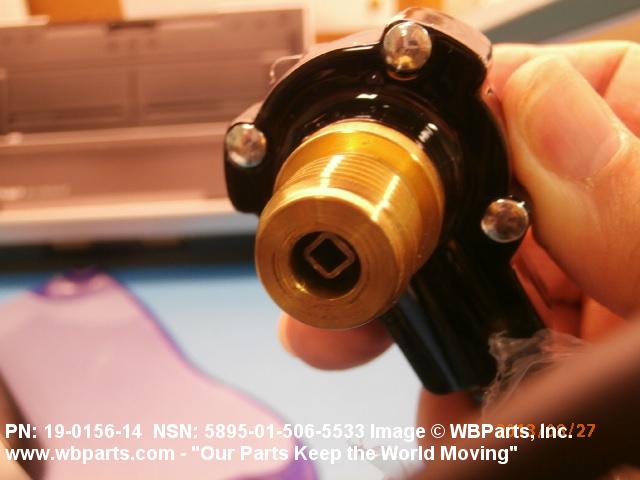

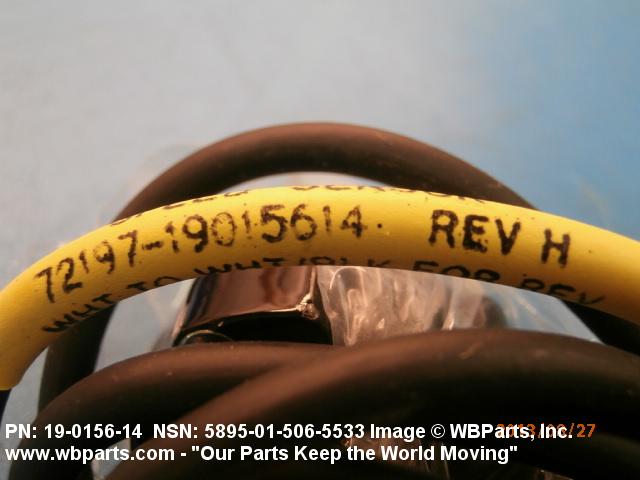

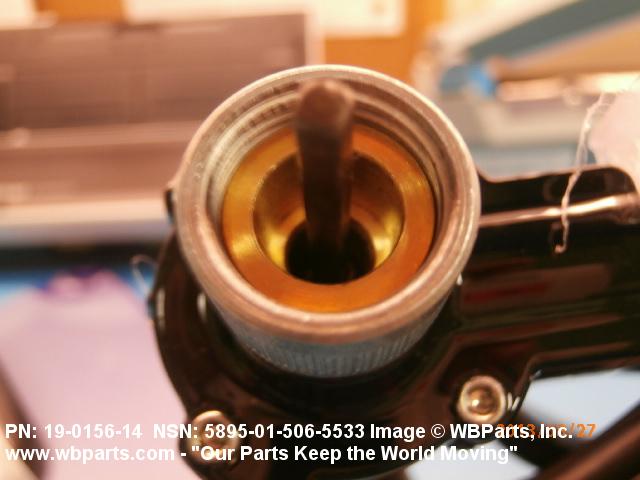

Drawings & Photos | NSN 5895-01-506-5533
Demand History | NSN 5895-01-506-5533
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 19-0156-14 | 2021-05-136 | 8 | DIBBS |
| 19-0156-14 | 2021-01-19 | 8 | DIBBS |
| 19-0156-14 | 2020-09-268 | 24 | DIBBS |
| 19-0156-14 | 2020-09-251 | 25 | DIBBS |
| 19-0156-14 | 2020-07-203 | 8 | DIBBS |
| 19-0156-14 | 2020-06-175 | 8 | DIBBS |
| 19-0156-14 | 2020-06-155 | 15 | DIBBS |
| 19-0156-14 | 2020-01-08 | 36 | DIBBS |
| 19-0156-14 | 2019-12-337 | 7 | DIBBS |
| 19-0156-14 | 2019-11-318 | 2 | DIBBS |
| 19-0156-14 | 2019-10-283 | 5 | DIBBS |
| 19-0156-14 | 2019-09-251 | 11 | DIBBS |
| 19-0156-14 | 2019-07-209 | 7 | DIBBS |
| 19-0156-14 | 2019-05-128 | 7 | DIBBS |
| 5895-01-506-5533 | 2018-02-37 | 6 | DIBBS |
| 5895-01-506-5533 | 2018-01-10 | 6 | DIBBS |
| 5895-01-506-5533 | 2017-11-317 | 52 | DIBBS |
| 5895-01-506-5533 | 2017-10-283 | 17 | DIBBS |
| 5895-01-506-5533 | 2017-10-276 | 20 | DIBBS |
| 5895-01-506-5533 | 2017-09-249 | 15 | DIBBS |
| 5895-01-506-5533 | 2016-11-313 | 59 | DIBBS |
| 5895-01-506-5533 | 2016-01-06 | 30 | DIBBS |
| 5895-01-506-5533 | 2015-10-301 | 14 | DIBBS |
| 5895-01-506-5533 | 2015-08-221 | 15 | DIBBS |
| 5895-01-506-5533 | 2015-07-200 | 14 | DIBBS |
| 5895-01-506-5533 | 2015-05-145 | 15 | DIBBS |
| 5895-01-506-5533 | 2014-10-275 | 30 | DIBBS |
| 5895-01-506-5533 | 2014-02-44 | 21 | DIBBS |
| 5895-01-506-5533 | 2014-02-36 | 21 | DIBBS |
| 5895-01-506-5533 | 2013-04-120 | 2 | Taiwan |
| 5895-01-506-5533 | 2012-11-317 | 35 | DIBBS |
| 5895-01-506-5533 | 2010-12-361 | 82 | DIBBS |
| 5895-01-506-5533 | 2010-10-280 | 26 | DIBBS |
| 5895-01-506-5533 | 2010-05-121 | 10 | DIBBS |
| 5895-01-506-5533 | 2009-11-334 | 25 | DIBBS |
| 5895-01-506-5533 | 2009-08-225 | 19 | DIBBS |
| 5895-01-506-5533 | 2009-07-209 | 23 | DIBBS |
| 5895-01-506-5533 | 2009-07-187 | 2 | DIBBS |
| 5895-01-506-5533 | 2009-06-175 | 17 | DIBBS |
| 5895-01-506-5533 | 2009-03-89 | 33 | DIBBS |
| 5895-01-506-5533 | 2009-03-61 | 10 | DIBBS |
| 5895-01-506-5533 | 2009-02-33 | 2 | DIBBS |
| 5895-01-506-5533 | 2008-01-08 | 4 | DIBBS |
| 5895-01-506-5533 | 2007-09-248 | 7 | DIBBS |
| 5895-01-506-5533 | 2007-08-233 | 9 | DIBBS |
| 5895-01-506-5533 | 2007-08-227 | 14 | DIBBS |
| 5895-01-506-5533 | 2007-05-130 | 34 | DIBBS |
| 5895-01-506-5533 | 2007-03-67 | 34 | DIBBS |
| 5895-01-506-5533 | 2006-04-108 | 9 | DIBBS |
| 5895-01-506-5533 | 2006-02-55 | 7 | DIBBS |
| 5895-01-506-5533 | 2006-02-37 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5895-01-506-5533
Related Products | NSN 5895-01-506-5533
Technical Data | NSN 5895-01-506-5533
| Characteristic | Specifications |
|---|---|
| POWER SOURCE | EXTERNAL |
| TERMINAL LOCATION | END |
| INCLOSURE TYPE | ENCASED |
| MAXIMUM OVERALL LENGTH | 171.000 INCHES |
| MAXIMUM OVERALL WIDTH | 1.600 INCHES |
| MAXIMUM OVERALL HEIGHT | 2.800 INCHES |
| III END ITEM IDENTIFICATION | 2350-01-081-8138 |
| MANUFACTURERS CODE | 0MLM6 |
| MFR SOURCE CONTROLLING REFERENCE | 7010218 |
Restrictions/Controls & Freight Information | NSN 5895-01-506-5533
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5895-01-506-5533
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | H | Reparable item. When uneconomically reparable, condemn and dispose at fourth echelon level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
