NSN 5895-01-466-7407 AN/APX-100, ANAPX100, 40707800503
Product Details | TRANSPONDER SET
5895-01-466-7407 A fixed number of electronic components and/or items, not all having the same basic name which receive an interrogation signal, and which retransmit coded signals which can be interpreted by the interrogating station. May exclude certain operating components supplied separately or already present at the point of usage.20614200025Guided Missile Components58110042Other Cryptologic Equipment and Components58250043Radio Navigation Equipment, Except Airborne58260036Radio Navigation Equipment, Airborne58650091Electronic Countermeasures, Counter-Countermeasures and Quick Reaction Capability Equipment58950037Miscellaneous Communication Equipment
Part Alternates: AN/APX-100, ANAPX100, 40707800503, 4070780-0503, 5895-01-466-7407, 01-466-7407, 5895014667407, 014667407
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 29 JUL 1999 | 01-466-7407 | 06864 ( TRANSPONDER SET ) |

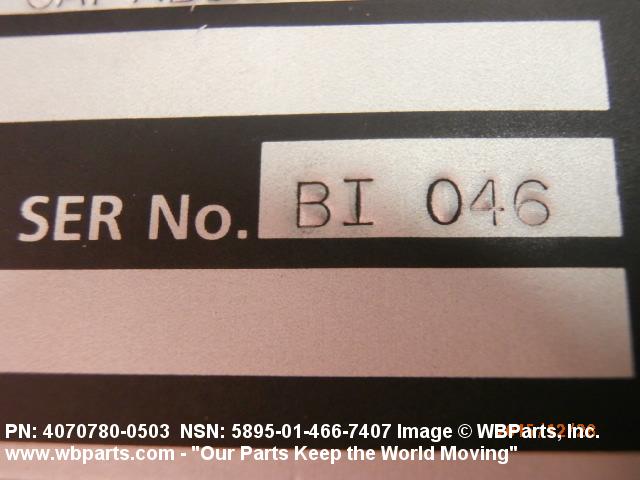

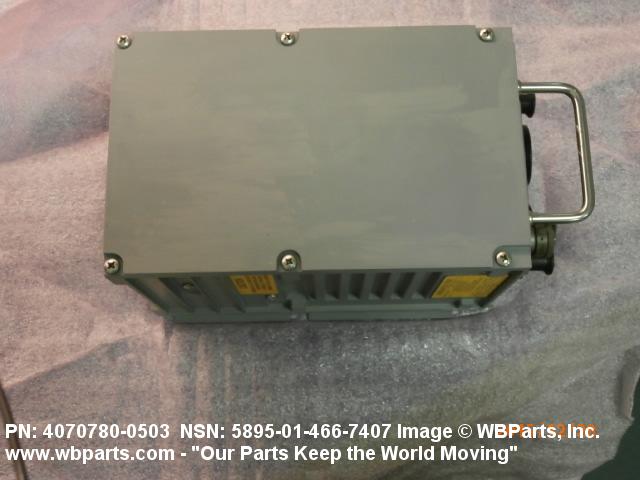

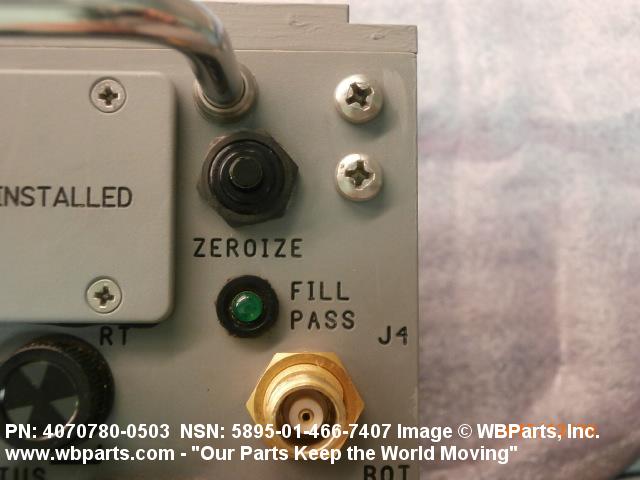

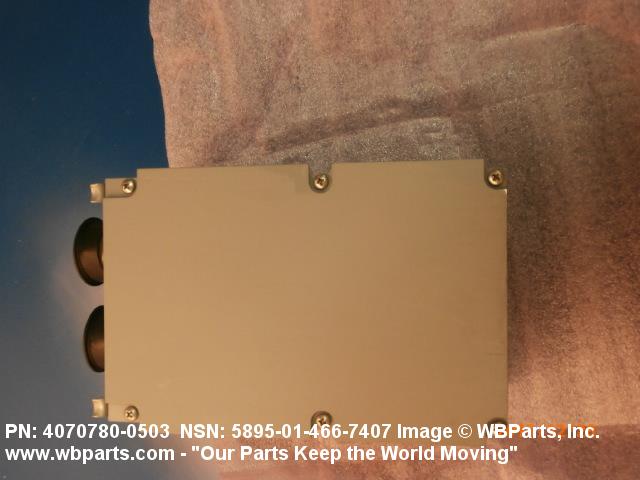

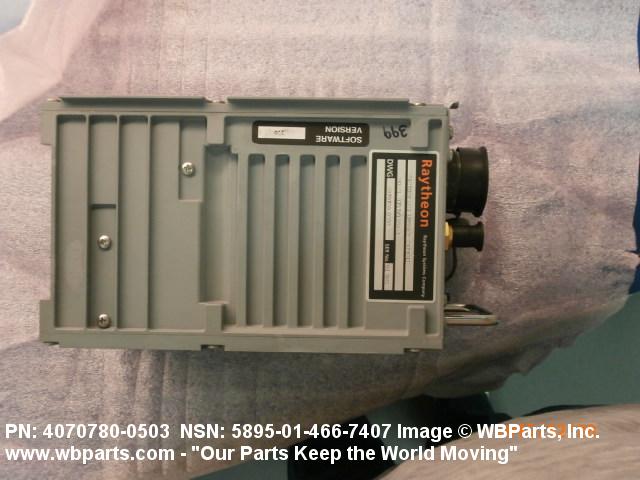

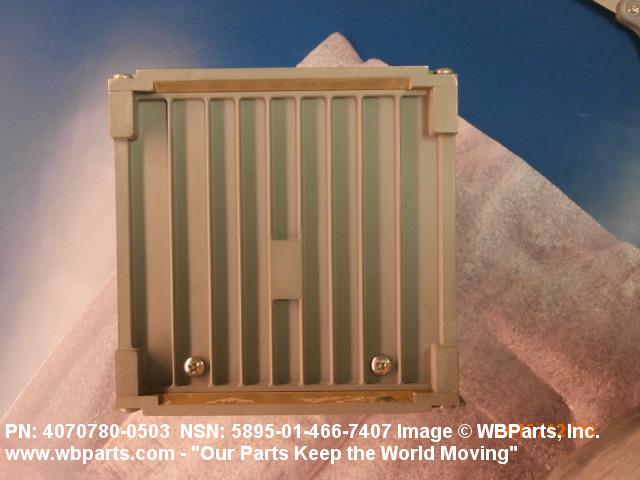

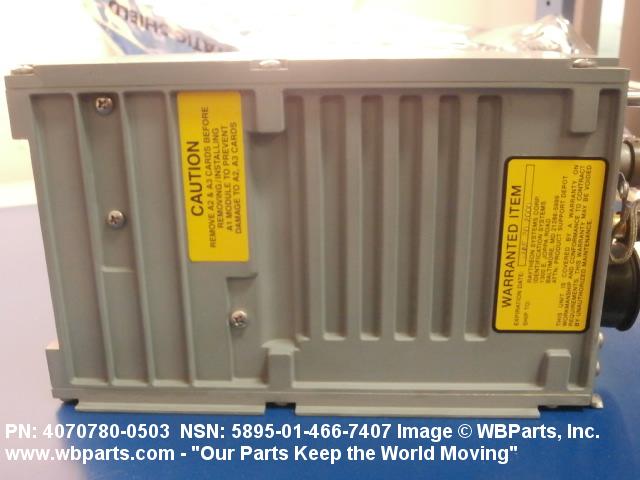

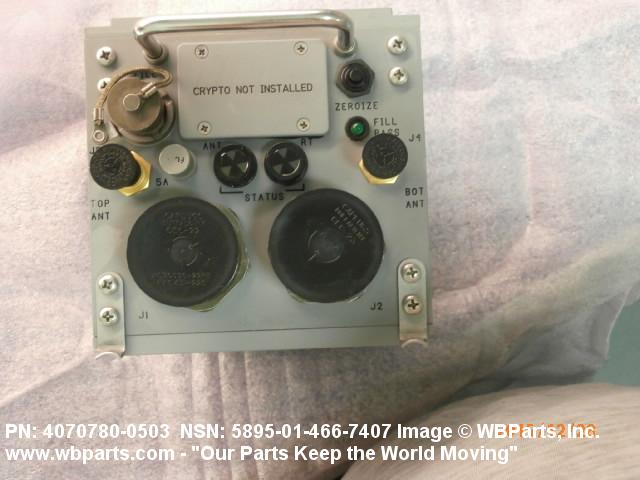

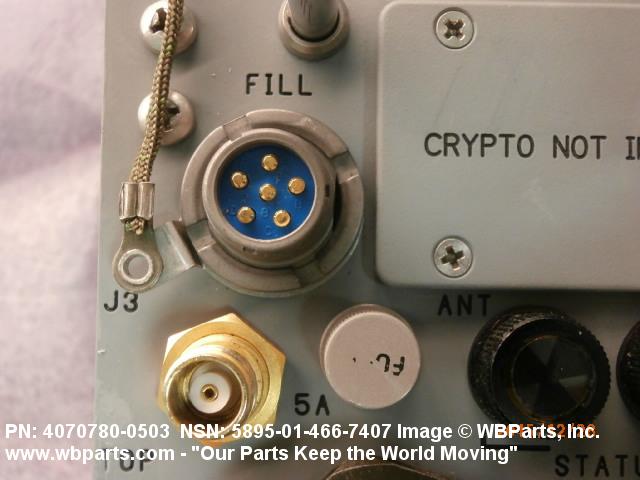

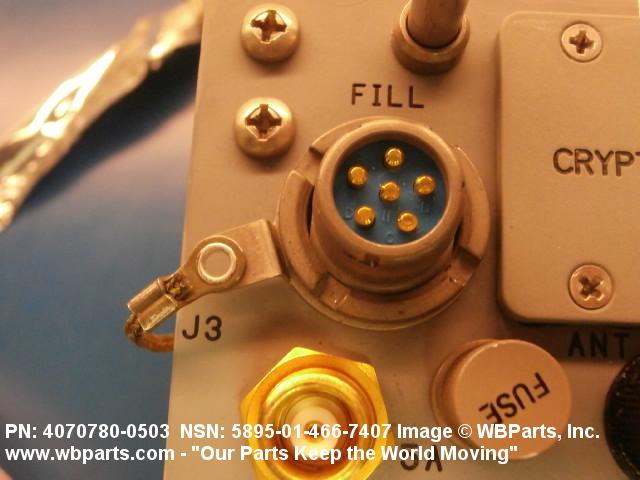

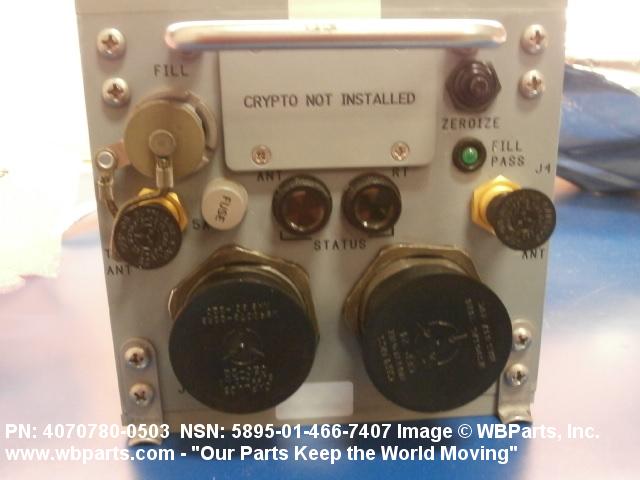

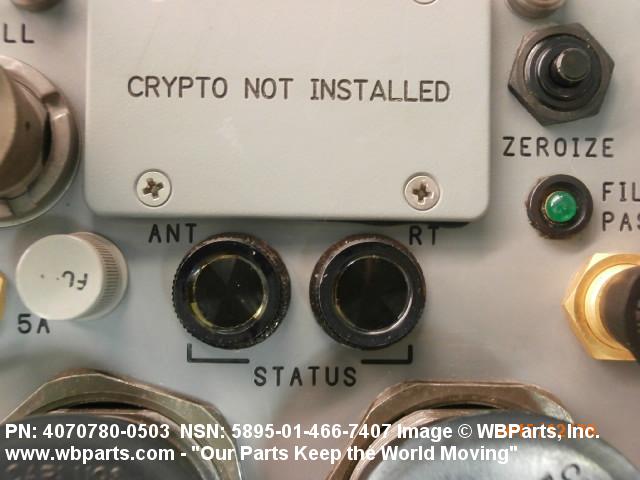

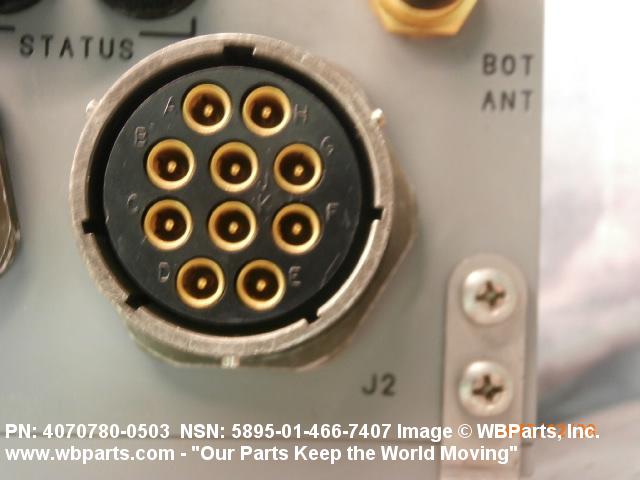

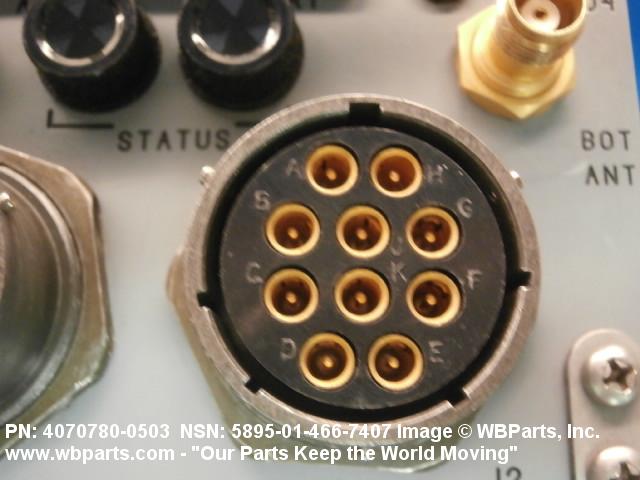

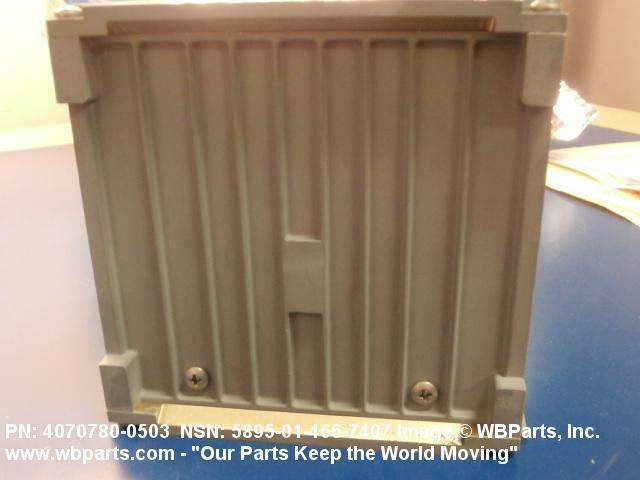

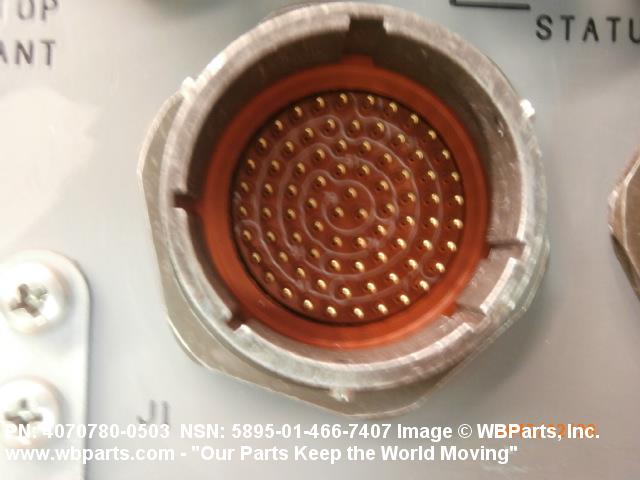

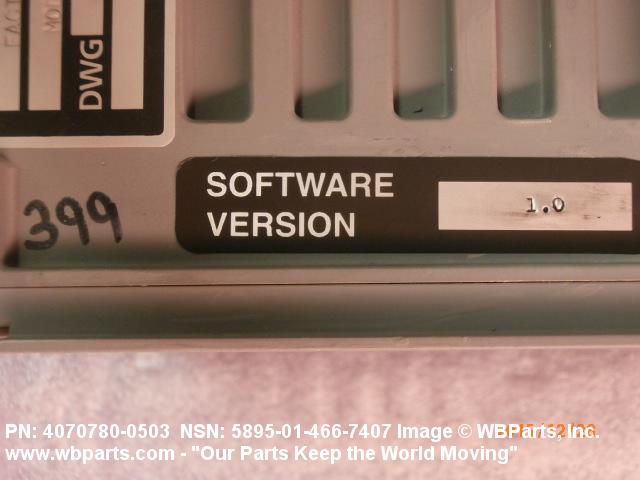

Drawings & Photos | NSN 5895-01-466-7407
Demand History | NSN 5895-01-466-7407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5895-01-466-7407 | 2015-05-126 | 1 | United States |
| 5895-01-466-7407 | 2015-03-79 | 2 | us |
| 5895-01-466-7407 | 2015-03-69 | 2 | United States |
| 5895-01-466-7407 | 2015-02-55 | 2 | United States |
| ANAPX100 | 2009-10-280 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5895-01-466-7407
Technical Data | NSN 5895-01-466-7407
| Characteristic | Specifications |
|---|---|
| TRANSMITTED SIGNAL FREQUENCY RATING | 1089.5 MEGAHERTZ MINIMUM AND 1090.5 MEGAHERTZ MAXIMUM |
| RECEIVED SIGNAL FREQUENCY RATING | 1029.5 MEGAHERTZ MINIMUM AND 1030.5 MEGAHERTZ MAXIMUM |
| OVERALL WIDTH | 5.375 INCHES NOMINAL |
| OVERALL HEIGHT | 5.375 INCHES NOMINAL |
| OVERALL DEPTH | 8.375 INCHES NOMINAL |
| SPECIAL FEATURES | PRIMARY INPUT VOLTAGE IS 18 TO 30 VDC; INPUT POWER 30 WATTS NOMINAL; PEAK POWER OUTPUT 500.0 WATTS PLUS OR MINUS 3 DB; TRANSMIT DUTY CYCLE 1.0 PERCENT MAXIMUM; RECEIVER BANDWIDTH 7 MHZ, 6 DB DOWN, PLUS OR MINUS 22 MHZ, 90 DB DOWN; SENSITIVITY (MTL) MINUS 77 DBM EACH CHANNEL; DYNAMIC RANGE 55 DB MINIMUM; TEMPERATURE RANGE REMOTE, MINUS 54 TO PLUS 95 DEG C, CLASS II; ELECTROMAGNETIC COMPATIBILITY PER MIL-STD-461; EQUIPMENT SPECIFICATION MIL-R-81876 WITH APPENDIX II FOR MODE S |
| III USAGE DESIGN | IDENTIFICATION |
| III TYPE/MODEL DESIGNATION | AN/APX-100 MARK XII / MODE S IFF TRANSPONDER |
Restrictions/Controls & Freight Information | NSN 5895-01-466-7407
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
