NSN 5895-01-448-6120 M24728/2-005, M24728/2-006, M247282005
Product Details | INTERCONNECTING BOX
5895-01-448-6120 An inclosure which includes mounts and protects such items as switches, circuit breakers, jacks, fuseholders, connectors, terminals and/or terminal boards, resistors, capacitors, transformers, and the like. It is primarily designed to interconnect two or more electrical and/or electronic items, except primary power source(s) such as generator(s) and battery(ies). It may include a cover or door. For inclosures which connect one or more primary power source(s) to one or more electrical and/or electronic item(s), see DISTRIBUTION BOX. See also CIRCUIT BREAKER BOX; TERMINAL BOX and INTERCONNECTING CABINET.20549200058Aircraft Maintenance and Repair Shop Specialized Equipment58950037Miscellaneous Communication Equipment59750032Electrical Hardware and Supplies60990036Miscellaneous Fiber Optic Components66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: M24728/2-005, M24728/2-006, M247282005, M247282006, MIL-I-24728/2B, MILI247282B, 5895-01-448-6120, 01-448-6120, 5895014486120, 014486120
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 04 SEP 1997 | 01-448-6120 | 07849 ( INTERCONNECTING BOX ) |

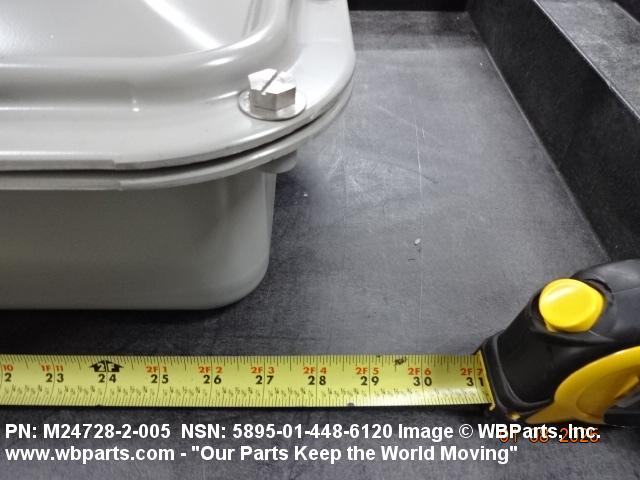

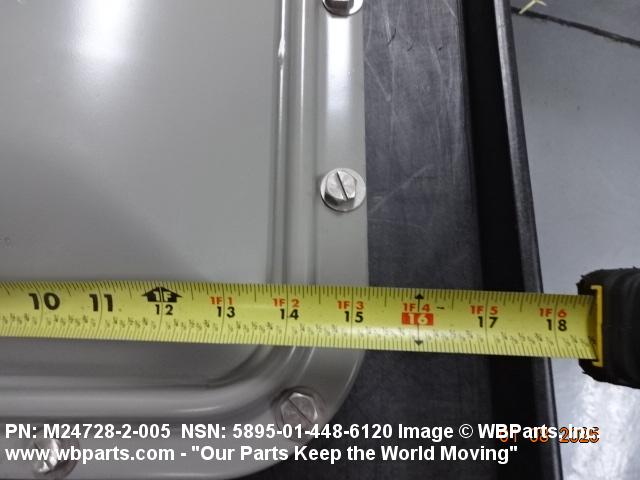

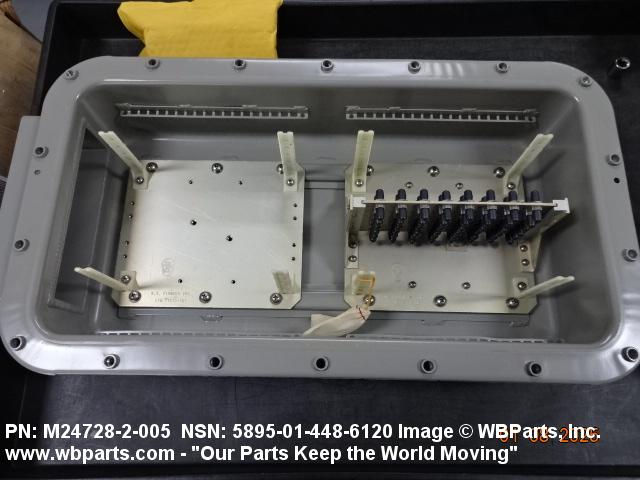

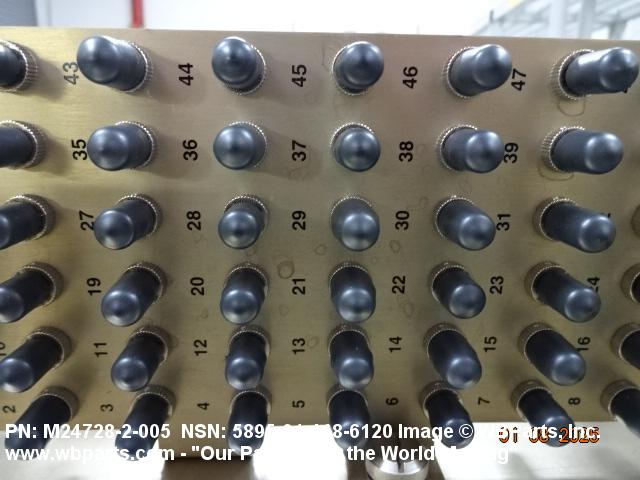

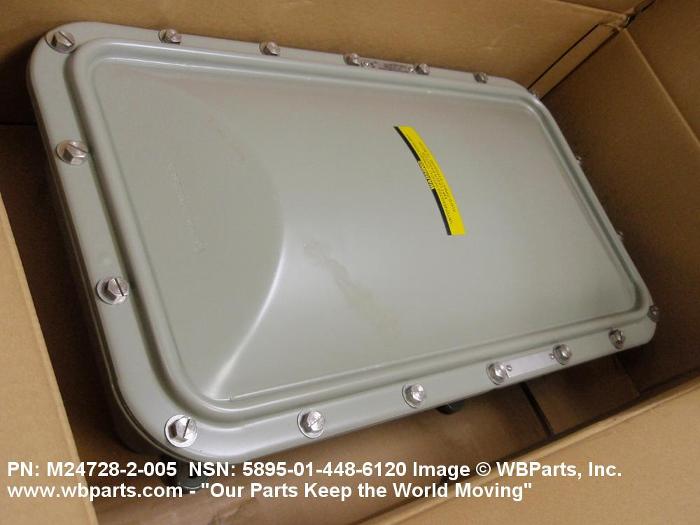

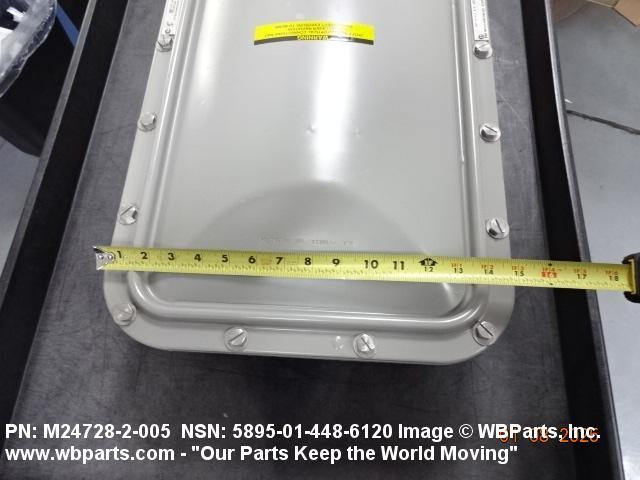

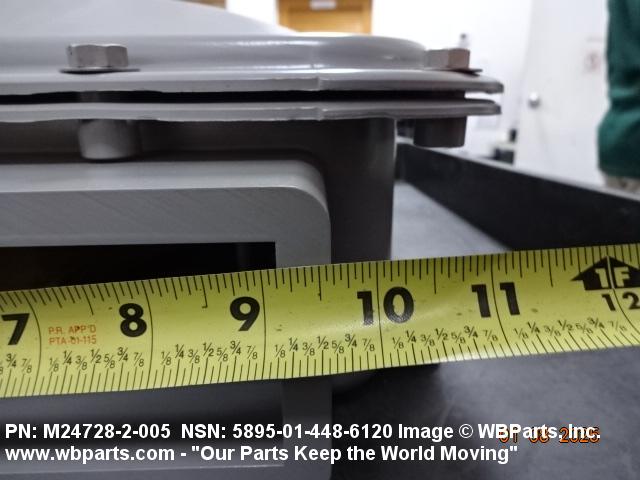

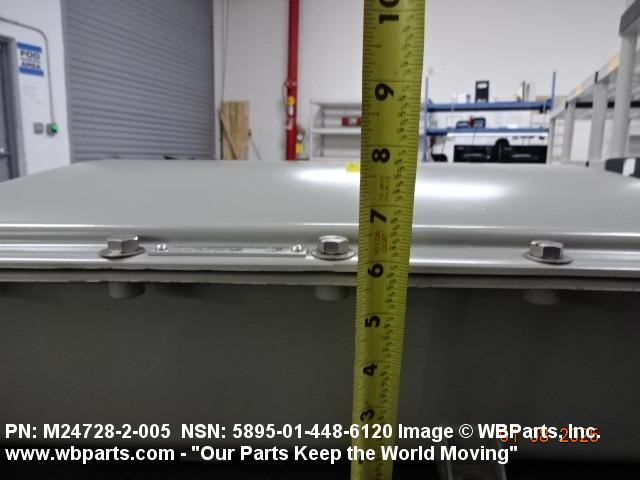

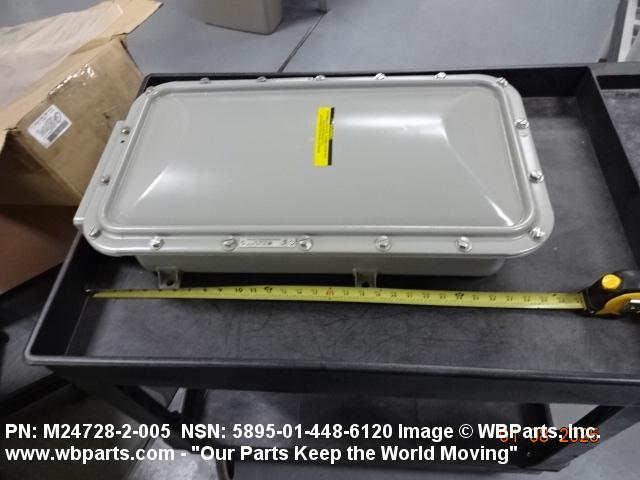

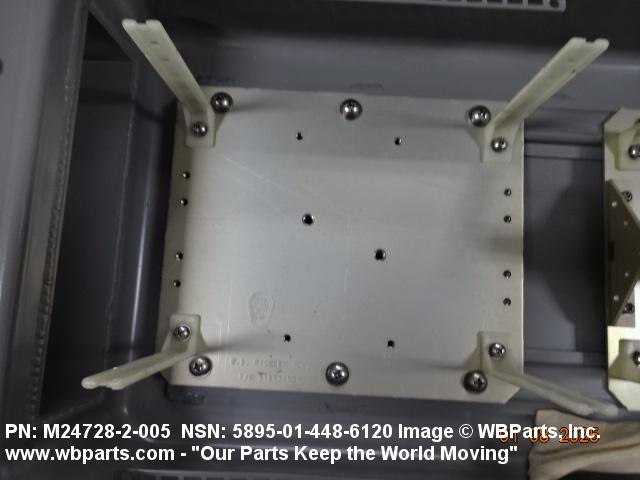

Drawings & Photos | NSN 5895-01-448-6120
Demand History | NSN 5895-01-448-6120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5895-01-448-6120 | 2024-12-348 | 1 | US |
| M247282005 | 2024-12-348 | 1 | US |
| M247282005 | 2024-12-348 | 2 | US |
| 5895-01-448-6120 | 2024-09-270 | 2 | US |
| M247282005 | 2024-09-250 | 2 | US |
| 5895-01-448-6120 | 2024-04-105 | 3 | DIBBS |
| 5895-01-448-6120 | 2024-03-86 | 2 | US |
| 5895-01-448-6120 | 2024-02-37 | 2 | US |
| 5895-01-448-6120 | 2023-07-205 | 3 | DIBBS |
| 5895-01-448-6120 | 2023-07-197 | 3 | DIBBS |
| 5895-01-448-6120 | 2022-11-325 | 15 | DIBBS |
| 5895-01-448-6120 | 2022-11-312 | 15 | DIBBS |
| M247282006 | 2022-05-133 | 1 | United States |
| 5895-01-448-6120 | 2022-04-97 | 1 | US |
| 5895-01-448-6120 | 2022-03-63 | 5 | US |
| 5895-01-448-6120 | 2021-11-333 | 4 | DIBBS |
| 5895-01-448-6120 | 2021-11-322 | 4 | DIBBS |
| 5895-01-448-6120 | 2021-09-270 | 1 | United States |
| 5895-01-448-6120 | 2021-05-136 | 5 | DIBBS |
| M247282005 | 2021-04-104 | 1 | United States |
| M247282005 | 2021-04-91 | 1 | United States |
| M247282005 | 2021-04-91 | 2 | United States |
| 5895-01-448-6120 | 2021-01-19 | 1 | GU |
| 5895-01-448-6120 | 2020-11-317 | 4 | DIBBS |
| 5895-01-448-6120 | 2020-11-309 | 4 | DIBBS |
| 5895-01-448-6120 | 2020-02-57 | 1 | United States |
| 5895-01-448-6120 | 2020-01-16 | 5 | DIBBS |
| 5895-01-448-6120 | 2020-01-08 | 5 | DIBBS |
| 5895-01-448-6120 | 2019-04-98 | 7 | DIBBS |
| 5895-01-448-6120 | 2018-06-156 | 14 | DIBBS |
| M247282005 | 2018-06-152 | 6 | US |
| 5895-01-448-6120 | 2018-05-133 | 19 | DIBBS |
| 5895-01-448-6120 | 2018-02-42 | 19 | DIBBS |
| 5895-01-448-6120 | 2017-10-275 | 3 | US |
| M247282005 | 2015-12-341 | 1 | United States |
| 5895-01-448-6120 | 2015-07-210 | 7 | DIBBS |
| 5895-01-448-6120 | 2013-03-86 | 4 | DIBBS |
| M247282005 | 2012-07-213 | 1 | US |
| M247282006 | 2012-07-213 | 1 | US |
| MILI247282B | 2012-07-213 | 1 | US |
| 5895-01-448-6120 | 2012-07-209 | 6 | US |
| M247282005 | 2011-10-287 | 2 | US |
| M247282005 | 2011-03-90 | 2 | United States |
| 5895-01-448-6120 | 2011-03-89 | 1 | United States |
| 5895-01-448-6120 | 2010-01-26 | 4 | US |
| 5895-01-448-6120 | 2009-11-322 | 20 | US |
| 5895-01-448-6120 | 2009-02-47 | 1 | US |
| M247282005 | 2008-08-225 | 2 | US |
| 5895-01-448-6120 | 2008-03-85 | 2 | United States |
| 5895-01-448-6120 | 2007-04-95 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5895-01-448-6120
Technical Data | NSN 5895-01-448-6120
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 195.0 MILLIMETERS MAXIMUM |

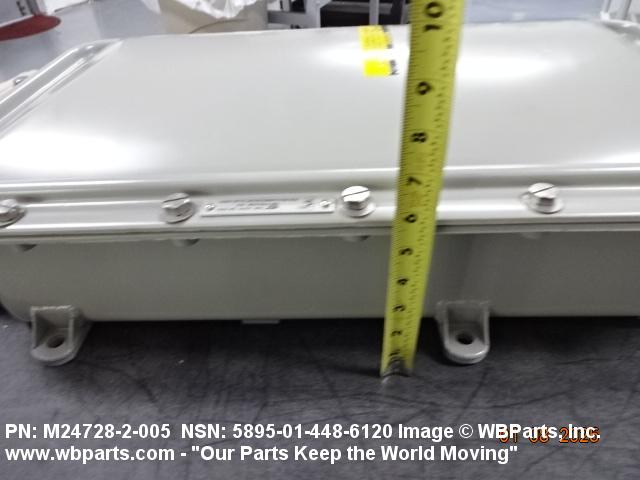

| OVERALL HEIGHT | 737.0 MILLIMETERS MAXIMUM |
| OVERALL WIDTH | 419.0 MILLIMETERS MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | COATING, EPOXY-POLYAMIDE, MIL-C-22750, TYPE 3 |

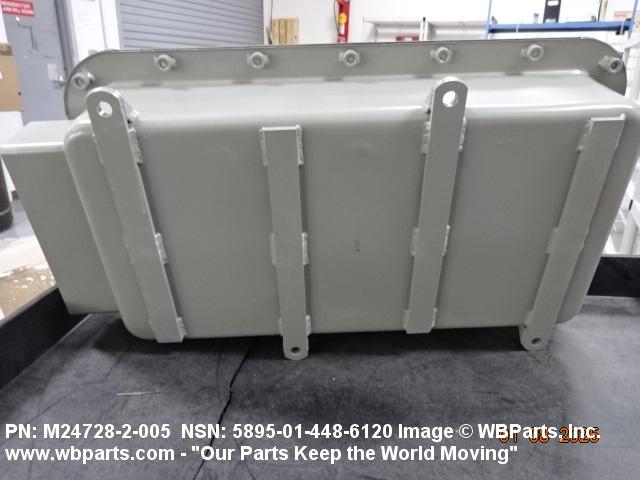

| MOUNTING METHOD | UNTHREADED HOLE |

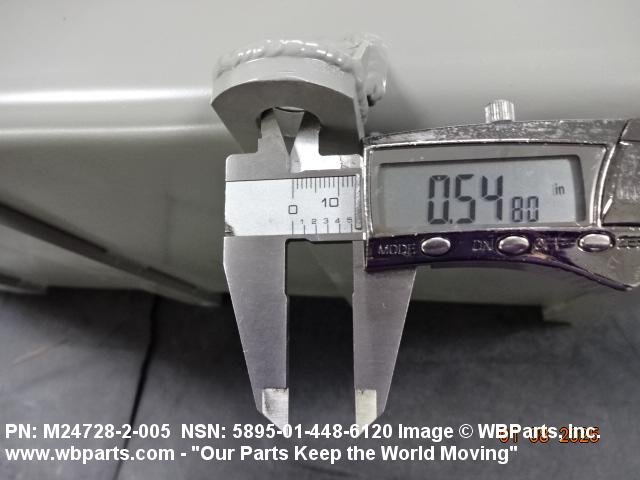

| UNTHREADED MOUNTING HOLE DIAMETER | 12.7 MILLIMETERS NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-24728/2B |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24728/2-005 |
Restrictions/Controls & Freight Information | NSN 5895-01-448-6120
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5895-01-448-6120
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
