NSN 5895-01-056-4553 010564553
Product Details | AUDIO FREQUENCY AMPLIFIER
5895-01-056-4553 An electronic device whose audio frequency input signals control power from a source independant of the input signal and delivers audio frequency output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It operates at frequencies of 20 kilohertzs and below. It may or may not have signal switching capabilities.
Part Alternates: 010564553
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01-056-4553 | 00511 ( AMPLIFIER, AUDIO FREQUENCY ) |

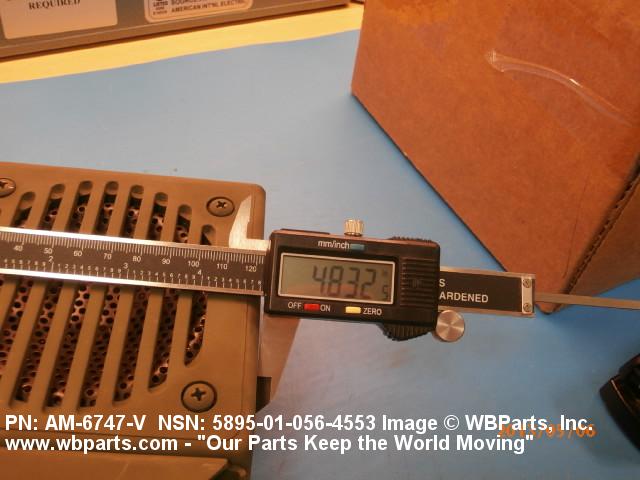

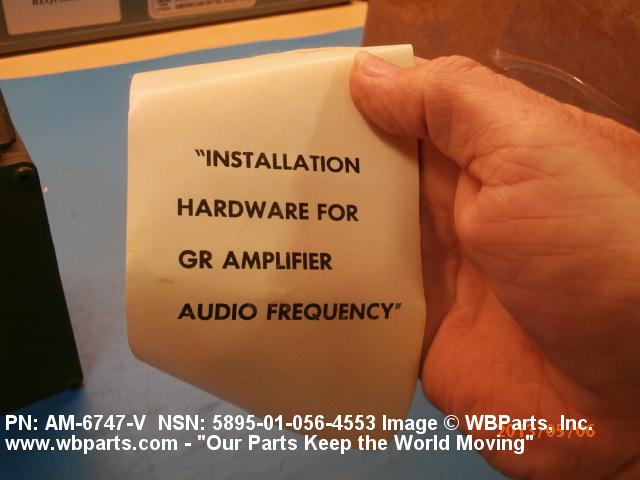

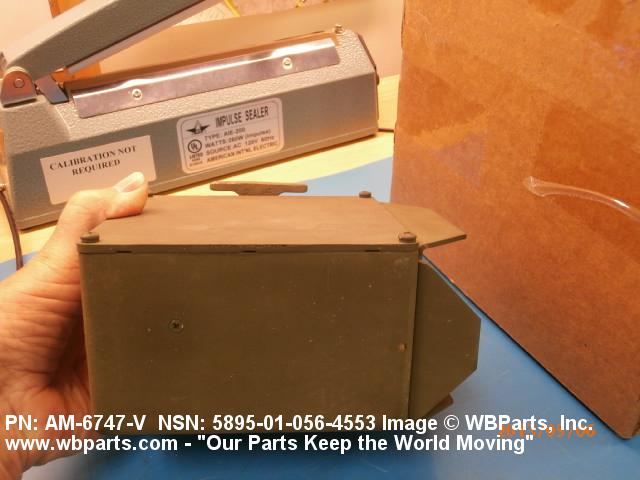

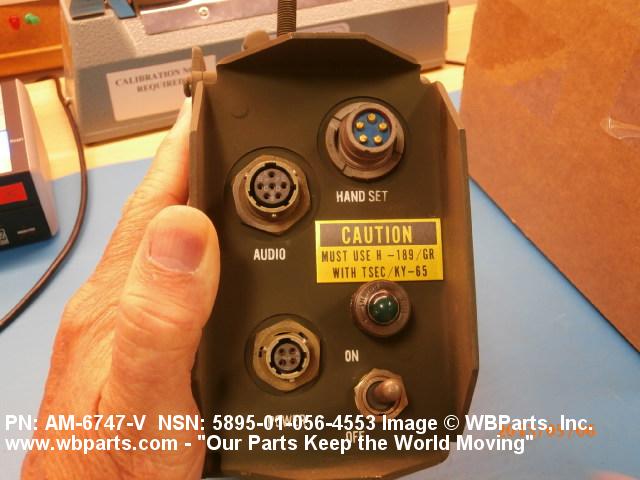

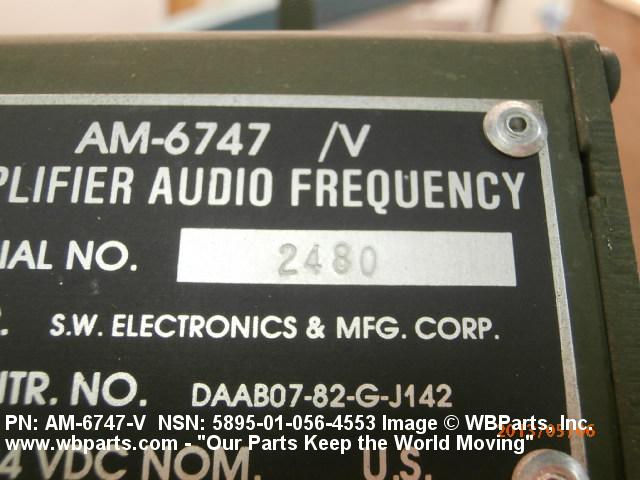

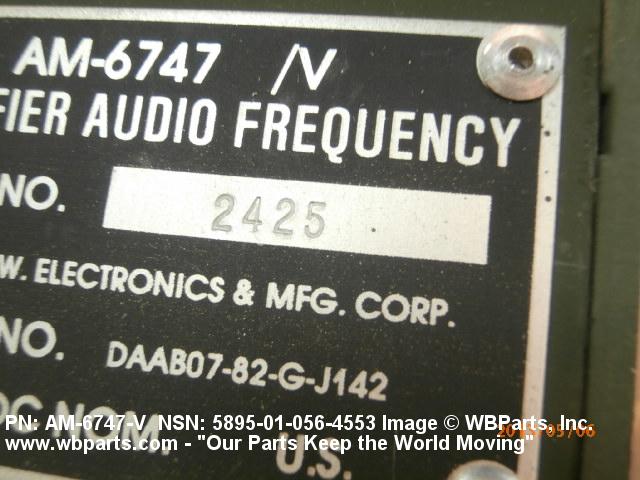

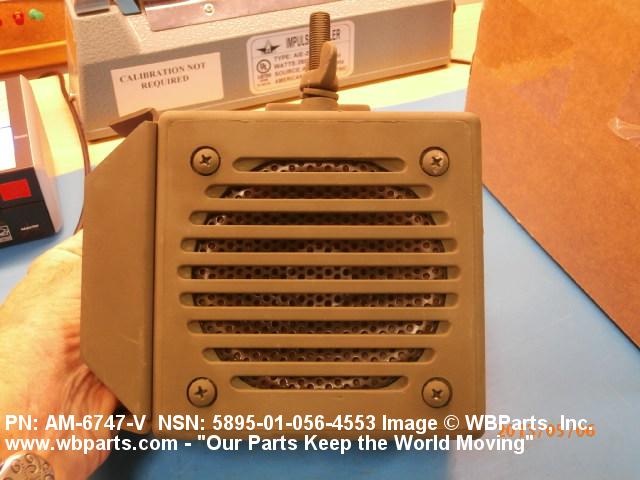

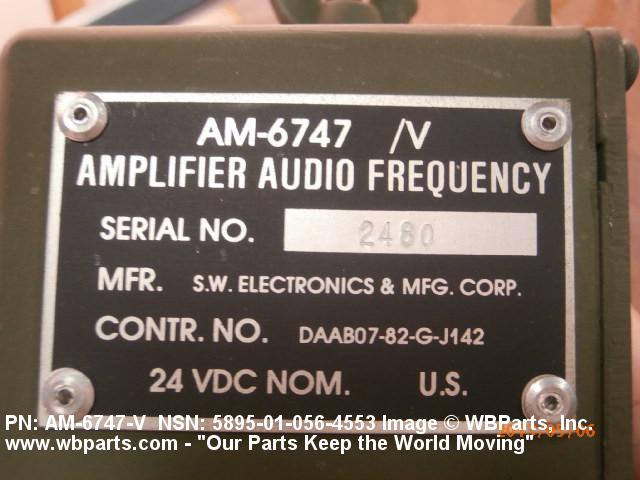

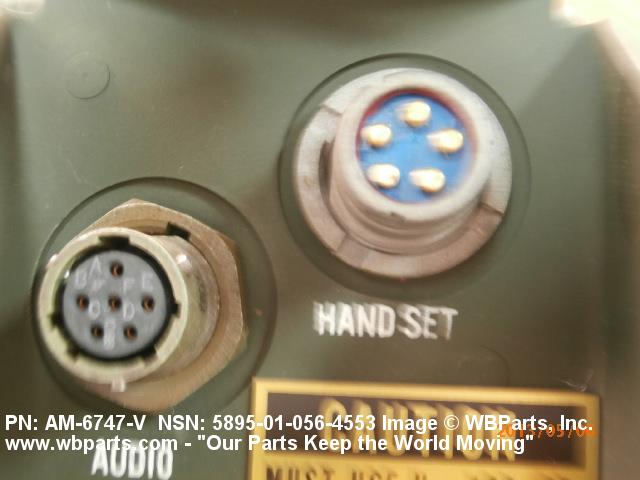

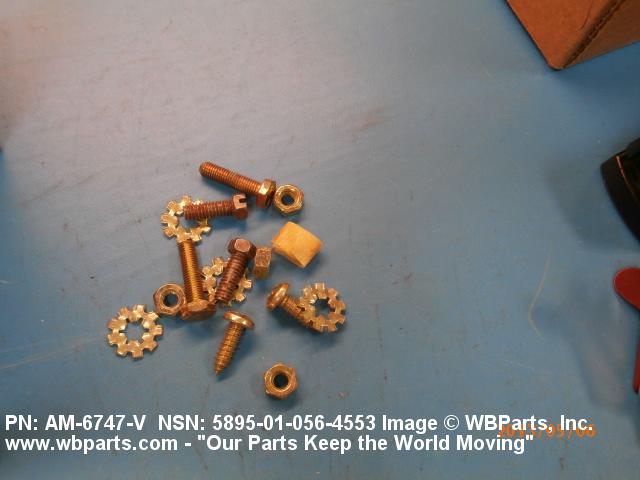

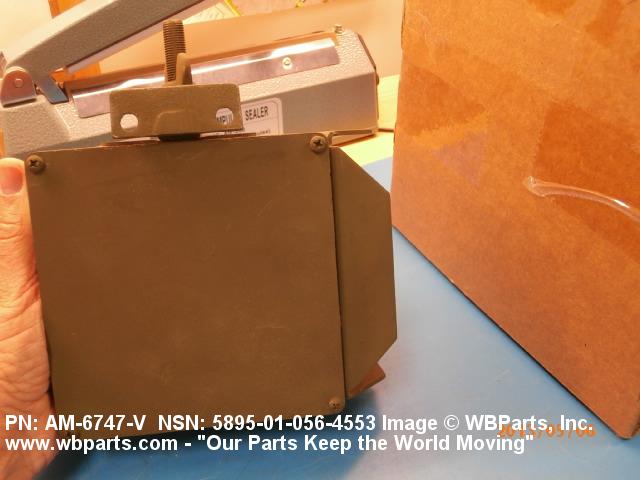

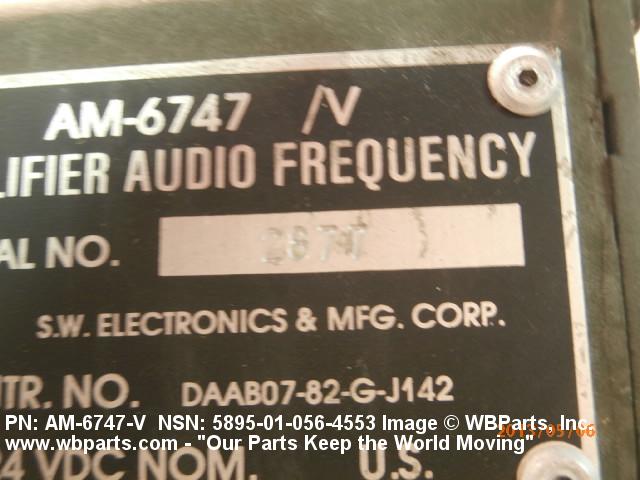

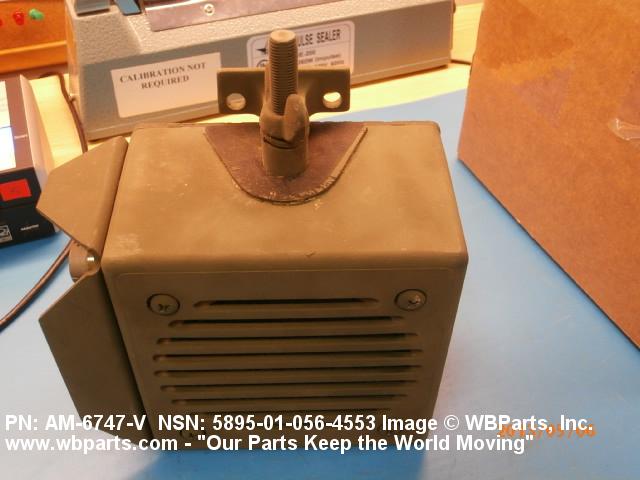

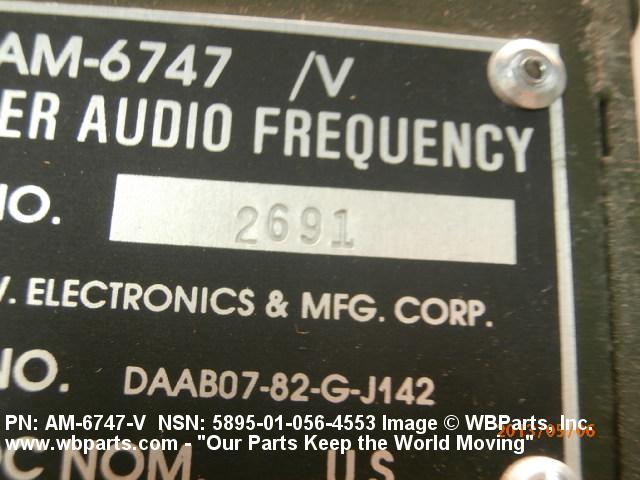

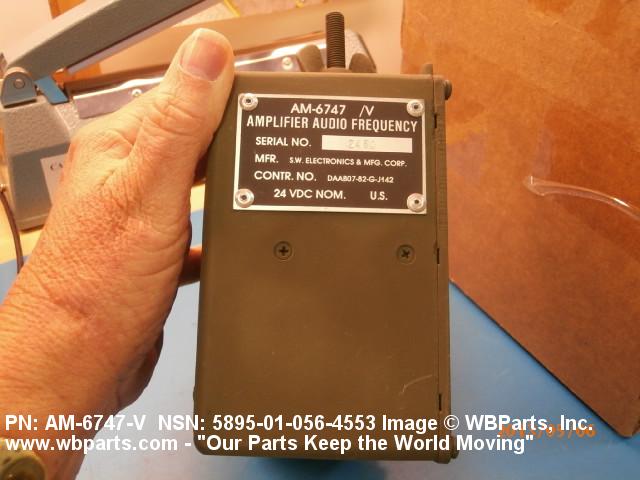

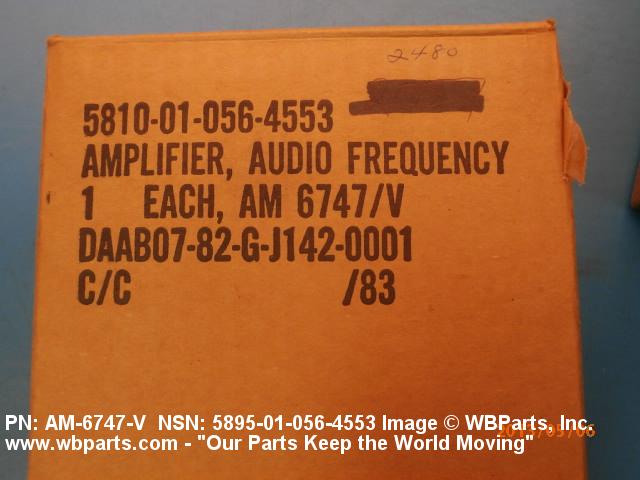

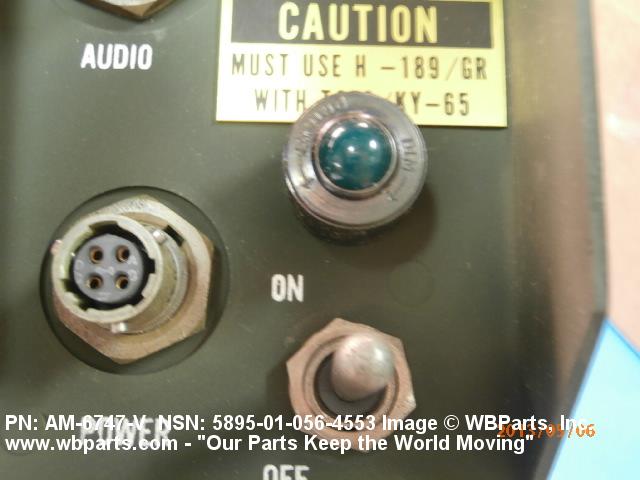

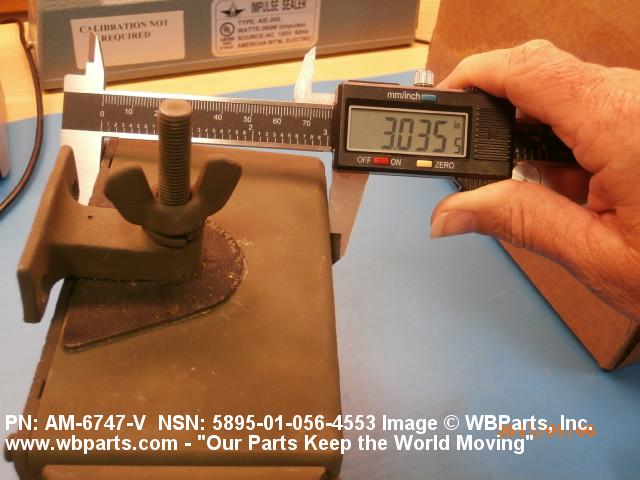

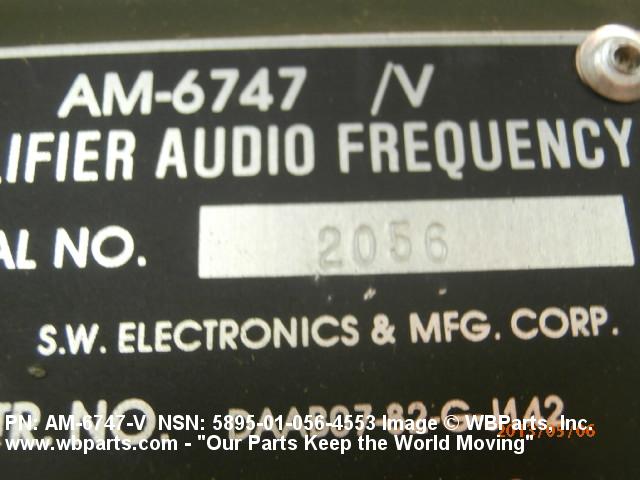

Drawings & Photos | NSN 5895-01-056-4553
Demand History | NSN 5895-01-056-4553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AM6747V | 2019-03-63 | 20 | United States |
| AM6747V | 2018-12-337 | 13 | United States |
| AM6747V | 2018-01-09 | 16 | US |
| AM6747V | 2018-01-05 | 16 | United States |
| AM6747V | 2017-06-171 | 13 | United States |
| AM6747V | 2017-01-26 | 5 | United States |
| AM6747V | 2016-11-312 | 3 | United States |
| AM6747V | 2016-04-104 | 18 | United States |
| AM6747V | 2015-07-202 | 38 | United States |
| AM6747V | 2015-07-202 | 52 | United States |
| AM6747V | 2015-07-202 | 60 | United States |
| AM6747V | 2014-10-287 | 14 | United States |
| 5895-01-056-4553 | 2014-05-150 | 6 | United States |
| 5895-01-056-4553 | 2014-05-150 | 8 | United States |
| 5895-01-056-4553 | 2014-05-150 | 9 | United States |
| AM6747V | 2013-01-17 | 10 | United States |
| AM6747V | 2013-01-17 | 11 | United States |
| 5895-01-056-4553 | 2011-12-336 | 4 | US |
| 5895-01-056-4553 | 2011-06-179 | 38 | US |
| 5895-01-056-4553 | 2011-06-179 | 101 | US |
| 5895-01-056-4553 | 2011-06-179 | 200 | US |
| 5895-01-056-4553 | 2010-11-312 | 4 | US |
| AM6747V | 2010-05-125 | 1 | Canada |
| 5895-01-056-4553 | 2010-03-68 | 21 | United States |
| 5895-01-056-4553 | 2009-07-197 | 130 | US |
| 5895-01-056-4553 | 2009-05-127 | 60 | IT |
| 5895-01-056-4553 | 2009-04-120 | 2 | United States |
| 5895-01-056-4553 | 2008-08-217 | 2 | ZW |
| 5895-01-056-4553 | 2008-07-204 | 16 | United States |
| 5895-01-056-4553 | 2008-06-162 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5895-01-056-4553
Technical Data | NSN 5895-01-056-4553
| Characteristic | Specifications |
|---|---|
| FREQUENCY PER CHANNEL | 300.0 HERTZ MINIMUM OPERATING CHANNEL 3.5 KILOHERTZ MAXIMUM OPERATING CHANNEL |
| VARIATION FREQUENCY RATING IN DECIBELS | 2.0 |
| AVERAGE POWER RATING PER CHANNEL | 5.0 MILLIWATTS OUTPUT |
| OVERALL GAIN | 1.2 DECIBELS |
| EXTERNAL DC OPERATING VOLTAGE IN VOLTS | 25.5 NOMINAL SINGLE VOLTAGE |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 6.963 INCHES NOMINAL |
| OVERALL HEIGHT | 3.375 INCHES NOMINAL |
| OVERALL WIDTH | 5.813 INCHES NOMINAL |
| IDENTIFICATION DESIGNATOR | AM-6747% |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SC-B-658722 |
Restrictions/Controls & Freight Information | NSN 5895-01-056-4553
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
