Product Details | VARIABLE ATTENUATOR
5895-01-007-9447 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 010079447
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01-007-9447 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5895-01-007-9447
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5895-01-007-9447
Technical Data | NSN 5895-01-007-9447
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| FREQUENCY RANGE | 5.850 GIGAHERTZ MINIMUM AND 8.200 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.15 |
| POWER RATING | 3.0 WATTS AVERAGE |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 20.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.50 TO 1.50 |
| ATTENUATION ACCURACY REFERENCE FREQUENCY | 6.6 GIGAHERTZ |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

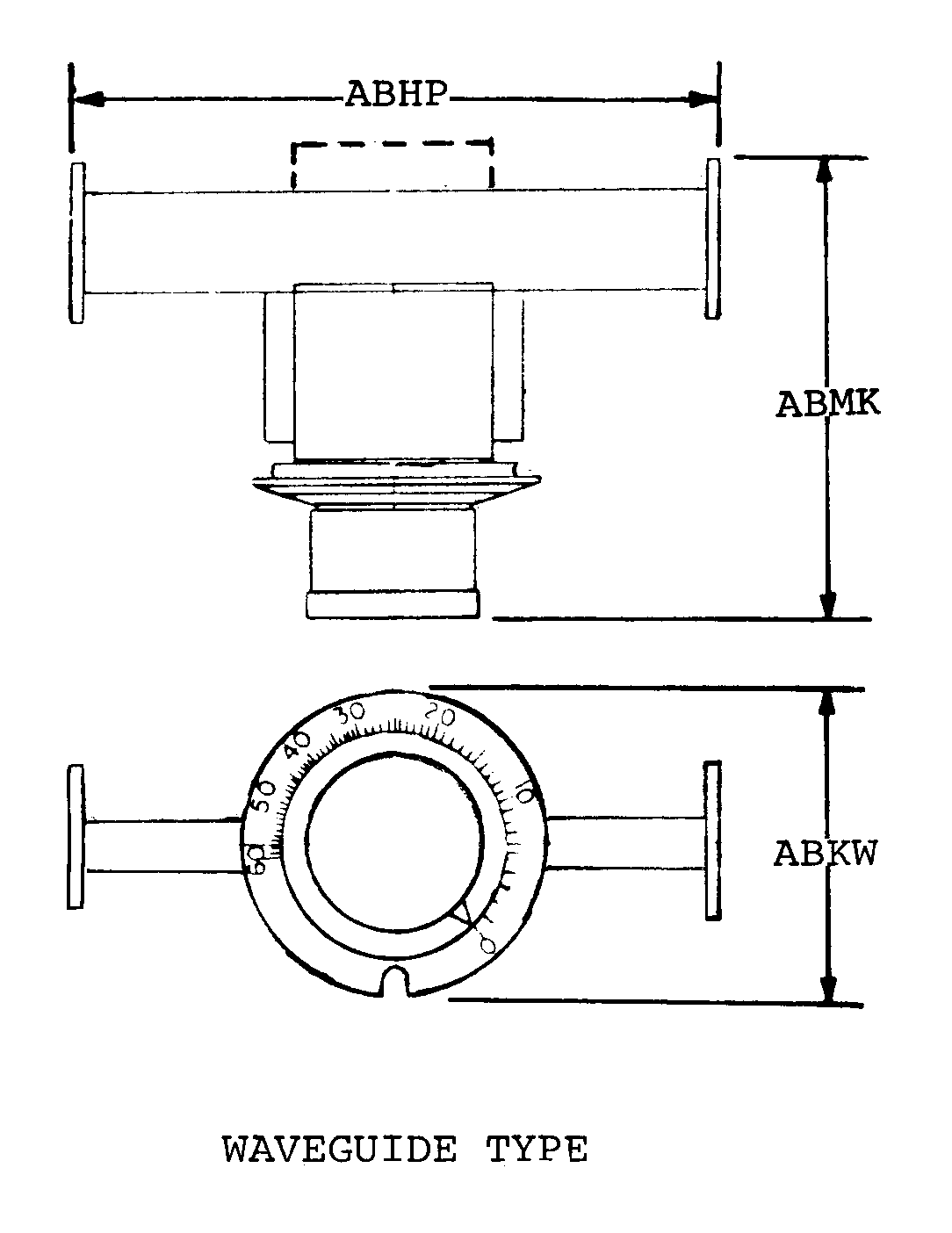

| BODY STYLE | 3A WAVEGUIDE TYPE |
| OVERALL LENGTH | 5.600 INCHES NOMINAL |
| OVERALL HEIGHT | 5.281 INCHES NOMINAL |
| OVERALL WIDTH | 3.125 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-344/U |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| III SCALE LINEARITY | NONLINEAR |
| III SCALE DIVISION QUANTITY | 20 |
| III OPERATING TEMP RANGE | -40.0 TO 55.0 DEG CELSIUS |
| III WAVEGUIDE FLANGE TYPE | COVER |
| MANUFACTURERS CODE | 00929 |
| DESIGN CONTROL REFERENCE | C155A |
