NSN 5895-00-845-8334 008458334
Product Details | ELECTRONIC CONTROL AMPLIFIER
5895-00-845-8334 An electronic device which enables input signals to control a local source of power and deliver output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals, and are suitable for controlling or supplying power for exciting electric motors or similar devices. It includes devices commonly referred to as servo amplifiers, torque amplifiers and similar equipment only if these devices do not employ synchros nor incorporate servomechanisms. It does not include items which are properly classified as audio frequency, radio frequency, direct current or video amplifiers. For amplifiers that incorporate servomechanisms and employ synchros, see AMPLIFIER, SYNCHRO SIGNAL.
Part Alternates: 008458334
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-845-8334 | 00096 ( AMPLIFIER, ELECTRONIC CONTROL ) |

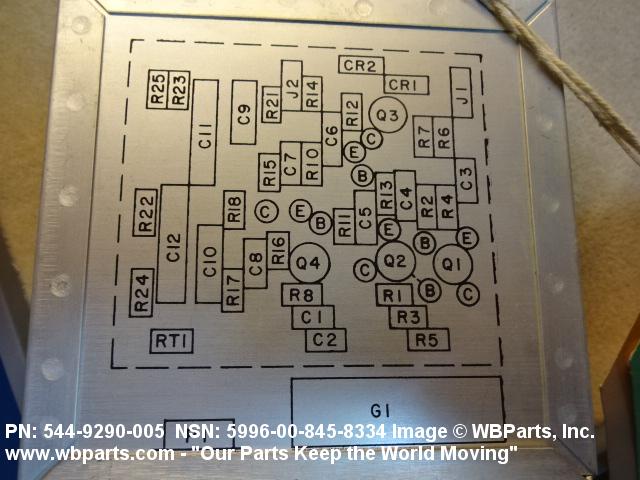

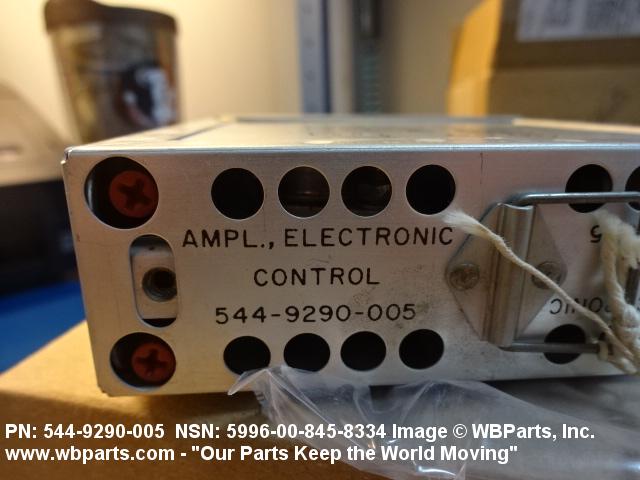

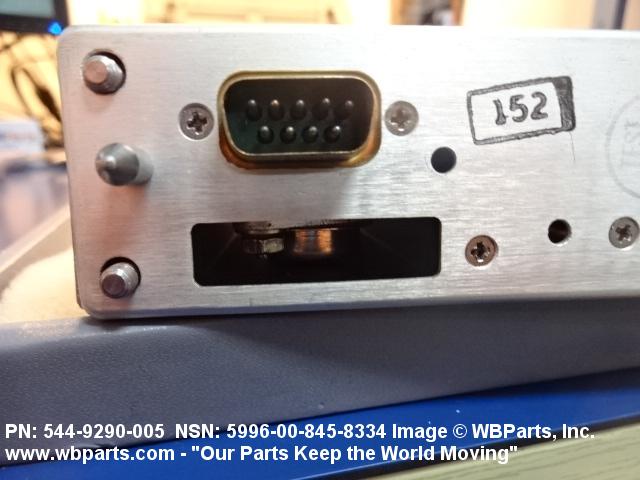

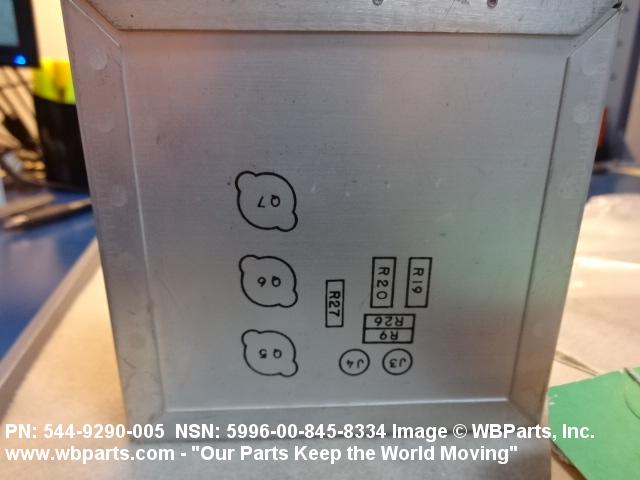

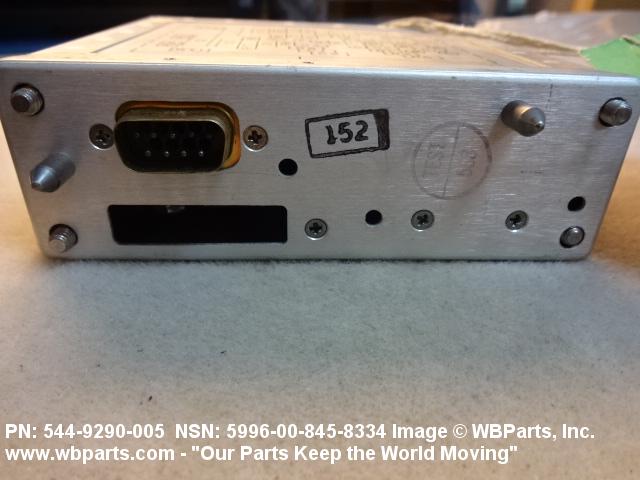

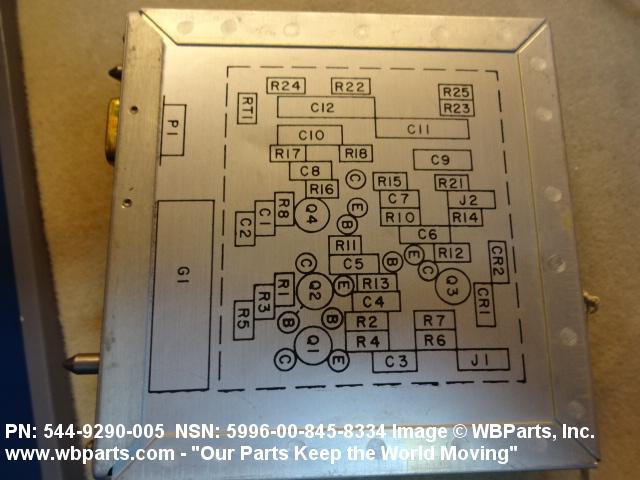

Drawings & Photos | NSN 5895-00-845-8334
Demand History | NSN 5895-00-845-8334
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 544-9290-005 | 2018-06-164 | 1 | |
| 5449290005 | 2017-12-347 | 17 | ID |
| 544-9290-005 | 2010-11-334 | 3 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5895-00-845-8334
Technical Data | NSN 5895-00-845-8334
| Characteristic | Specifications |
|---|---|
| AVERAGE POWER RATING PER CHANNEL | 6.8 WATTS OUTPUT |
| IMPEDANCE RATING PER CHANNEL | 100.000 KILOHMS INPUT CHANNEL 125.000 OHMS OUTPUT CHANNEL |
| EXTERNAL DC OPERATING VOLTAGE IN VOLTS | 28.0 NOMINAL SINGLE VOLTAGE |
| EXTERNAL AC OPERATING VOLTAGE IN VOLTS | 6.3 NOMINAL SINGLE VOLTAGE |
| OPERATING AC FREQUENCY IN HERTZ | 380.0 MINIMUM SINGLE VOLTAGE 420.0 MAXIMUM SINGLE VOLTAGE |
| PHASE | SINGLE |
| INSTALLATION DESIGN | MECHANICAL |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 4.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 544-9290-005 |
Restrictions/Controls & Freight Information | NSN 5895-00-845-8334
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
