NSN 5895-00-482-7330 004827330

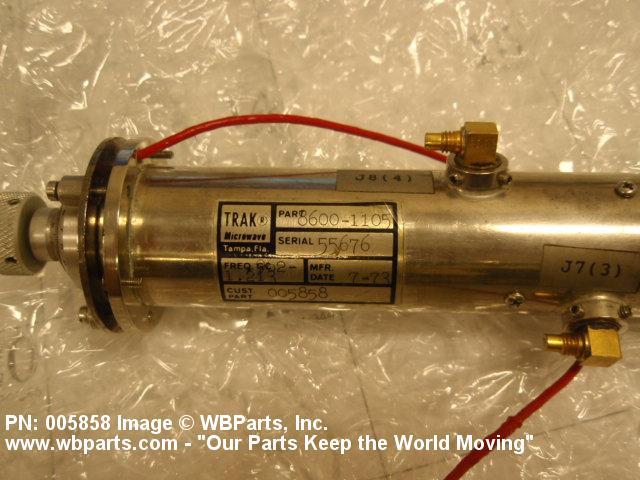

Product Details | RADIO FREQUENCY AMPLIFIER
5895-00-482-7330 An electronic device whose radio frequency input signals control power from a source independent of the input signals, and delivers radio frequency output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It operates at frequencies above 20 kilohertz.202598500005996000000
Part Alternates: 004827330
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
58 | 00-482-7330 | 00446 ( AMPLIFIER, RADIO FREQUENCY ) |
Demand History | NSN 5895-00-482-7330
Part Number | Request Date | QTY | Origin |
---|---|---|---|
005858 | 2014-11-330 | 4 | |
005858 | 2012-01-06 | 1 | |
5895-00-482-7330 | 2011-12-346 | 1 | United States |
5895-00-482-7330 | 2010-06-171 | 1 | United States |
5895-00-482-7330 | 2009-12-352 | 1 | United States |
5895-00-482-7330 | 2009-11-324 | 2 | United States |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5895-00-482-7330
Related Products | NSN 5895-00-482-7330
Technical Data | NSN 5895-00-482-7330
Characteristic | Specifications |
---|---|
FREQUENCY PER CHANNEL | 0.962 GIGAHERTZ MINIMUM 1ST OPERATING CHANNEL 1.024 GIGAHERTZ MAXIMUM 1ST OPERATING CHANNEL 1.151 GIGAHERTZ MINIMUM 2ND OPERATING CHANNEL 1.213 GIGAHERTZ MAXIMUM 2ND OPERATING CHANNEL |
AVERAGE POWER RATING PER CHANNEL | 200.0 MILLIWATTS INPUT |
IMPEDANCE RATING PER CHANNEL | 50.000 OHMS INPUT CHANNEL |
EXTERNAL DC OPERATING VOLTAGE IN VOLTS | 1750.0 NOMINAL SINGLE VOLTAGE |

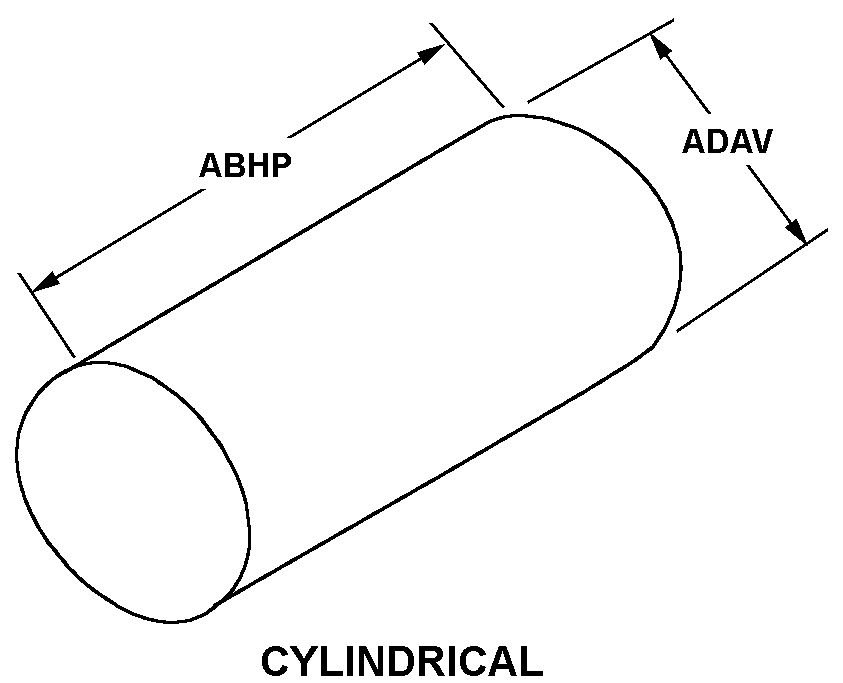

BASIC SHAPE STYLE | 2 CYLINDRICAL |
OVERALL LENGTH | 6.710 INCHES NOMINAL |
OVERALL DIAMETER | 1.750 INCHES NOMINAL |
III FSC APPLICATION DATA | BEACON TRANSPONDER SET,RADIO NAVIGATION,ANTRN26 |
MANUFACTURERS CODE | 19156 |
DESIGN CONTROL REFERENCE | 005858 |
Restrictions/Controls & Freight Information | NSN 5895-00-482-7330
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Category | Code | Description |
---|---|---|
No Freight Information |
