NSN 5855-01-272-1504 SMC850326, SM-C-850326, 01-272-1504
Product Details | OPTICAL ELEMENT RETAINER
5855-01-272-1504 A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED.20312400038Optical Sighting and Ranging Equipment58550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: SMC850326, SM-C-850326, 5855-01-272-1504, 01-272-1504, 5855012721504, 012721504
Communication, Detection, and Coherent Radiation Equipment | Night Vision Equipment, Emitted and Reflected Radiation
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 04 FEB 1988 | 01-272-1504 | 22451 ( RETAINER, OPTICAL ELEMENT ) |
Drawings & Photos | NSN 5855-01-272-1504
Demand History | NSN 5855-01-272-1504
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5855-01-272-1504 | 2008-05-06 | 295 | DIBBS |
| 5855-01-272-1504 | 2008-02-19 | 264 | DIBBS |
| 5855-01-272-1504 | 2008-02-05 | 109 | DIBBS |
| 5855-01-272-1504 | 2008-01-18 | 32 | DIBBS |
| 5855-01-272-1504 | 2007-11-14 | 16 | DIBBS |
| 5855-01-272-1504 | 2007-11-07 | 23 | DIBBS |
Cross Reference | NSN 5855-01-272-1504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-850326 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5855-01-272-1504
Technical Data | NSN 5855-01-272-1504
| Characteristic | Specifications |
|---|---|

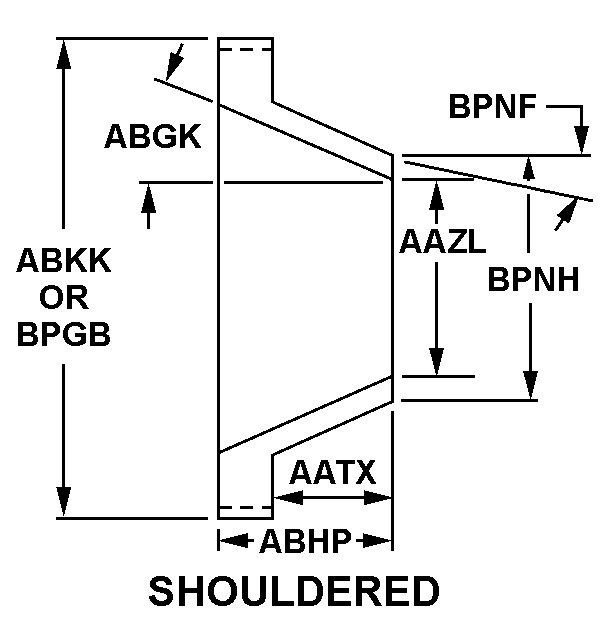

| STYLE DESIGNATOR | F7 SHOULDERED |
