NSN 5850-01-065-5103 0904001396, 09-0400-1396, 5165388
Product Details | LIGHT LENS
5850-01-065-5103 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: 0904001396, 09-0400-1396, 5165388, 7000034A, 70-00034A, 5850-01-065-5103, 01-065-5103, 5850010655103, 010655103
Communication, Detection, and Coherent Radiation Equipment | Visible and Invisible Light Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 21 SEP 1978 | 01-065-5103 | 29939 ( LENS, LIGHT ) |
Drawings & Photos | NSN 5850-01-065-5103
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5850-01-065-5103
Technical Data | NSN 5850-01-065-5103
| Characteristic | Specifications |
|---|---|

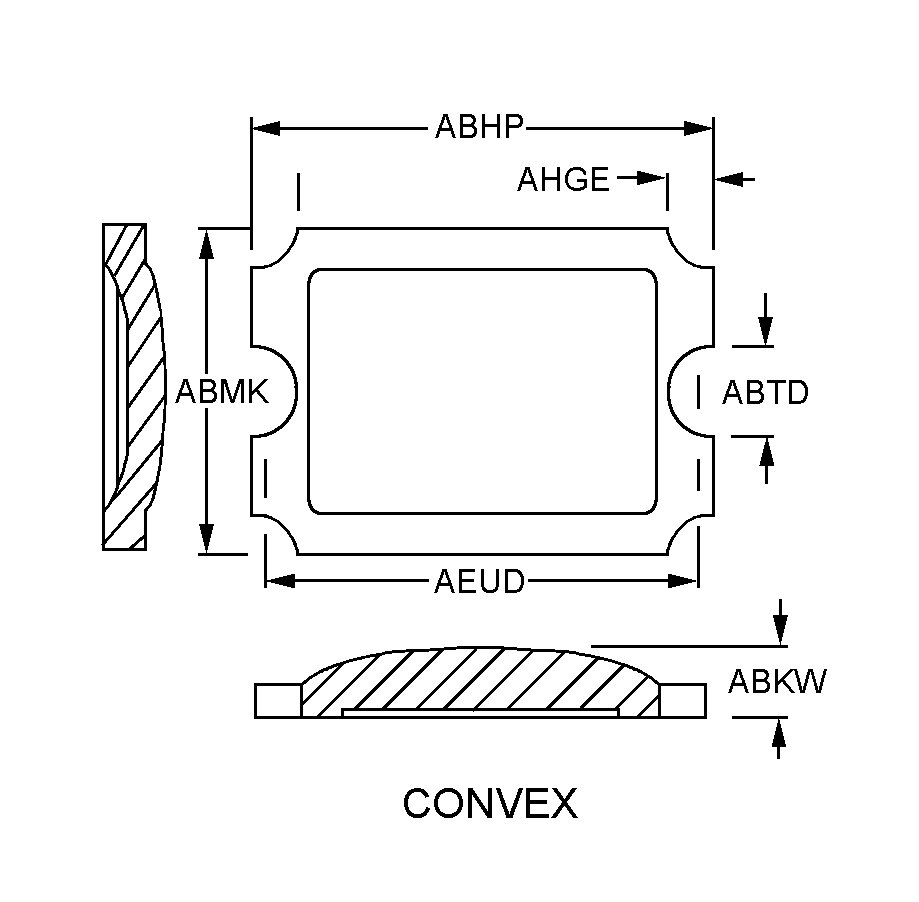

| STYLE DESIGNATOR | 55 CONVEX |
| OVERALL LENGTH | 1.720 INCHES NOMINAL |
| OVERALL HEIGHT | 0.120 INCHES NOMINAL |
| OVERALL WIDTH | 1.310 INCHES NOMINAL |
| MOUNTING SLOT DEPTH | 0.120 INCHES NOMINAL |
| MATERIAL | PLASTIC ACRYLIC LENS |
Restrictions/Controls & Freight Information | NSN 5850-01-065-5103
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5850-01-065-5103
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
