NSN 5840-00-269-9371 1066280, 00-269-9371, 002699371
Product Details | METAL MOLDING
5840-00-269-9371 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 1066280, 5840-00-269-9371, 00-269-9371, 5840002699371, 002699371
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01 JAN 1963 | 00-269-9371 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 5840-00-269-9371
Cross Reference | NSN 5840-00-269-9371
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1066280 | 12204 | DAIMLER CHRYSLER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5840-00-269-9371
Technical Data | NSN 5840-00-269-9371
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM PLATED |
| FABRICATION METHOD | ROLLED |

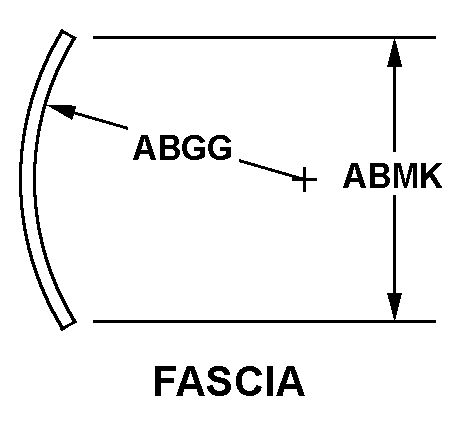

| STYLE DESIGNATOR | 138 FASCIA |
| LEGEND A | 27.500 INCHES NOMINAL |
| LEGEND R | 26.500 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTED BY FIVE 0.344 IN. DIA MTG HOLES EQUALLY SPACED |
| III FSC APPLICATION DATA | RADAR SET,NONAIRBORNE,EXCEPT FIRE CONTROL AND GUIDED MISSILE |
Restrictions/Controls & Freight Information | NSN 5840-00-269-9371
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
