NSN 5830-00-881-6999 C3047WIC, 548511-222, 8313961501
Product Details | INTERCOMMUNICATION SET CONTROL
5830-00-881-6999 A component which determines the mode of operation of a INTERCOMMUNICATION SET.20258300062Intercommunication and Public Address Systems, Except Airborne58310055Intercommunication and Public Address Systems, Airborne
Part Alternates: C3047WIC, 548511-222, 8313961501, 8313961-501, 8313979501, 8313979-501, 5830-00-881-6999, 00-881-6999, 5830008816999, 548511222, 008816999
Communication, Detection, and Coherent Radiation Equipment | Intercommunication and Public Address Systems, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01 JAN 1962 | 00-881-6999 | 19255 ( CONTROL, INTERCOMMUNICATION SET ) |

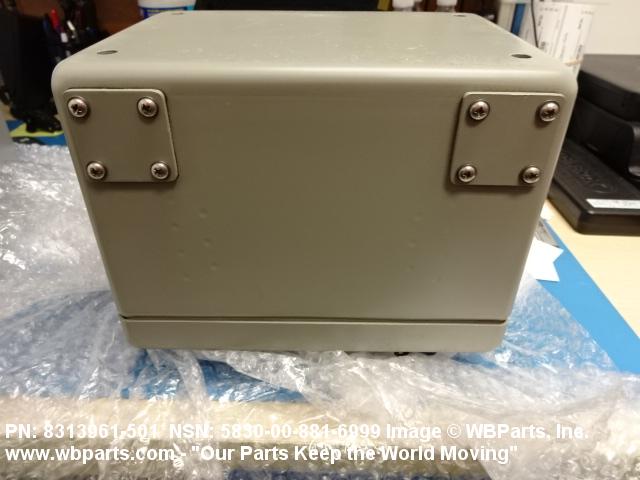

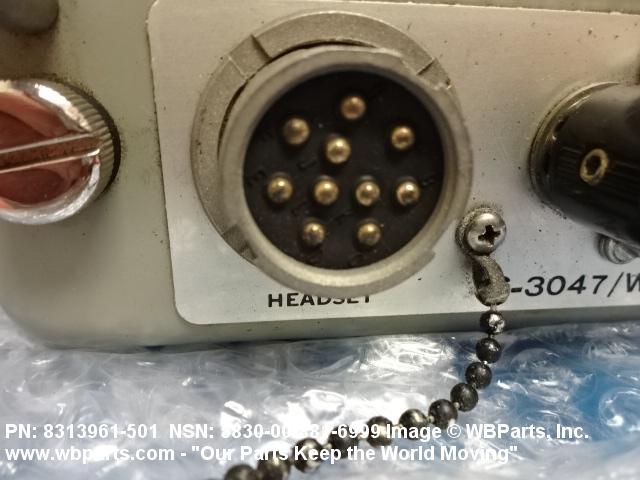

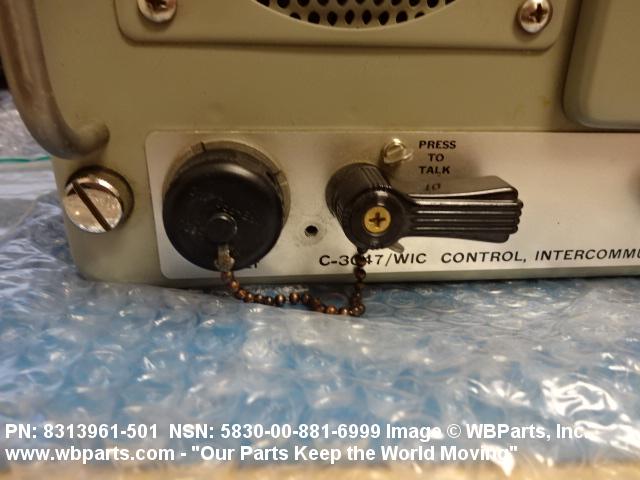

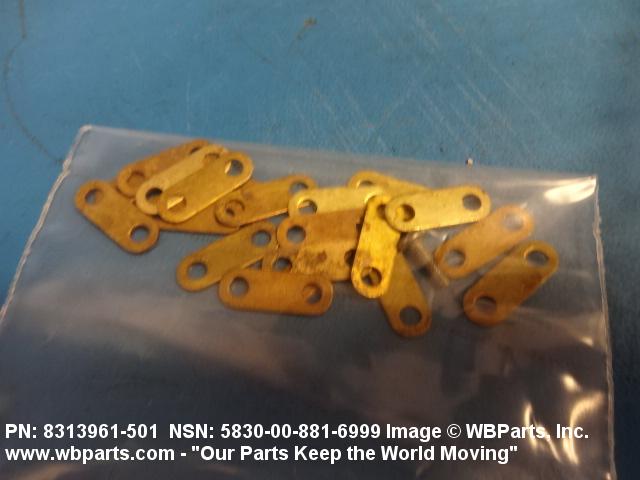

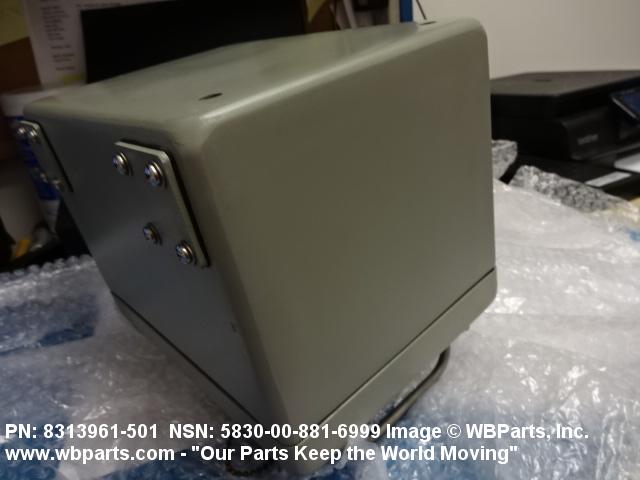

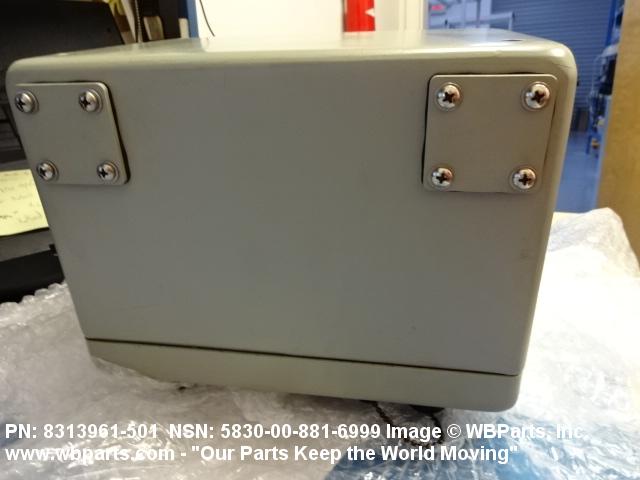

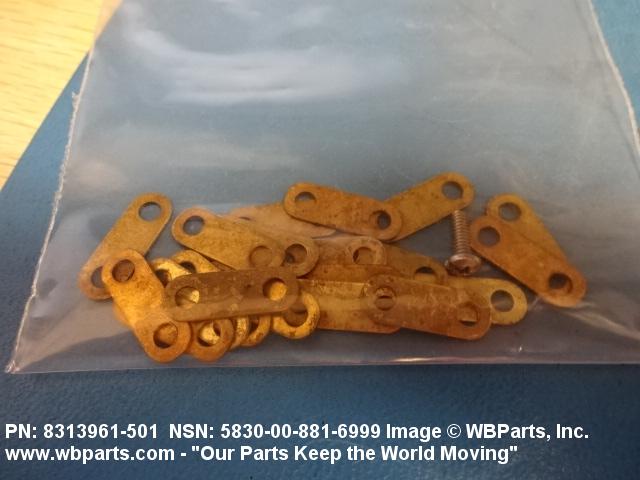

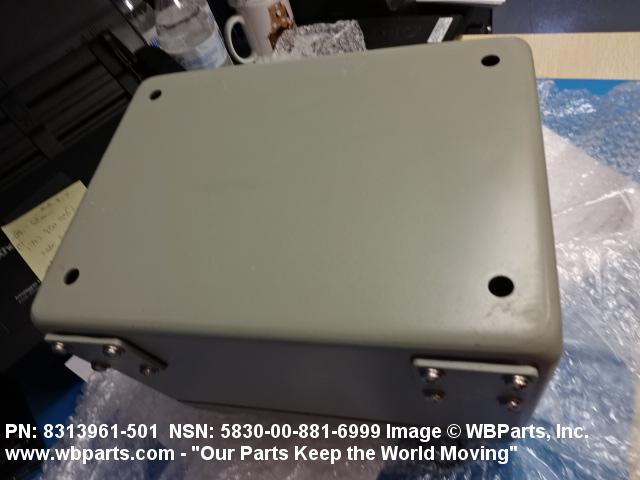

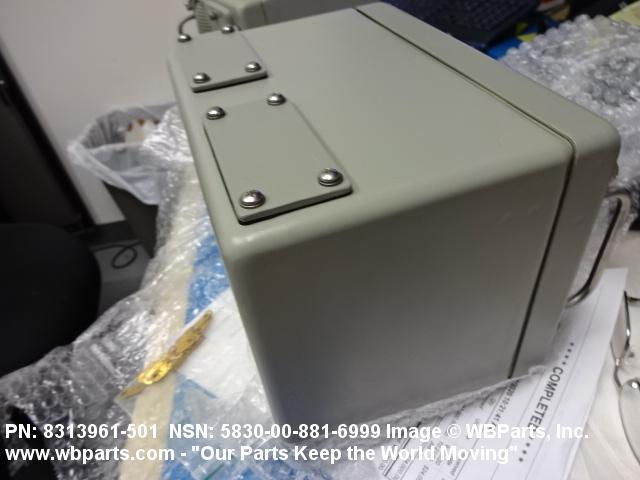

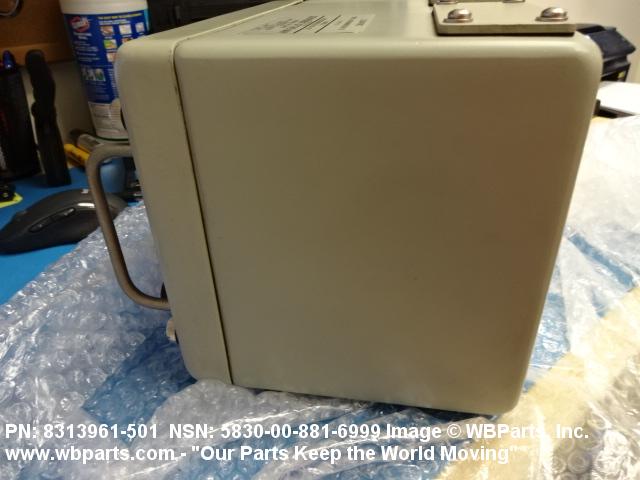

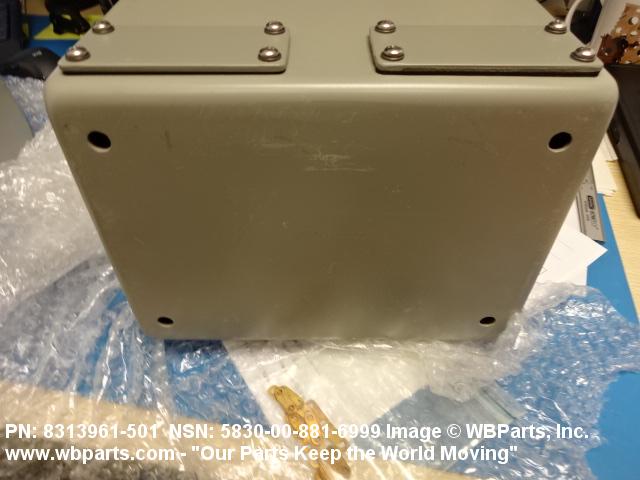

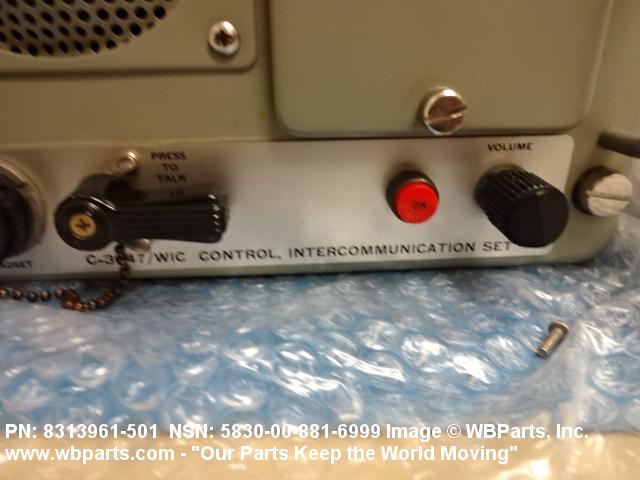

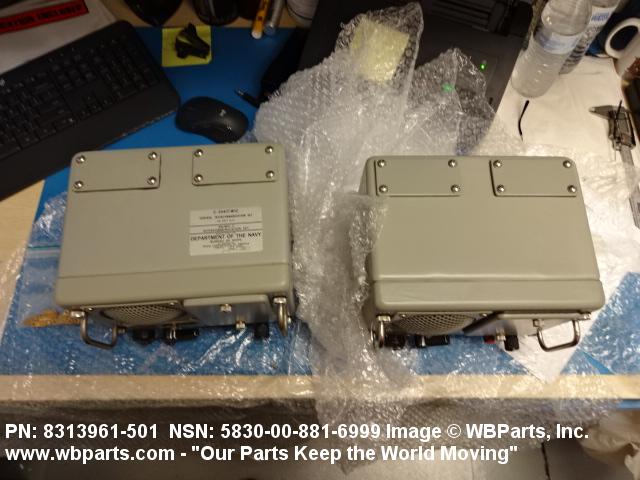

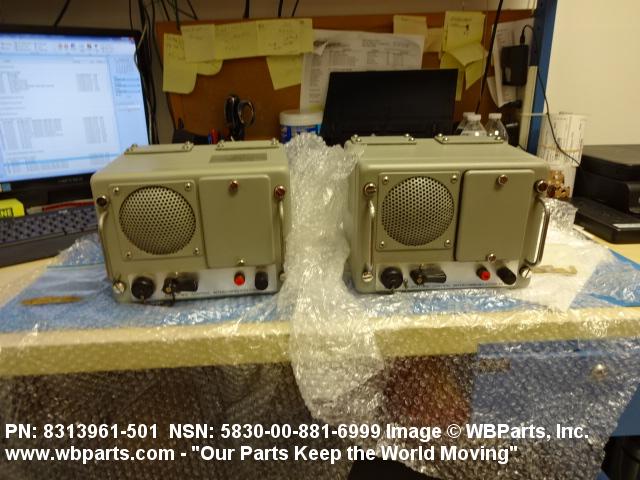

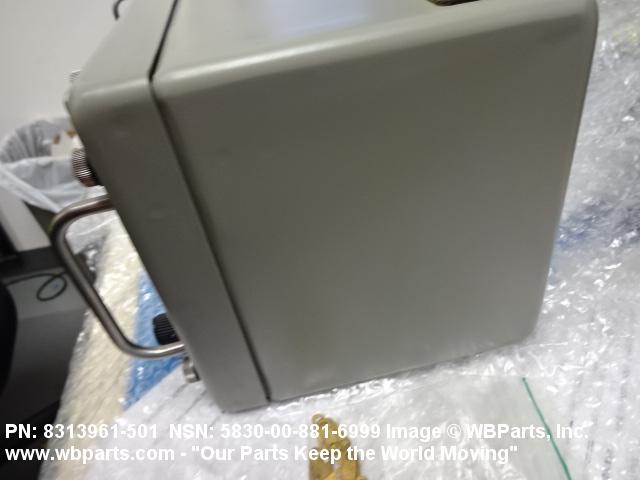

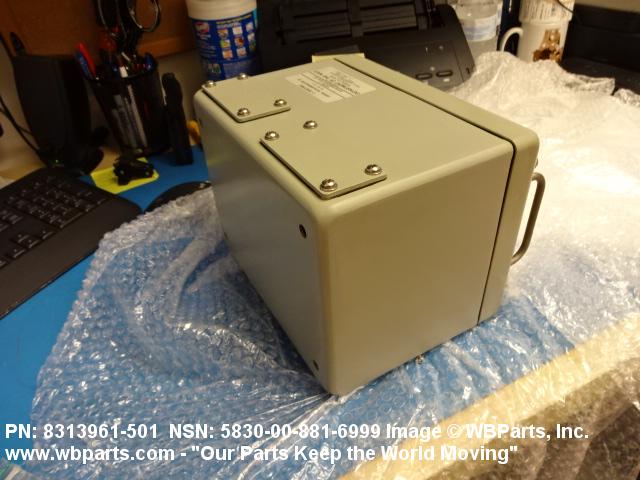

Drawings & Photos | NSN 5830-00-881-6999
Demand History | NSN 5830-00-881-6999
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5830-00-881-6999 | 2021-01-13 | 0 | NECO |
| 5830-00-881-6999 | 2020-07-212 | 2 | United States |
| 5830-00-881-6999 | 2020-02-51 | 5 | NECO |
| 5830-00-881-6999 | 2019-11-309 | 9 | NECO |
| 5830-00-881-6999 | 2013-06-172 | 3 | NECO |
Cross Reference | NSN 5830-00-881-6999
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 548511-222 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 8313961-501 | 02734 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8313961-501 | 11447 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST |
| 8313979-501 | 11447 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST |
| C3047WIC | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5830-00-881-6999
Related Products | NSN 5830-00-881-6999
Technical Data | NSN 5830-00-881-6999
| Characteristic | Specifications |
|---|---|
| POWER SOURCE | EXTERNAL |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CURRENT RATING IN AMPS | ANY ACCEPTABLE |
| MAXIMUM WATTAGE RATING IN WATTS | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| TERMINAL LOCATION | BACK |
| CONNECTOR MANUFACTURER PART NUMBER | 8901777-1 |
| CONNECTOR MANUFACTURER CODE | 49675 |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | ANY ACCEPTABLE |
| INCLOSURE TYPE | ENCASED |
| MAXIMUM OVERALL LENGTH | 9.460 INCHES |
| MAXIMUM OVERALL WIDTH | 8.260 INCHES |
| MAXIMUM OVERALL HEIGHT | 7.460 INCHES |
| MOUNTING METHOD | RACK |
| FEATURES PROVIDED | INTERNAL ILLUMINATION |
| III FSC APPLICATION DATA | SHIPBOARD INTERCOMMUNICATION EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5830-00-881-6999
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5830-00-881-6999
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
