Product Details | FIXED ATTENUATOR
5825-01-037-2861 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 010372861
Communication, Detection, and Coherent Radiation Equipment | Radio Navigation Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01-037-2861 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5825-01-037-2861
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5825-01-037-2861
Technical Data | NSN 5825-01-037-2861
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| RF SIGNAL ATTENUATION IN DECIBELS | 67.0 |

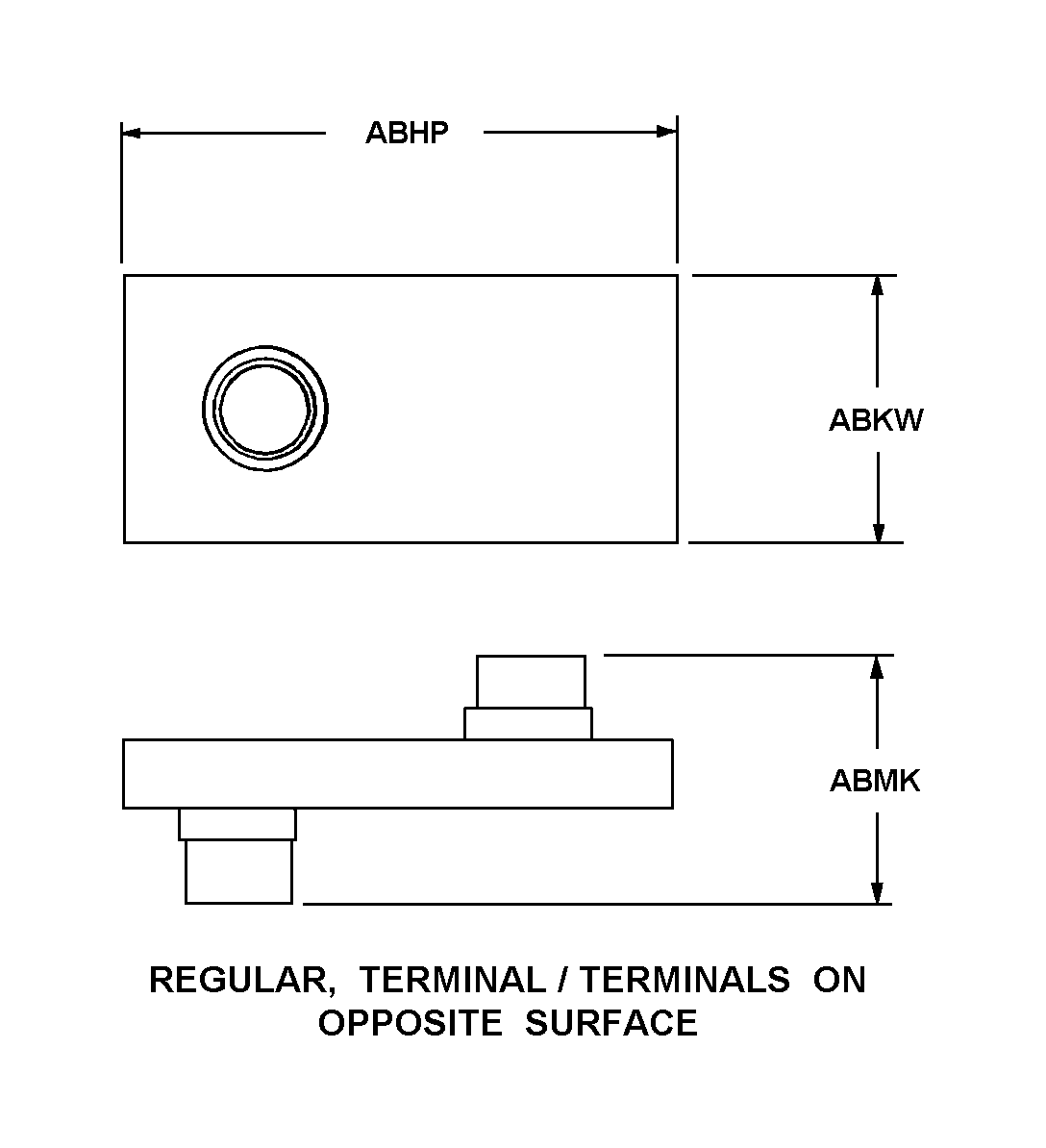

| BODY STYLE | 3B RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| BODY SURFACE TREATMENT | ANODIZED |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTION TYPE PER FUNCTION | FEMALE INPUT AND FEMALE OUTPUT |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE/STUD QUANTITY | 4 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.500 INCHES MINIMUM AND 7.000 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 95750 |
| DESIGN CONTROL REFERENCE | 421585-001 |
