Product Details | VARIABLE ATTENUATOR
5825-00-105-8572 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 001058572
Communication, Detection, and Coherent Radiation Equipment | Radio Navigation Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-105-8572 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5825-00-105-8572
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5825-00-105-8572
Technical Data | NSN 5825-00-105-8572
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| OVERALL ATTENUATION RANGE IN DECIBELS | 10.0 TO 50.0 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

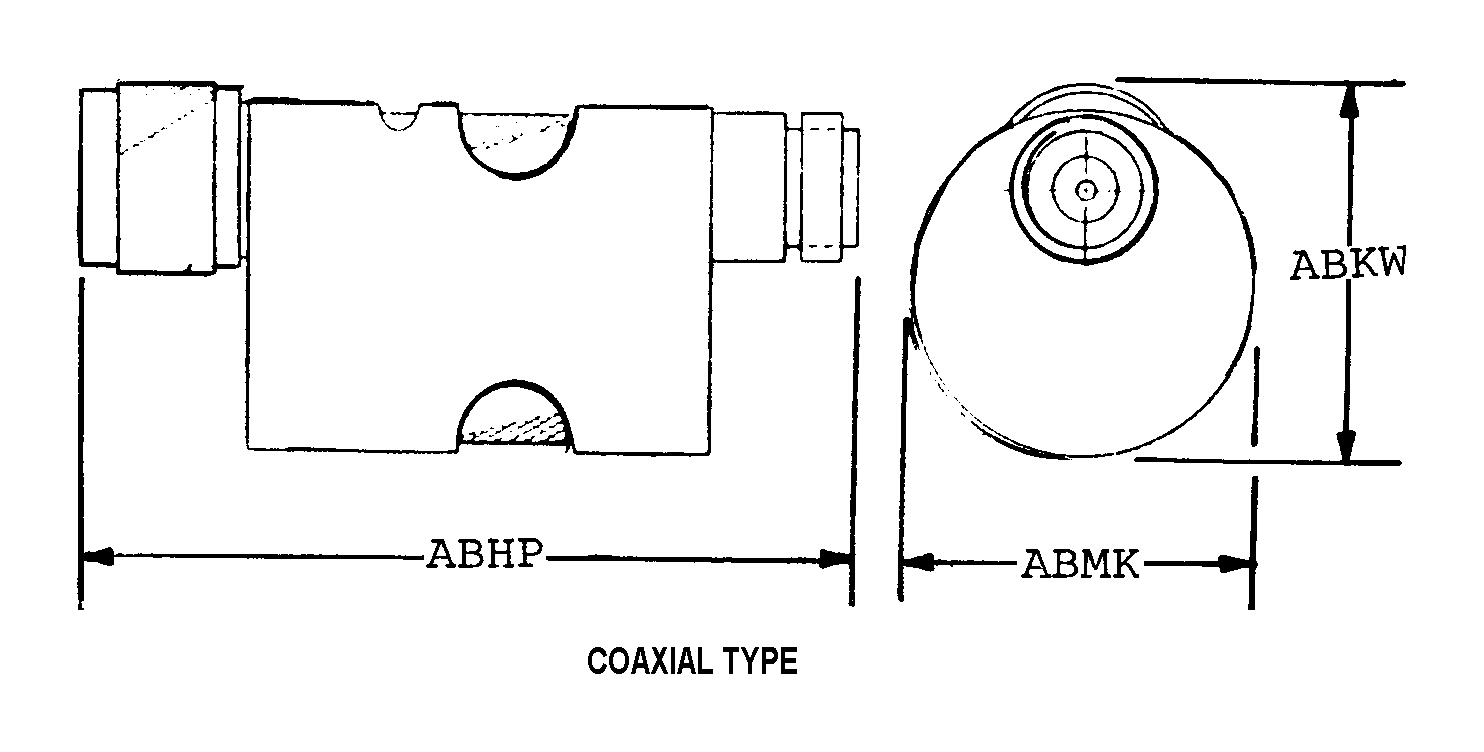

| BODY STYLE | 20A COAXIAL TYPE |
