NSN 5821-01-305-3103 013053103
Product Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5821-01-305-3103 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Part Alternates: 013053103
Communication, Detection, and Coherent Radiation Equipment | Radio and Television Communication Equipment, Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01-305-3103 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
Drawings & Photos | NSN 5821-01-305-3103
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5821-01-305-3103
Technical Data | NSN 5821-01-305-3103
| Characteristic | Specifications |
|---|---|

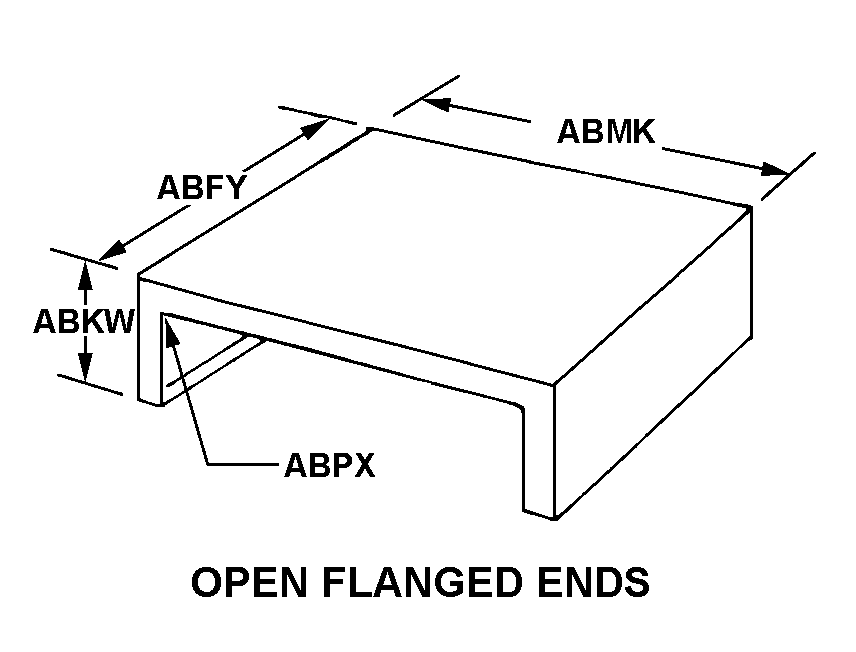

| STYLE DESIGNATOR | C4 OPEN FLANGED ENDS |
| OVERALL DEPTH | 15.370 INCHES NOMINAL |
| OVERALL HEIGHT | 7.380 INCHES NOMINAL |
| OVERALL WIDTH | 19.500 INCHES NOMINAL |
| MOUNTING PROVISION | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 333 |
Restrictions/Controls & Freight Information | NSN 5821-01-305-3103
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
