NSN 5821-01-134-0257 011340257
Product Details | ELECTRICAL EQUIPMENT CABINET
5821-01-134-0257 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Part Alternates: 011340257
Communication, Detection, and Coherent Radiation Equipment | Radio and Television Communication Equipment, Airborne
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
58 | 01-134-0257 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5821-01-134-0257
Related Products | NSN 5821-01-134-0257
Technical Data | NSN 5821-01-134-0257
Characteristic | Specifications |
---|---|

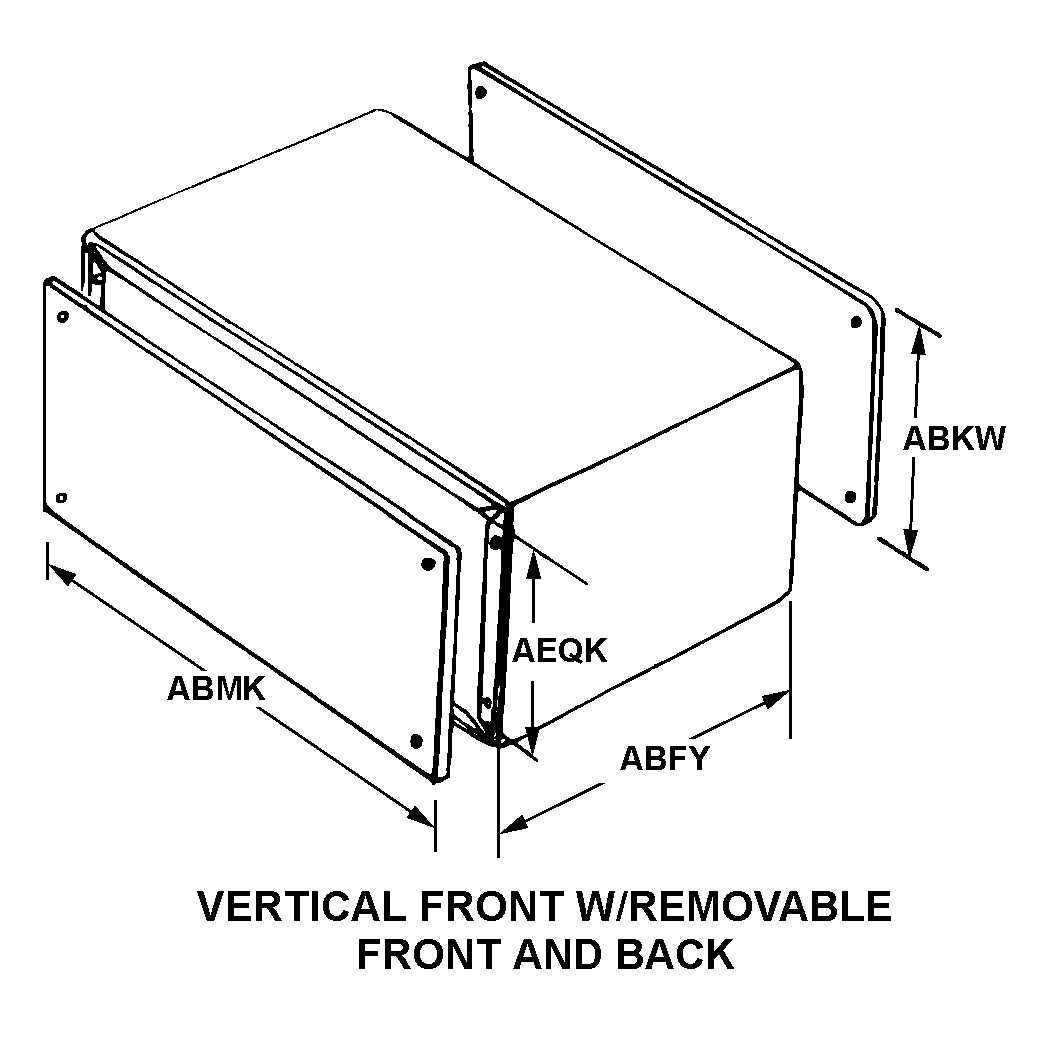

STYLE DESIGNATOR | B21 VERTICAL FRONT W/REMOVABLE FRONT AND BACK |
OVERALL DEPTH | 5.070 INCHES MINIMUM AND 5.110 INCHES MAXIMUM |
OVERALL HEIGHT | 6.900 INCHES MINIMUM AND 6.940 INCHES MAXIMUM |
OVERALL WIDTH | 12.710 INCHES MINIMUM AND 12.750 INCHES MAXIMUM |
PANEL SPACE HEIGHT | 6.150 INCHES MINIMUM AND 6.190 INCHES MAXIMUM |
MATERIAL | STEEL |
MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A366 ASSN STD SINGLE MATERIAL RESPONSE |
SURFACE TREATMENT | PRIMER AND ENAMEL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-C-490B FED SPEC 1ST TREATMENT RESPONSE AND FED-STD-595,TYPE III,CLASS 2 FED STD 2ND TREATMENT RESPONSE |
COLOR | GRAY |
MANUFACTURERS CODE | 13030 |
DESIGN CONTROL REFERENCE | E192088-1 |
Restrictions/Controls & Freight Information | NSN 5821-01-134-0257
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
