NSN 5821-00-180-8264 6179621002, 617-9621-002, 00-180-8264
Product Details | SIGNAL DATA TRANSLATOR
5821-00-180-8264 An item that processes a restricted bandwidth data modulated signal received on a wide band carrier frequency, to a standardized single radio frequency, and conversely processes a locally generated data modulated signal within a restricted bandwidth to a standardized single radio frequency, for transmission within the restricted bandwidth on any incremental frequency on the wide band carrier frequency. See also CONVERTER, SIGNAL DATA.20458050033Telephone and Telegraph Equipment58200061Radio and Television Communication Equipment, Except Airborne58210054Radio and Television Communication Equipment, Airborne59850043Antennas, Waveguides, and Related Equipment
Part Alternates: 6179621002, 617-9621-002, 5821-00-180-8264, 00-180-8264, 5821001808264, 001808264
Communication, Detection, and Coherent Radiation Equipment | Radio and Television Communication Equipment, Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 02 MAR 1973 | 00-180-8264 | 61285 ( TRANSLATOR, SIGNAL DATA ) |

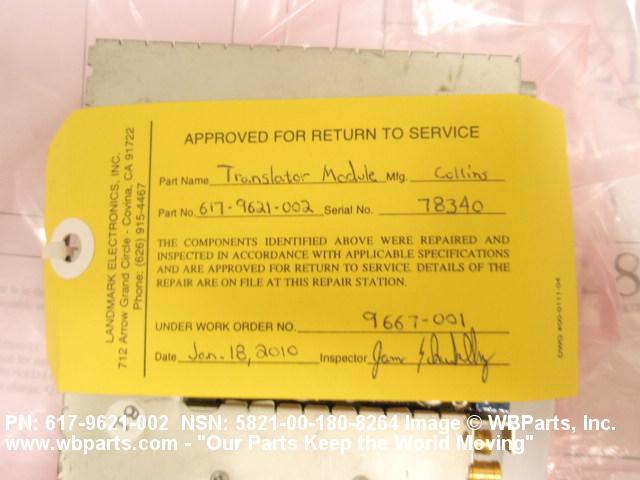

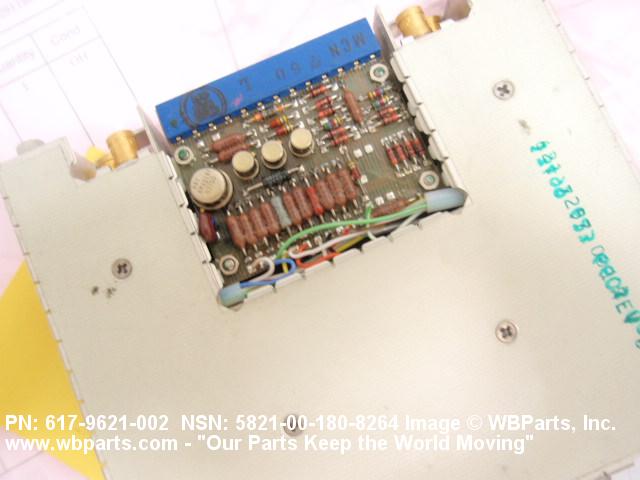

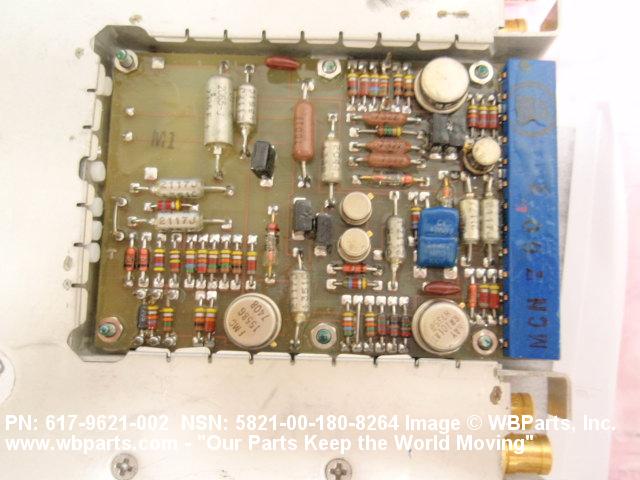

Drawings & Photos | NSN 5821-00-180-8264
Demand History | NSN 5821-00-180-8264
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6179621002 | 2010-04-98 | 3 | US |
| 6179621002 | 2009-10-293 | 1 | Malaysia |
| 6179621002 | 2007-07-185 | 1 | Malaysia |
Cross Reference | NSN 5821-00-180-8264
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 617-9621-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5821-00-180-8264
Technical Data | NSN 5821-00-180-8264
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | SOLID STATE CONSTRUCTION,CHASSIS MTD |
| III FSC APPLICATION DATA | RADIO SET,COMMUNICATION,AIRBORNE |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 617-9621-002 |
Restrictions/Controls & Freight Information | NSN 5821-00-180-8264
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5821-00-180-8264
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | JZ | AN/ARC-159 radio items |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
