NSN 5821-00-087-0381 000870381
Product Details | ELECTRICAL EQUIPMENT CABINET
5821-00-087-0381 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Part Alternates: 000870381
Communication, Detection, and Coherent Radiation Equipment | Radio and Television Communication Equipment, Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-087-0381 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5821-00-087-0381
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5821-00-087-0381
Technical Data | NSN 5821-00-087-0381
| Characteristic | Specifications |
|---|---|

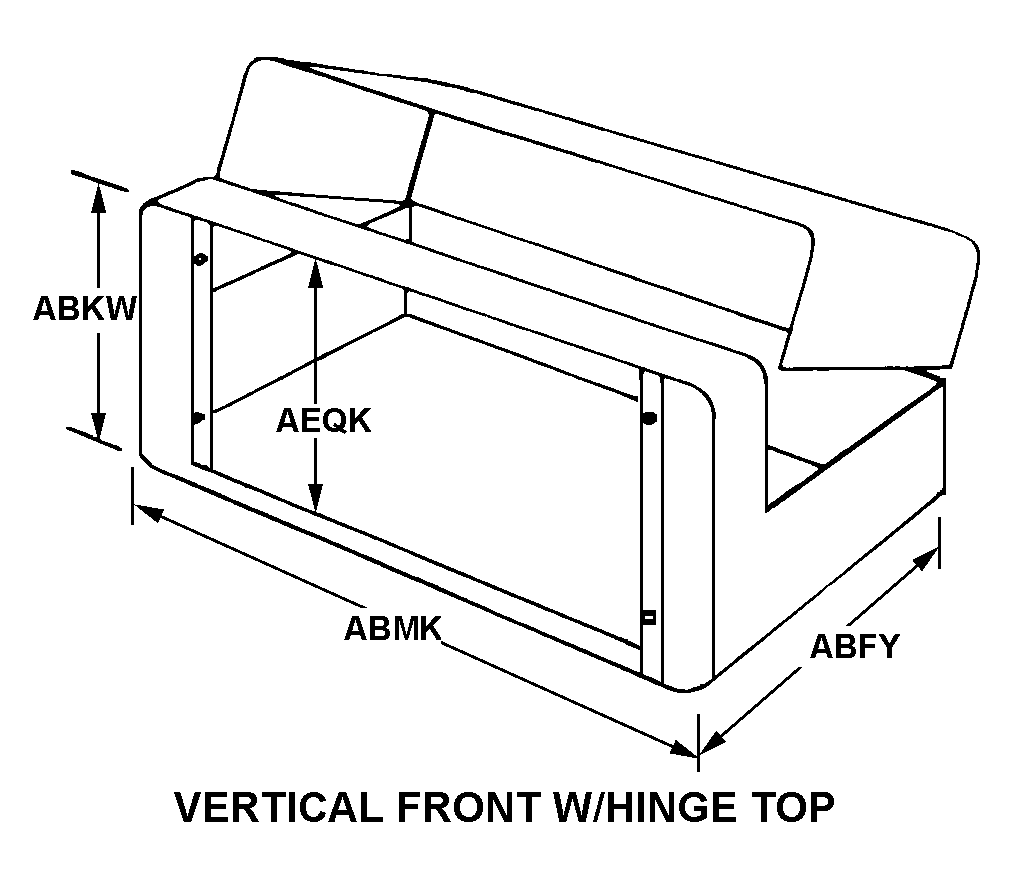

| STYLE DESIGNATOR | B19 VERTICAL FRONT W/HINGE TOP |
| OVERALL DEPTH | 49.874 INCHES NOMINAL |
| OVERALL HEIGHT | 17.686 INCHES NOMINAL |
| OVERALL WIDTH | 39.560 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 6.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| COLOR | GRAY |
| MOUNTING PROVISION | UNTHREADED HOLE |
| HANDLING FACILITY TYPE | HINGED EXTERNAL HANDLES |
| PANEL WIDTH ACCOMMODATED | 8.000 INCHES NOMINAL AND 5.000 INCHES NOMINAL |
| VENTILATION DESIGN TYPE | PERFORATED |
Restrictions/Controls & Freight Information | NSN 5821-00-087-0381
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
