NSN 5810-01-050-1589 0N0084715, 0N008471-5, 01-050-1589
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY
5810-01-050-1589 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 0N0084715, 0N008471-5, 5810-01-050-1589, 01-050-1589, 5810010501589, 010501589
Communication, Detection, and Coherent Radiation Equipment | Communications Security Equipment and Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
58 | 01 NOV 1977 | 01-050-1589 | 00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL ) |
Cross Reference | NSN 5810-01-050-1589
Part Number | Cage Code | Manufacturer |
---|---|---|
0N008471-5 | 98230 | NATIONAL SECURITY AGENCY |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5810-01-050-1589
Technical Data | NSN 5810-01-050-1589
Characteristic | Specifications |
---|---|
CONDUCTOR QUANTITY | 2 |
CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
MATERIAL | COPPER 1ST POSITION CONDUCTOR ALL CONDUCTORS RUBBER 1ST POSITION JACKET ALL CONDUCTORS TIN 2ND POSITION CONDUCTOR ALL CONDUCTORS |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-I-3930 MIL SPEC ALL MATERIAL RESPONSES 2ND POSITION JACKET ALL CONDUCTORS |
ROUND CONDUCTOR SIZE | 24 AWG ALL CONDUCTORS |
STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
CONDUCTOR ARRANGEMENT AND QUANTITY | 1 PARALLEL PAIR |

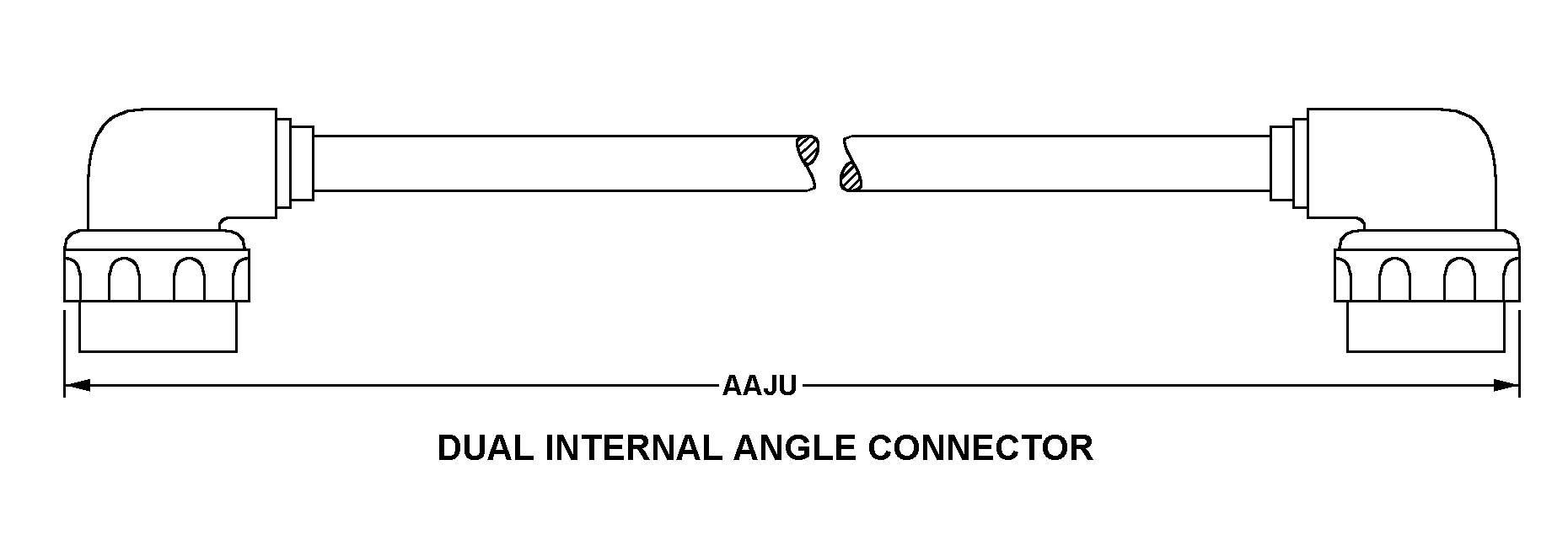

STYLE DESIGNATOR | 33 DUAL INTERNAL ANGLE CONNECTOR |
OVERALL LENGTH | 13.719 INCHES |
CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
CROSS SECTION OUTSIDE DIAMETER | 0.125 INCHES NOMINAL |
TERMINATION TYPE | CONNECTOR RECEPTACLE BOTH ENDS ALL CONDUCTORS |
SPECIAL FEATURES | CONNECTOR ON EACH END OF CABLE MARKED WITH A NUMBERIAL 5 |
TEST DATA DOCUMENT | 98230-0N008471-5 DRAWING |
MANUFACTURERS CODE | 98230 |
DESIGN CONTROL REFERENCE | 0N008471-5 |
