NSN 5805-01-326-3905 70-552 TY176BH, 70552TY176BH, 01-326-3905
Product Details | TELEPHONE SET
5805-01-326-3905 A combination of items consisting of a handset or telephone, a switch and its associated wiring, with self-contained or separate ringer box. Includes wall telephones. It is primarily used for voice communications.
Part Alternates: 70-552 TY176BH, 70552TY176BH, 5805-01-326-3905, 01-326-3905, 5805013263905, 013263905
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 22-SEP-90 | 01-326-3905 | 00307 ( TELEPHONE SET ) |
Drawings & Photos | NSN 5805-01-326-3905
Demand History | NSN 5805-01-326-3905
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5805-01-326-3905 | 2012-08-227 | 1 | DIBBS |
| 5805-01-326-3905 | 2011-02-51 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5805-01-326-3905
Technical Data | NSN 5805-01-326-3905
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 10.000 INCHES NOMINAL |
| OVERALL HEIGHT | 40.000 INCHES NOMINAL |
| CASE MATERIAL | ANY ACCEPTABLE |

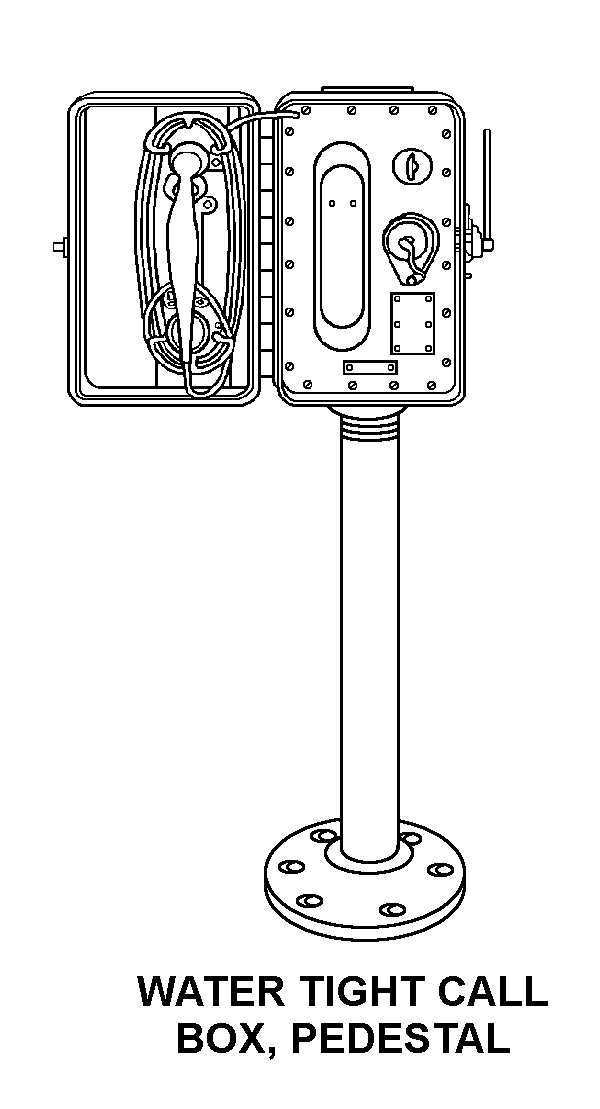

| STYLE DESIGNATOR | 39 WATER TIGHT CALL BOX, PEDESTAL |
| INCLOSURE LOCKING FACILITY | NOT FURNISHED |
| TRANSMITTER CURRENT SUPPLY SOURCE | SOUND POWERED |
| INCOMING CALL SIGNAL DEVICE | EXTERNAL BELL |
| SIGNAL DEVICE LOCATION | SEPARATE BOX |
| OUTGOING CALL SIGNAL DEVICE | HOOK SWITCH |
| DIAL | INCLUDED |
| PUSH-TO-TALK SWITCH | NOT INCLUDED |
| MANUFACTURERS CODE | 28199 |
| DESIGN CONTROL REFERENCE | 70-552 TY176BH |
Restrictions/Controls & Freight Information | NSN 5805-01-326-3905
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
