NSN 5805-01-322-8387 70-553 TY23-2RL, 70553TY232RL, 01-322-8387
Product Details | TELEPHONE SET
5805-01-322-8387 A combination of items consisting of a handset or telephone, a switch and its associated wiring, with self-contained or separate ringer box. Includes wall telephones. It is primarily used for voice communications.
Part Alternates: 70-553 TY23-2RL, 70553TY232RL, 5805-01-322-8387, 01-322-8387, 5805013228387, 013228387
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 14-JUL-90 | 01-322-8387 | 00307 ( TELEPHONE SET ) |
Drawings & Photos | NSN 5805-01-322-8387
Cross Reference | NSN 5805-01-322-8387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70-553 TY23-2RL | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5805-01-322-8387
Technical Data | NSN 5805-01-322-8387
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 6.380 INCHES NOMINAL |
| OVERALL HEIGHT | 9.000 INCHES NOMINAL |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| COLOR AND LOCATION | GRAY COVER |

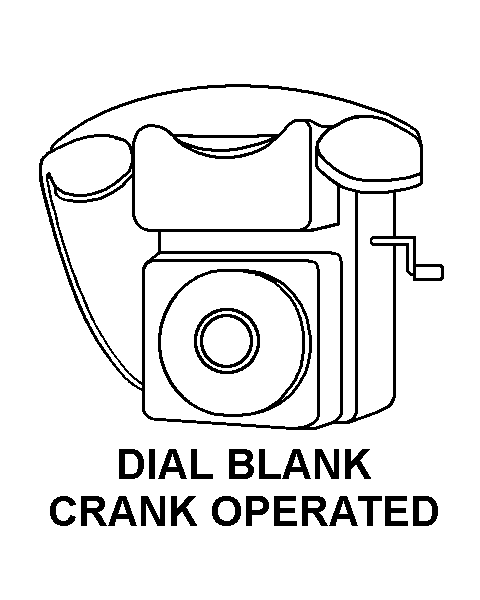

| STYLE DESIGNATOR | 19 DIAL BLANK CRANK OPERATED |
| INCLOSURE LOCKING FACILITY | NOT FURNISHED |
| TRANSMITTER CURRENT SUPPLY SOURCE | ANY ACCEPTABLE |
| DIAL | INCLUDED |
| PUSH-TO-TALK SWITCH | NOT INCLUDED |
| III END ITEM IDENTIFICATION | SOUND POWERED TELEPHONE |
| MANUFACTURERS CODE | 28199 |
| DESIGN CONTROL REFERENCE | 70-553 TY23-2RL |
Restrictions/Controls & Freight Information | NSN 5805-01-322-8387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
