NSN 5805-01-304-0614 MWTH12, MWTH-12, MWTH86
Product Details | TELEPHONE SET
5805-01-304-0614 A combination of items consisting of a handset or telephone, a switch and its associated wiring, with self-contained or separate ringer box. Includes wall telephones. It is primarily used for voice communications.
Part Alternates: MWTH12, MWTH-12, MWTH86, MWTH-86, MWTH-86 REV. M, MWTH86REVM, 80401, 804-01, 804-01 REV M, 80401REVM, 5805-01-304-0614, 01-304-0614, 5805013040614, 013040614
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 11 JUL 1989 | 01-304-0614 | 00307 ( TELEPHONE SET ) |

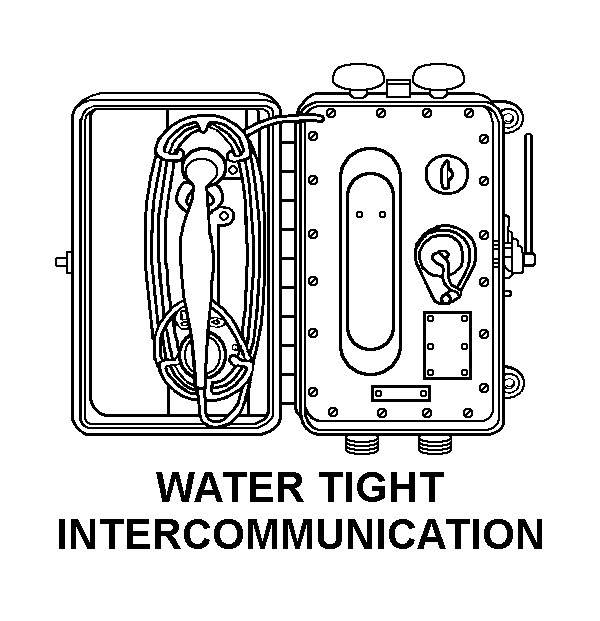

Drawings & Photos | NSN 5805-01-304-0614
Demand History | NSN 5805-01-304-0614
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5805-01-304-0614 | 2016-04-27 | 3 | DIBBS |
| 5805-01-304-0614 | 2011-03-10 | 2 | DIBBS |
| 5805-01-304-0614 | 2011-01-10 | 3 | DIBBS |
| 5805-01-304-0614 | 2010-11-18 | 4 | DIBBS |
| 5805-01-304-0614 | 2010-06-15 | 2 | DIBBS |
| 5805-01-304-0614 | 2009-11-12 | 10 | DIBBS |
| 5805-01-304-0614 | 2009-10-03 | 2 | DIBBS |
| 5805-01-304-0614 | 2009-09-08 | 1 | DIBBS |
| 5805-01-304-0614 | 2009-05-15 | 4 | DIBBS |
Cross Reference | NSN 5805-01-304-0614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 804-01 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 804-01 REV M | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MWTH-12 | 73274 | HOSE-MCCANN TELEPHONE CO., INC. DBA HOSE MCCANN COMMUNICATIONS |
| MWTH-86 | 73274 | HOSE-MCCANN TELEPHONE CO., INC. DBA HOSE MCCANN COMMUNICATIONS |
| MWTH-86 REV. M | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5805-01-304-0614
Related Products | NSN 5805-01-304-0614
Technical Data | NSN 5805-01-304-0614
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.625 INCHES NOMINAL |
| OVERALL LENGTH | 14.000 INCHES NOMINAL |
| COLOR AND LOCATION | GRAY CASE |
| STYLE DESIGNATOR | 36 BULKHEAD INTERCOMMUNICATION |
| INCLOSURE LOCKING FACILITY | FURNISHED |
| TRANSMITTER CURRENT SUPPLY SOURCE | SOUND POWERED |
| INCOMING CALL SIGNAL DEVICE | EXTERNAL BELL |
| SIGNAL DEVICE LOCATION | BASE |
| OUTGOING CALL SIGNAL DEVICE | MAGNETO |
| DIAL | NOT INCLUDED |
| DIAL BLANK | NOT INCLUDED |
| PUSH-TO-TALK SWITCH | NOT INCLUDED |
| III FSC APPLICATION DATA | TELEPHONE AND TELEGRAPH EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5805-01-304-0614
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART ARTICLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5805-01-304-0614
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
