NSN 5805-01-125-2296 2868778E4N100, 28687-78E4N100, 01-125-2296
Product Details | TELEPHONE SET
5805-01-125-2296 A combination of items consisting of a handset or telephone, a switch and its associated wiring, with self-contained or separate ringer box. Includes wall telephones. It is primarily used for voice communications.
Part Alternates: 2868778E4N100, 28687-78E4N100, 5805-01-125-2296, 01-125-2296, 5805011252296, 011252296
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 24 JAN 1982 | 01-125-2296 | 00307 ( TELEPHONE SET ) |

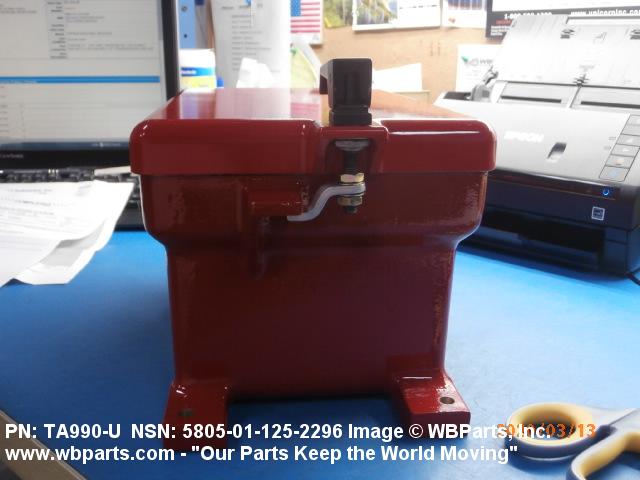

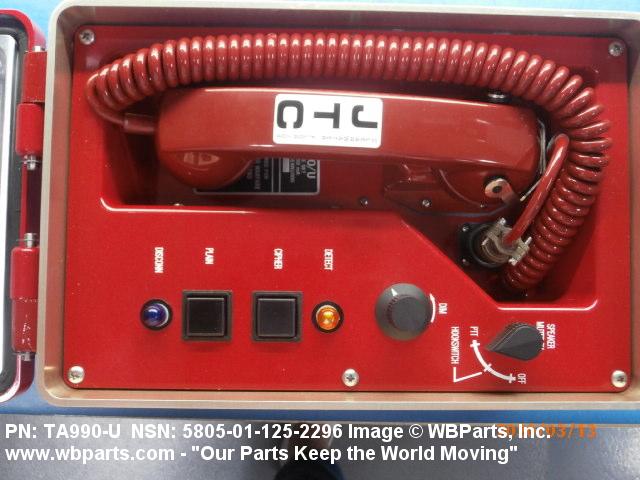

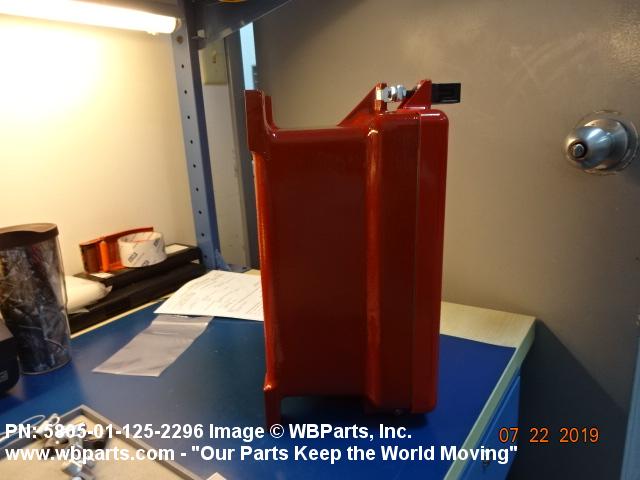

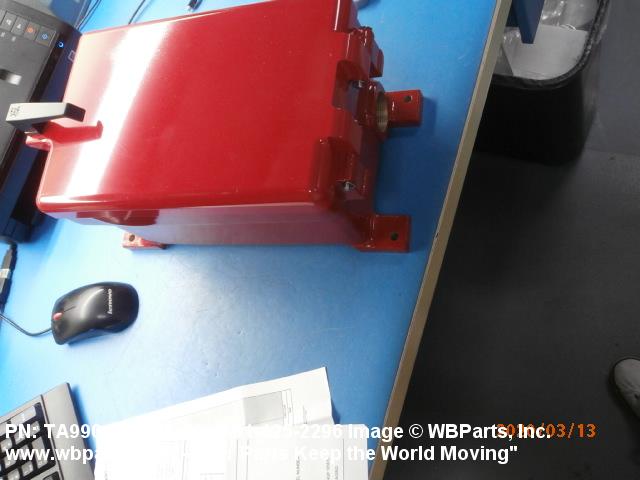

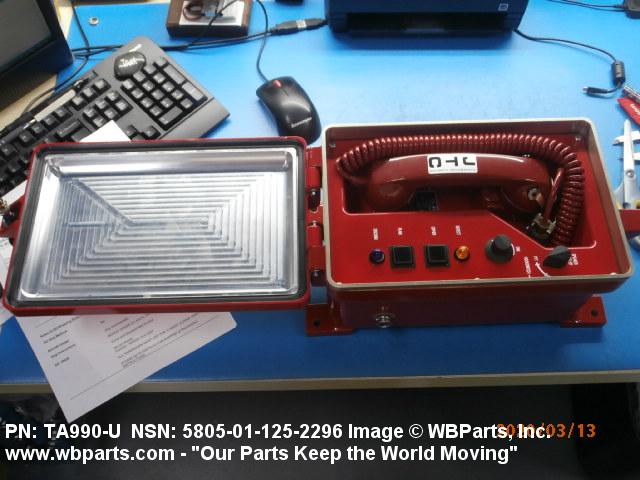

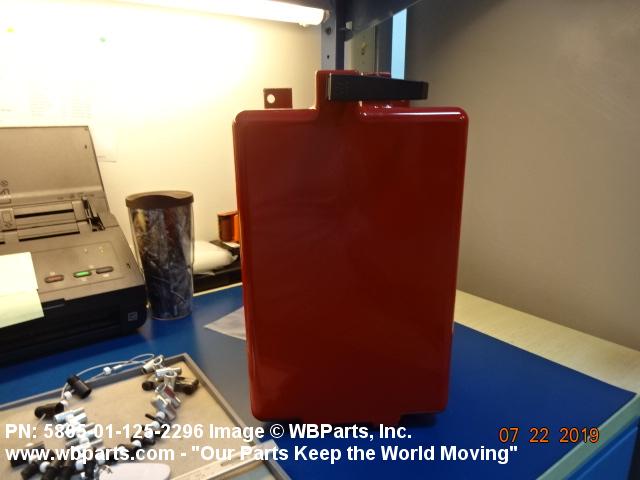

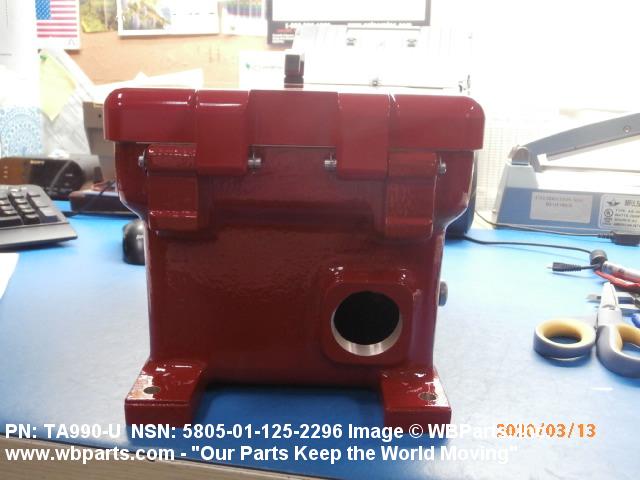

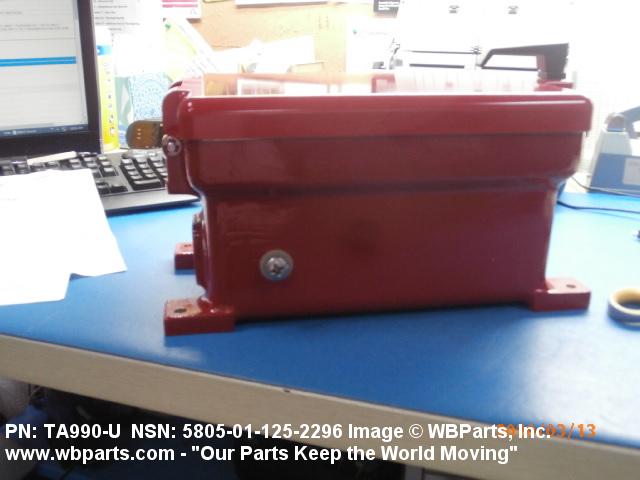

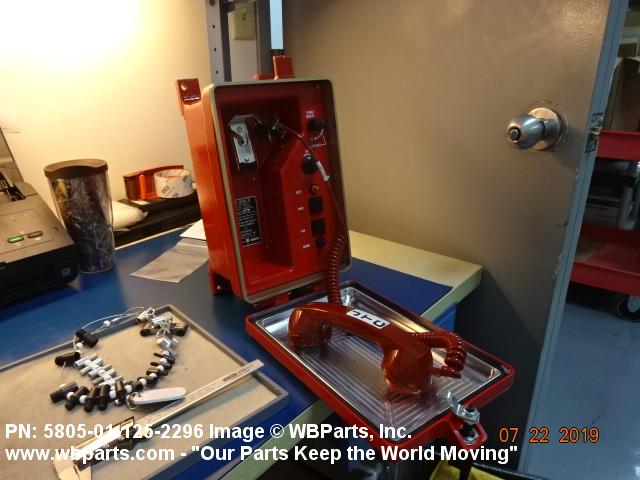

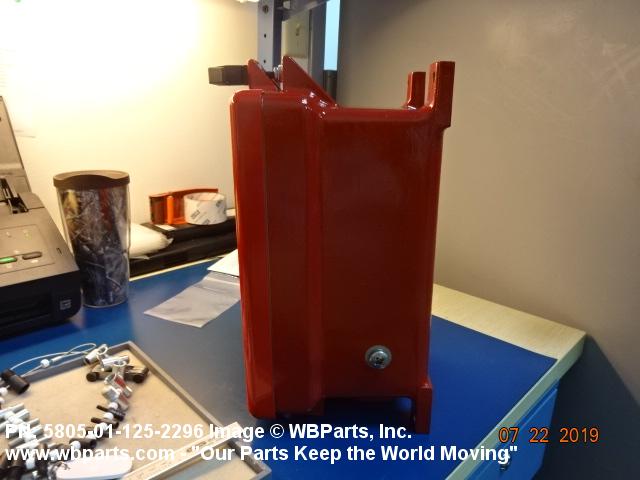

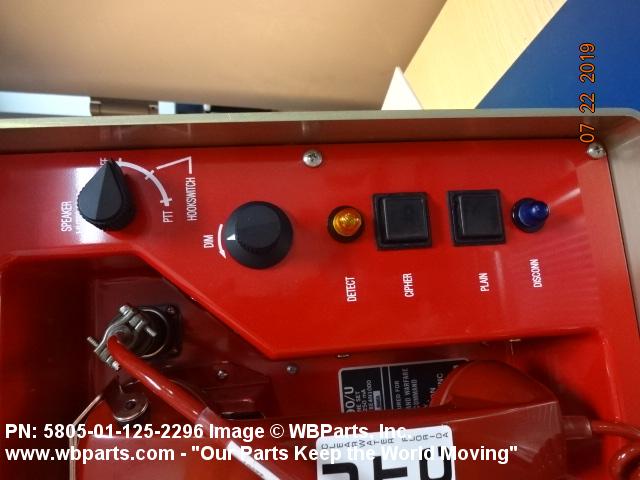

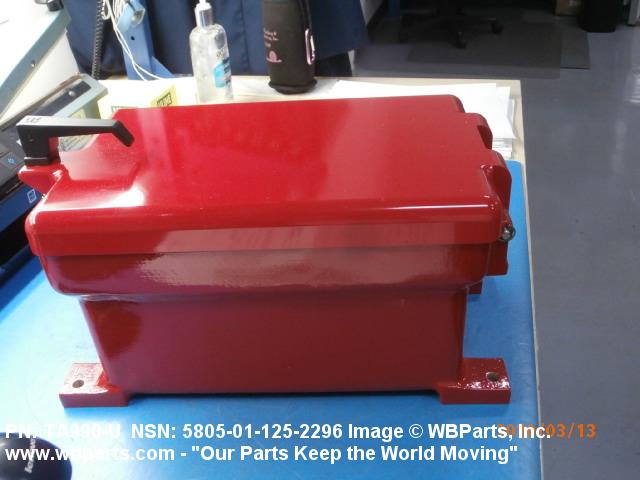

Drawings & Photos | NSN 5805-01-125-2296
Demand History | NSN 5805-01-125-2296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5805-01-125-2296 | 2022-09-255 | 9 | United States |
| 5805-01-125-2296 | 2019-09-252 | 1 | United States |
| 5805-01-125-2296 | 2019-06-170 | 1 | US |
| 5805-01-125-2296 | 2019-02-44 | 1 | United States |
| 5805-01-125-2296 | 2013-04-112 | 2 | US |
| 5805-01-125-2296 | 2012-02-40 | 12 | NECO |
Cross Reference | NSN 5805-01-125-2296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 28687-78E4N100 | 02387 | NAVAL AIR WARFARE CENTER AIRCRAFT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5805-01-125-2296
Related Products | NSN 5805-01-125-2296
Technical Data | NSN 5805-01-125-2296
| Characteristic | Specifications |
|---|---|

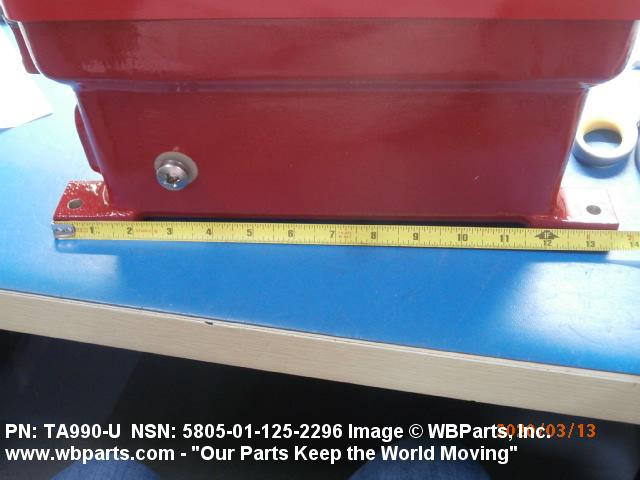

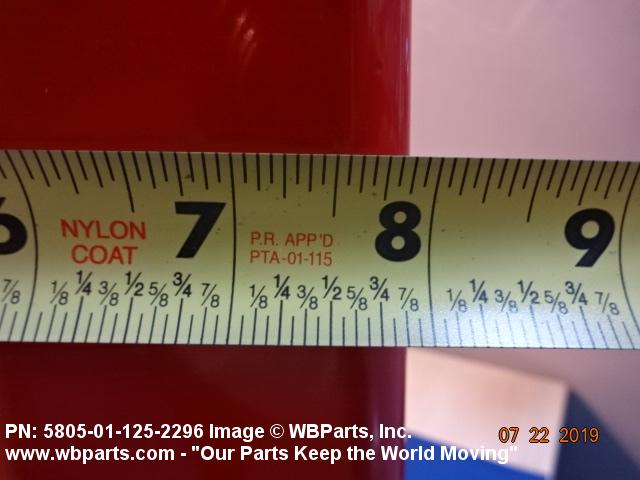

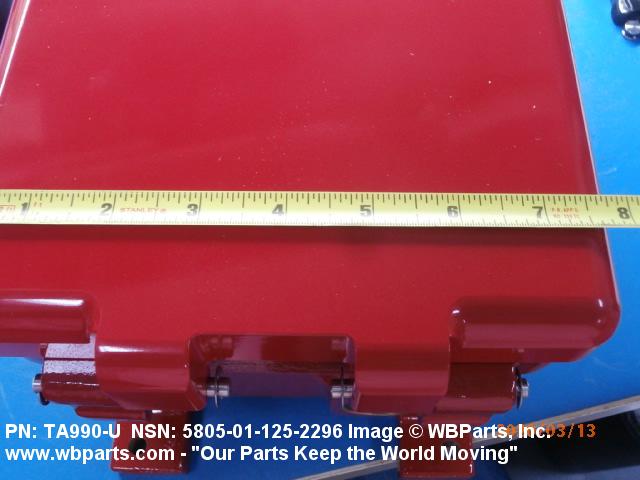

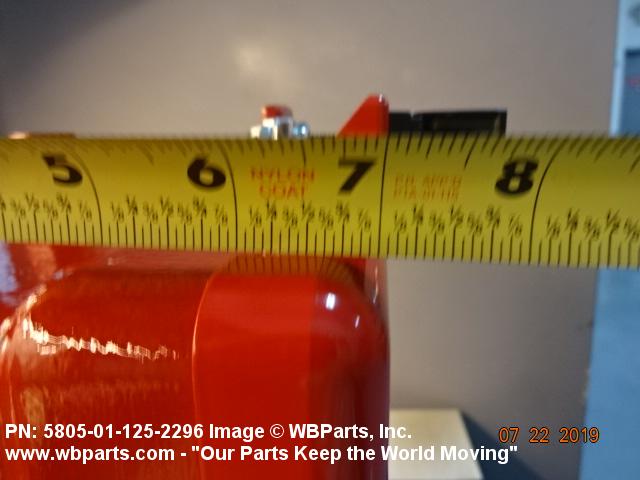

| OVERALL DIAMETER | 7.870 INCHES NOMINAL |
| OVERALL WIDTH | 7.920 INCHES NOMINAL |

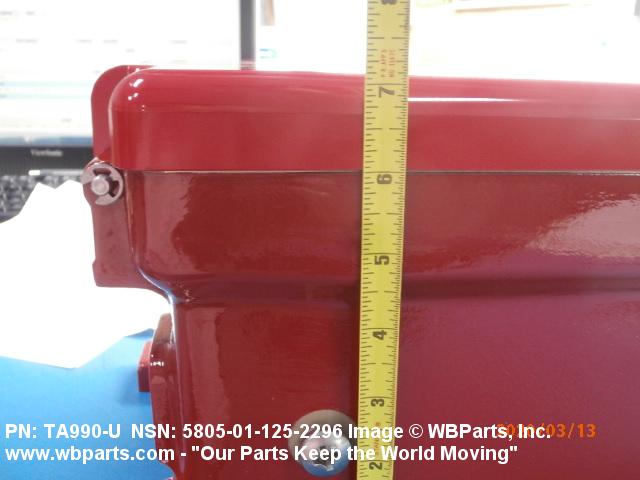

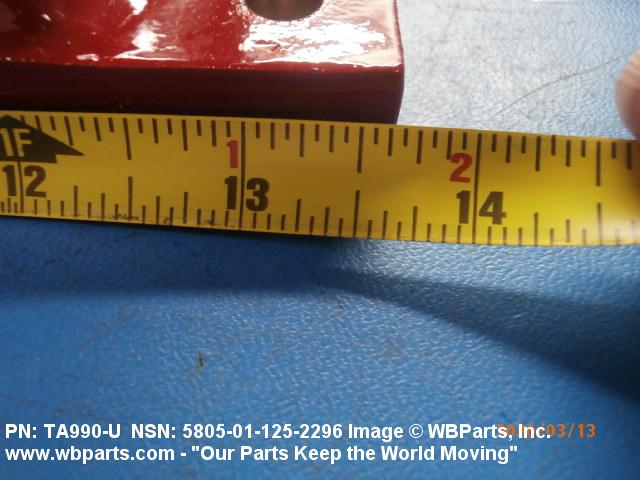

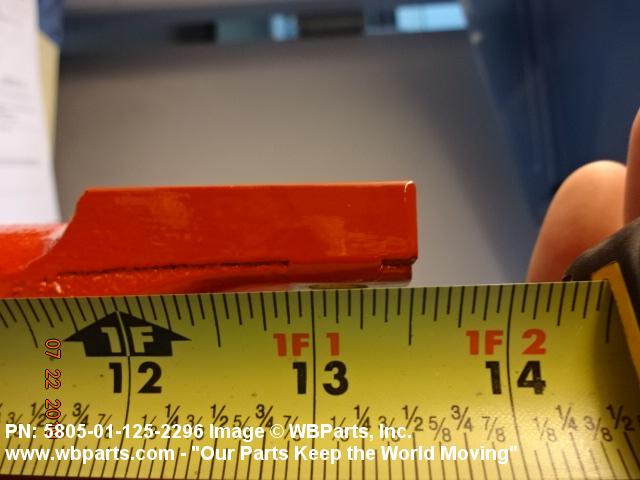

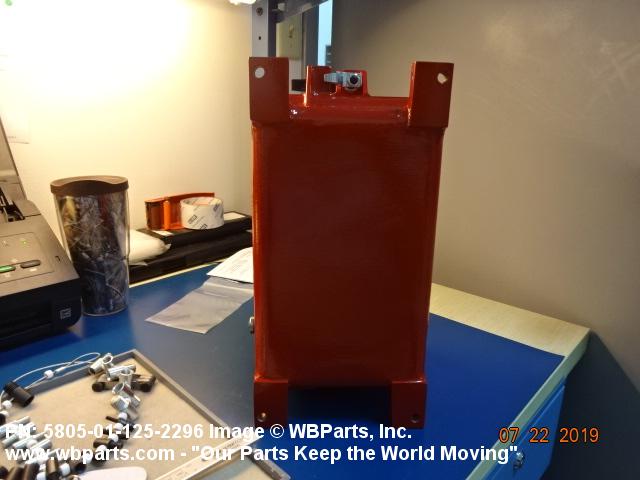

| OVERALL HEIGHT | 13.040 INCHES NOMINAL |
