NSN 5805-01-065-8723 TA-970/U, TA970U, 01-065-8723
Product Details | TELEPHONE SET
5805-01-065-8723 A combination of items consisting of a handset or telephone, a switch and its associated wiring, with self-contained or separate ringer box. Includes wall telephones. It is primarily used for voice communications.
Part Alternates: TA-970/U, TA970U, 5805-01-065-8723, 01-065-8723, 5805010658723, 010658723
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 24 SEP 1978 | 01-065-8723 | 00307 ( TELEPHONE SET ) |

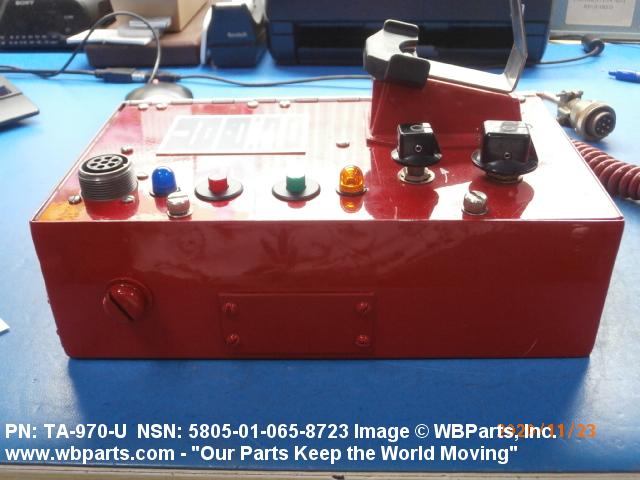

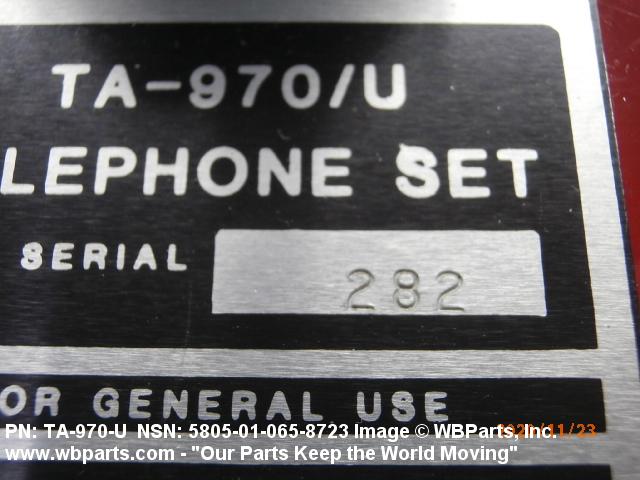

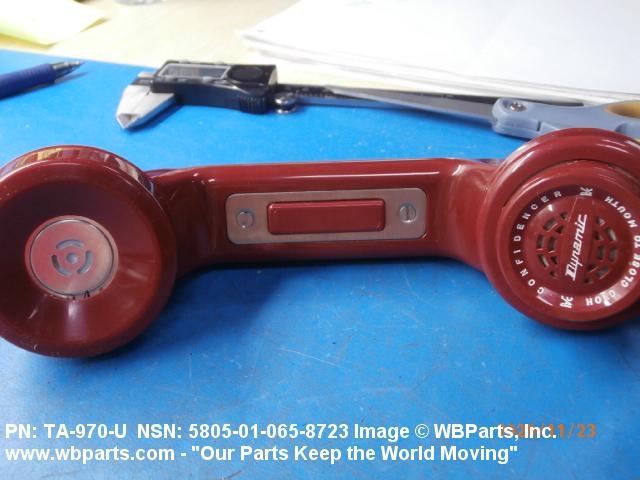

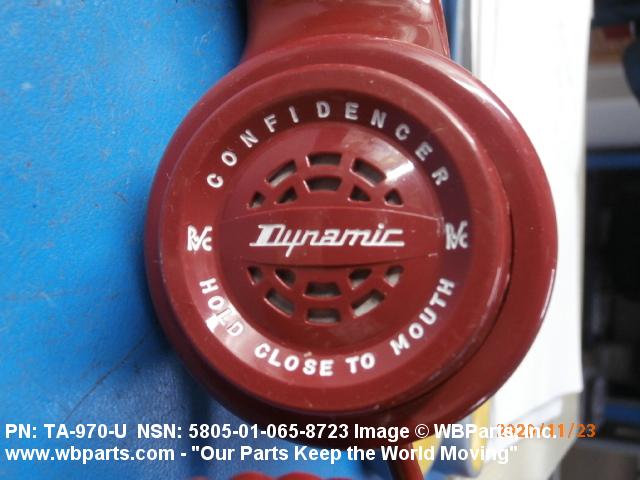

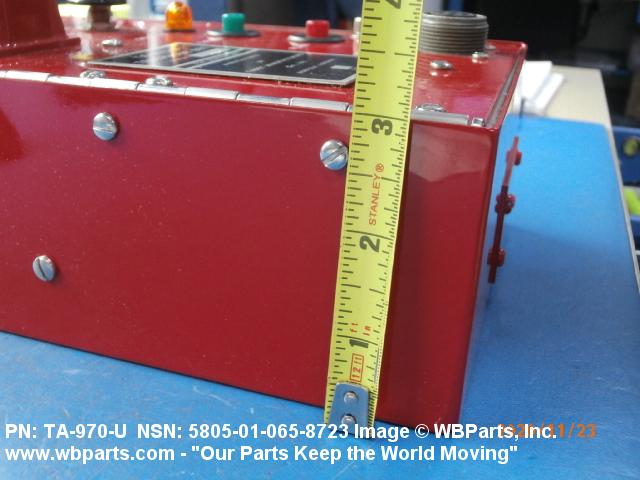

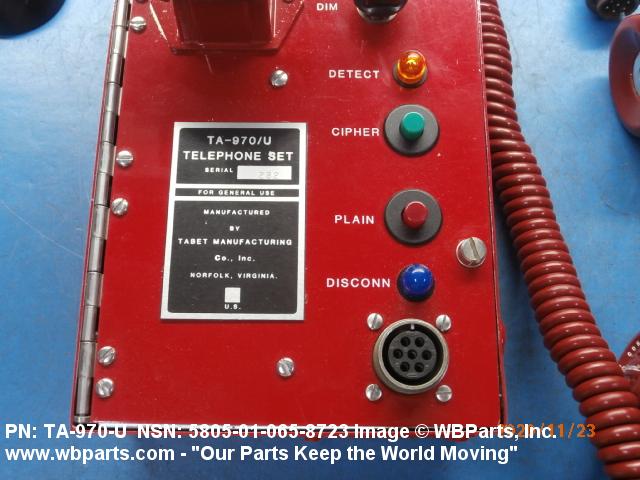

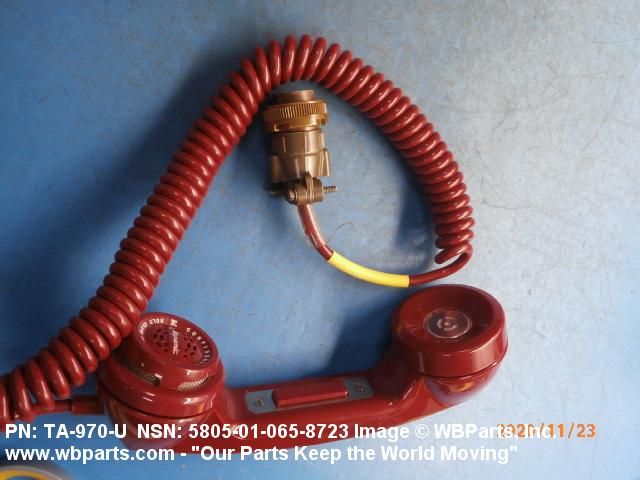

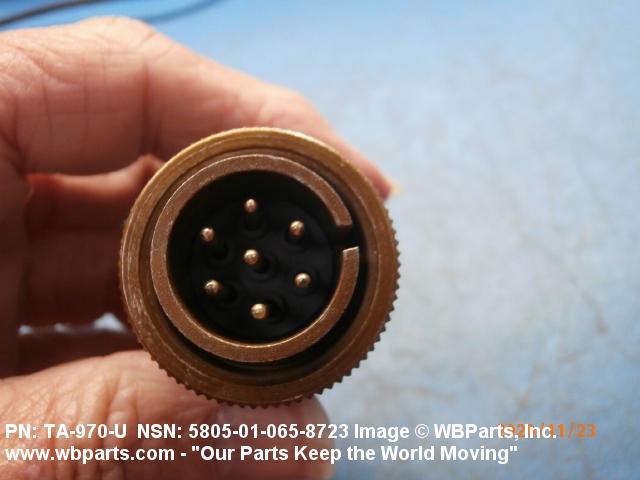

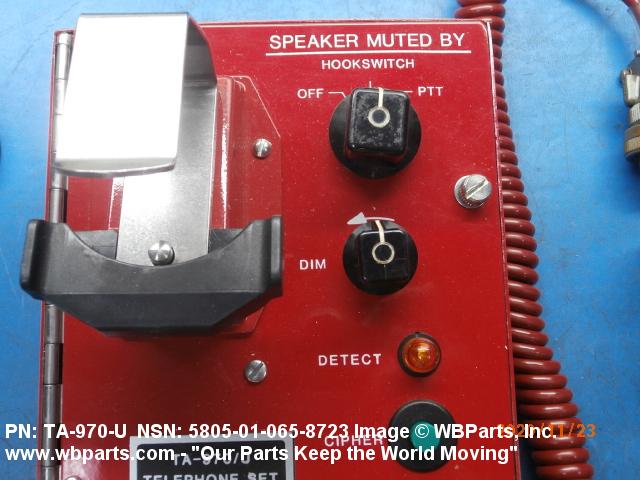

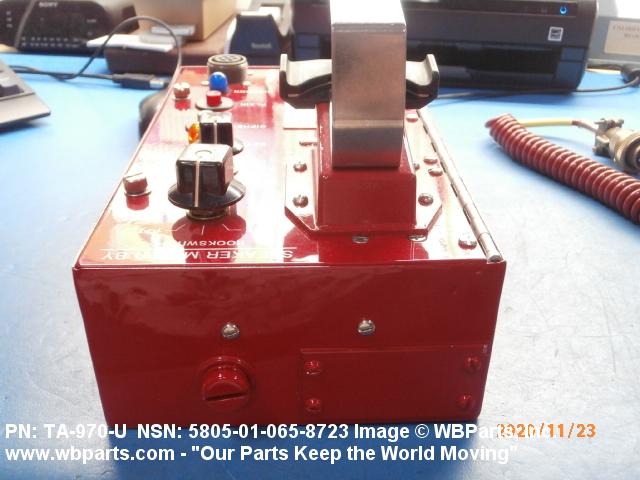

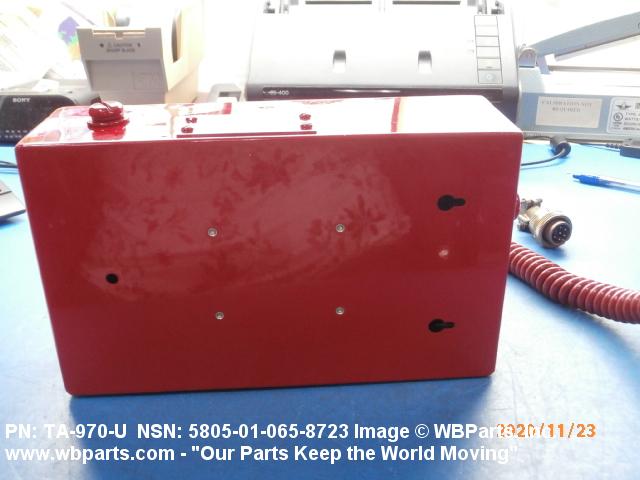

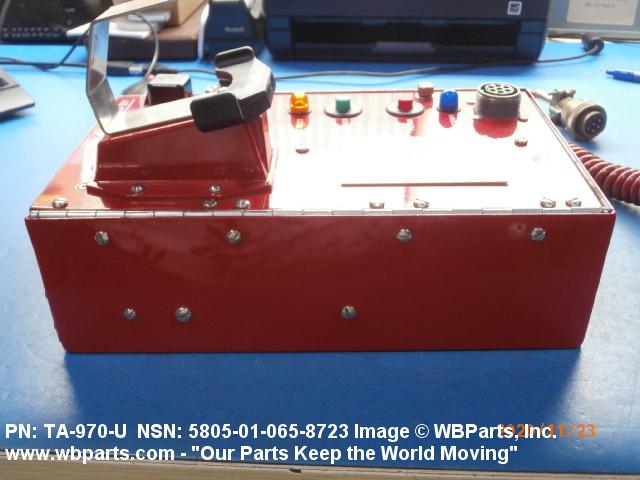

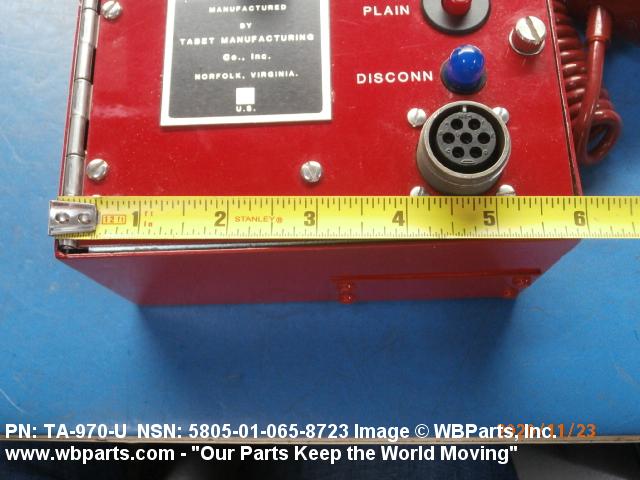

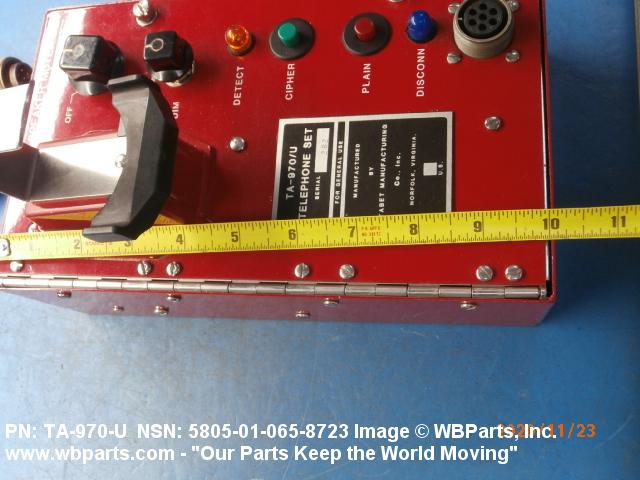

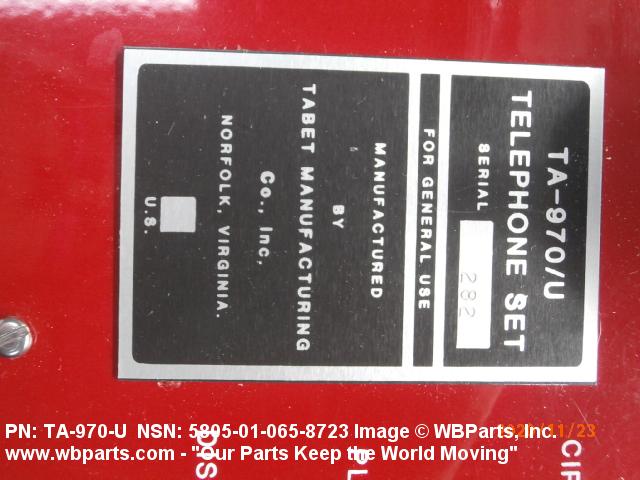

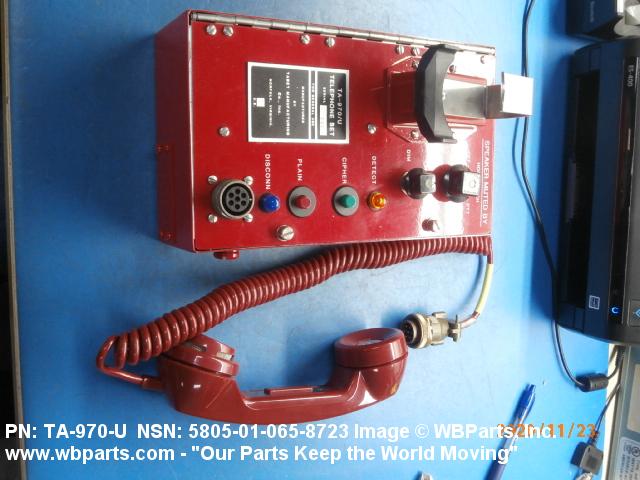

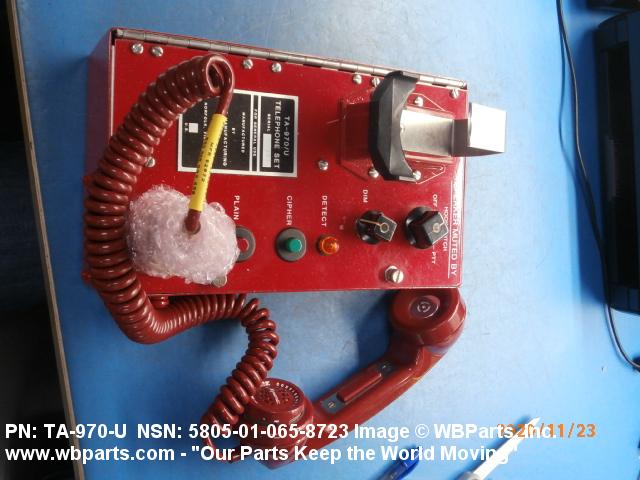

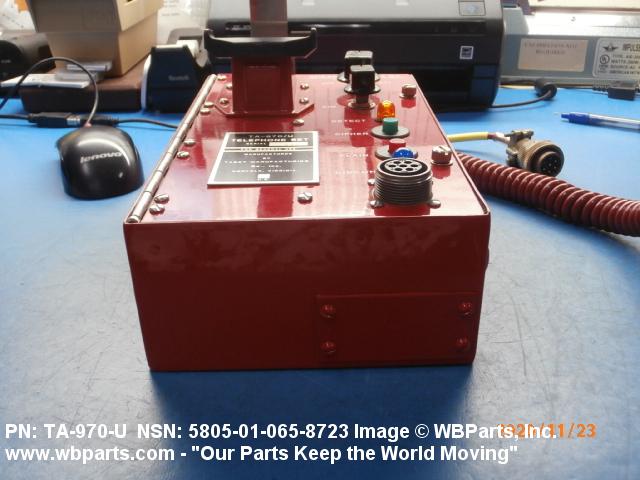

Drawings & Photos | NSN 5805-01-065-8723
Demand History | NSN 5805-01-065-8723
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5805-01-065-8723 | 2024-08-234 | 1 | AU |
| TA970U | 2024-06-178 | 2 | US |
| 5805-01-065-8723 | 2024-04-101 | 4 | US |
| 5805-01-065-8723 | 2024-02-58 | 1 | US |
| 5805-01-065-8723 | 2020-01-28 | 1 | United States |
| 5805-01-065-8723 | 2019-05-121 | 1 | United States |
| 5805-01-065-8723 | 2018-12-337 | 2 | US |
| 5805-01-065-8723 | 2017-11-306 | 10 | United States |
| 5805-01-065-8723 | 2017-07-209 | 3 | United States |
| 5805-01-065-8723 | 2017-07-199 | 22 | US |
| TA970U | 2014-03-85 | 8 | United States |
| TA970U | 2014-03-66 | 8 | United States |
| 5805-01-065-8723 | 2014-01-15 | 4 | United States |
| 5805-01-065-8723 | 2014-01-14 | 8 | US |
| 5805-01-065-8723 | 2014-01-10 | 8 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5805-01-065-8723
Related Products | NSN 5805-01-065-8723
Technical Data | NSN 5805-01-065-8723
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 10.000 INCHES NOMINAL |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| JOINT ELECTRONICS TYPE DESIGNATION SYSTEM ITEM NAME | TELEPHONE SET |
| JOINT ELECTRONICS TYPE DESIGNATION SYSTEM ITEM TYPE NUMBER | TA-970/U |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| DC VOLTAGE RATING | 24.0 VOLTS NOMINAL |
| CASE MATERIAL | STEEL |
| SPECIAL FEATURES | ITEMS ARE BEING CODED AS CRITICAL TO INSURE SOURCE INSPECTION WILL BE PERFORMED AT THE POINT OF MANUFACTURE, PRIOR TO MATERIAL RECEIPT BY THE US NAVY OR OTHER DOD COMPONENTS. THESE ITEMS ARE PIECE PARTS OR END ITEMS IN SUPPORT OF VITAL MILITARY HARDWARE NECESSARY TO SUSTAIN THE SUCCESSFUL MISSION OF THE SHIPS, SUBMARINES, AND SHORE STATIONS OF THE US NAVY. CRITICAL FEATURES INCLUDING, BUT NOT LIMITED TO, DIMENSIONS, TOLERANCES/CLEARANCES, ELECTRONIC CHARACTERISTICS, AND METALLURGICAL PROPERTIES WILL BESPECIFIED FOR GOVERNMENT Q AR (QUALITY ASSURANCE REPRESENTATIVES) TO INSURE THE HIGHEST POSSIBLE DEGREE OF QUALITY AND RELIABILITY OF THESE PARTS BEING DELIVERED UNDER NAVICP CONTRACTS |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 5805-01-065-8723
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART VIZ: SUB 8 |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5805-01-065-8723
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 2 | Marine Corps Appropriation Stores Account Secondary Items. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 4 | Communications/Electronics Materiel5445, 58, 59, 60, 61, 6625, 6660, 6665 |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | MPB | Commanding General Marine Corps Logistics Command 566-2, Bldg. 3700 Albany, GA 31704-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | D | Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal not authorized below depot level. |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7G | Depot level reparable electronic material to support Naval Inventory Control Point, Space and Naval Warfare Systems Command, Mechanicsburg |
| Special Material ID | GL | Gold Disk Repair Capable NSN |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | E | (1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
