NSN 5805-00-561-1208 K250000LR30M, K2500-00LR30M, 250000MBA20M
Product Details | TELEPHONE
5805-00-561-1208 An item specifically designed to convert sound into variations of an electric current and to reconvert similar variations into their original sound with sufficient accuracy for clear intelligibility. It consists of a telephone transmitter, telephone receiver, and a switch and is primarily used for voice communications. Includes pedestal type, cradle type and hang-up type telephones. Does not include separate handsets or head and chest sets.
Part Alternates: K250000LR30M, K2500-00LR30M, 250000MBA20M, 250000-MBA-20M, 5805-00-561-1208, 00-561-1208, 5805005611208, 005611208
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 14 NOV 1974 | 00-561-1208 | 00306 ( TELEPHONE ) |

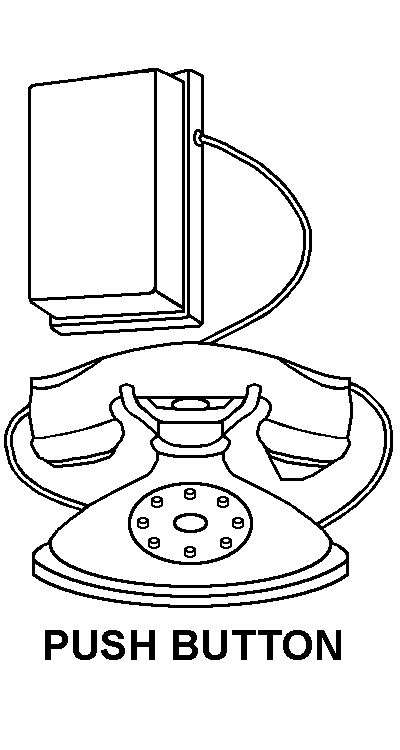

Drawings & Photos | NSN 5805-00-561-1208
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5805-00-561-1208
Technical Data | NSN 5805-00-561-1208
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 6.250 INCHES NOMINAL |
| OVERALL HEIGHT | 4.875 INCHES NOMINAL |
| OVERALL LENGTH | 9.063 INCHES NOMINAL |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| DC VOLTAGE RATING | 48.0 VOLTS NOMINAL |
| INTERNAL BATTERY ACCOMMODATION | NOT INCLUDED |
| CASE MATERIAL | PLASTIC |
| COLOR AND LOCATION | BLACK OVERALL |
| STYLE DESIGNATOR | 6 PUSH BUTTON |
| INCLOSURE LOCKING FACILITY | NOT FURNISHED |
| TRANSMITTER CURRENT SUPPLY SOURCE | COMMON BATTERY |
| OUTGOING CALL SIGNAL DEVICE | CRADLE SWITCH |
| DIAL | INCLUDED |
| PUSH-TO-TALK SWITCH | NOT INCLUDED |
| SPECIAL FEATURES | COLOR BLACK,METROPOLITAN DIAL |
Restrictions/Controls & Freight Information | NSN 5805-00-561-1208
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
