Product Details | TELEPHONE

5805-00-300-0243 An item specifically designed to convert sound into variations of an electric current and to reconvert similar variations into their original sound with sufficient accuracy for clear intelligibility. It consists of a telephone transmitter, telephone receiver, and a switch and is primarily used for voice communications. Includes pedestal type, cradle type and hang-up type telephones. Does not include separate handsets or head and chest sets.

Part Alternates: NC802000ASA, 5805-00-300-0243, 00-300-0243, 5805003000243, 003000243

Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment

Supply Group (FSG) NSN Assign. NIIN
58 03 OCT 1973 00-300-0243

Drawings & Photos | NSN 5805-00-300-0243


Cross Reference | NSN 5805-00-300-0243

Part Number Cage Code Manufacturer
NC802000ASA 04773 GTE COMMUNICATION SYSTEMS CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5805-00-300-0243

Technical Data | NSN 5805-00-300-0243

Characteristic Specifications
OVERALL WIDTH 8.500 INCHES NOMINAL
OVERALL HEIGHT 4.750 INCHES NOMINAL
OVERALL LENGTH 9.750 INCHES NOMINAL
ELECTRICAL POWER SOURCE RELATIONSHIP OPERATING
INTERNAL BATTERY ACCOMMODATION NOT INCLUDED
CASE MATERIAL PLASTIC

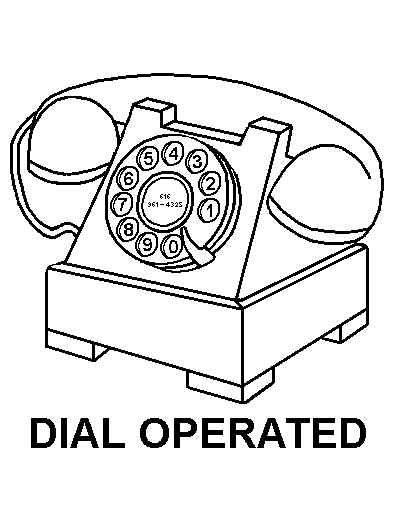

STYLE DESIGNATOR 1 DIAL OPERATED
INCLOSURE LOCKING FACILITY NOT FURNISHED
INCOMING CALL SIGNAL DEVICE RINGER
SIGNAL DEVICE LOCATION BASE
OUTGOING CALL SIGNAL DEVICE CRADLE SWITCH
DIAL INCLUDED
PUSH-TO-TALK SWITCH NOT INCLUDED
SPECIAL FEATURES BLACK

Restrictions/Controls & Freight Information | NSN 5805-00-300-0243

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
