NSN 5805-00-164-7091 MILT13278TYPETP6, 925BAX, 40
Product Details | TELEPHONE SET
5805-00-164-7091 A combination of items consisting of a handset or telephone, a switch and its associated wiring, with self-contained or separate ringer box. Includes wall telephones. It is primarily used for voice communications.
Part Alternates: MILT13278TYPETP6, 925BAX, 40, 5805-00-164-7091, 00-164-7091, 5805001647091, 001647091
Communication, Detection, and Coherent Radiation Equipment | Telephone and Telegraph Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01 JAN 1963 | 00-164-7091 | 00307 ( TELEPHONE SET ) |
Drawings & Photos | NSN 5805-00-164-7091
Cross Reference | NSN 5805-00-164-7091
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5805-00-164-7091
Technical Data | NSN 5805-00-164-7091
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | ANY ACCEPTABLE |

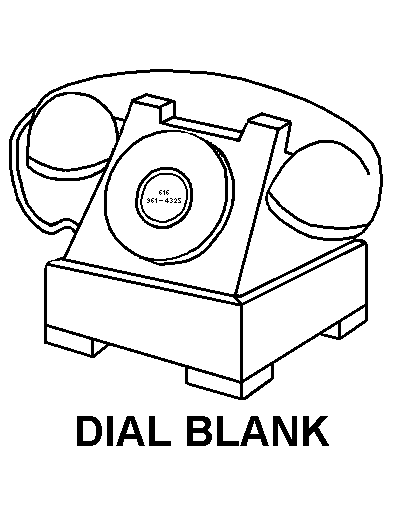

| STYLE DESIGNATOR | 3 DIAL BLANK |
| INCLOSURE LOCKING FACILITY | NOT FURNISHED |
| TRANSMITTER CURRENT SUPPLY SOURCE | COMMON BATTERY |
| INCOMING CALL SIGNAL DEVICE | RINGER |
| SIGNAL DEVICE LOCATION | BASE |
| OUTGOING CALL SIGNAL DEVICE | CRADLE SWITCH |
| DIAL | NOT INCLUDED |
| DIAL BLANK | INCLUDED |
| PUSH-TO-TALK SWITCH | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | TP-6 TYPE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT13278TYPETP6 |
Restrictions/Controls & Freight Information | NSN 5805-00-164-7091
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART VIZ: SUB 8 |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
