NSN 5670-01-069-3980 M460AW, 01-069-3980, 010693980
Product Details | METAL MOLDING
5670-01-069-3980 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: M460AW, 5670-01-069-3980, 01-069-3980, 5670010693980, 010693980
Construction and Building Materials | Building Components, Prefabricated
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 15 DEC 1978 | 01-069-3980 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 5670-01-069-3980
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5670-01-069-3980
Technical Data | NSN 5670-01-069-3980
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | PLASTIC COATED |
| FABRICATION METHOD | EXTRUDED |

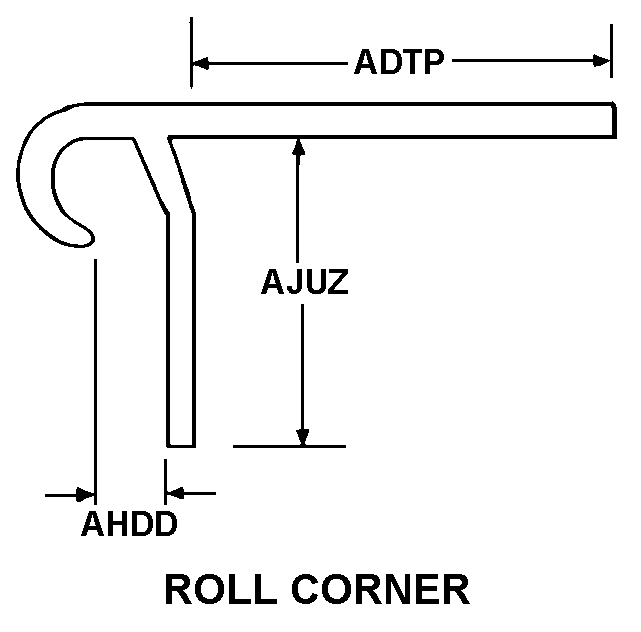

| STYLE DESIGNATOR | 32 ROLL CORNER |
| LEGEND A | 0.562 INCHES NOMINAL |
| LEGEND B | 1.250 INCHES NOMINAL |
| LEGEND C | 0.188 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 8.000 FEET NOMINAL |
| DESIGN FORM | STRIP |
| MOUNTING METHOD | SPRING CLIP |
Restrictions/Controls & Freight Information | NSN 5670-01-069-3980
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
