NSN 5640-01-009-8023 GT100JD1, P-306, P306
Product Details | THERMAL INSULATION TAPE
5640-01-009-8023 A material 12 inches (304.8 mm) or less in width consisting of a jacket woven of asbestos or other heat resisting fibers filled with fibers of INSULATION, THERMAL. It is normally used for wrapping high temperature pipes. For materials 12 inches (304.8 mm) or less in width, not of filled jacket construction, see TAPE, TEXTILE; ASBESTOS STRIP, WOVEN; and ASBESTOS STRIP, COMPRESSED.
Part Alternates: GT100JD1, P-306, P306, 5640-01-009-8023, 01-009-8023, 5640010098023, 010098023
Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 17 SEP 1975 | 01-009-8023 | 15122 ( INSULATION TAPE, THERMAL ) |

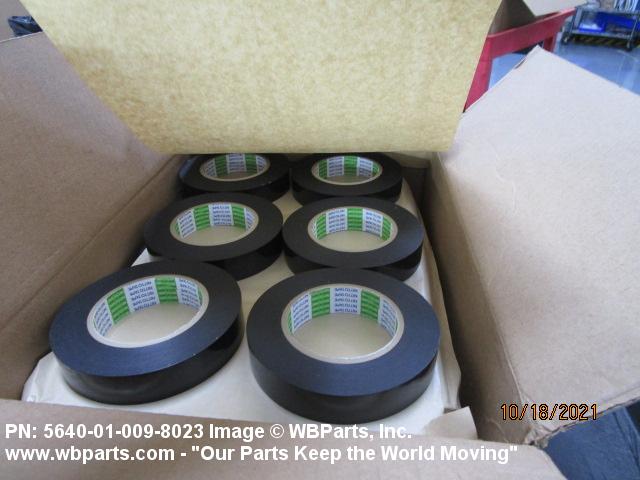

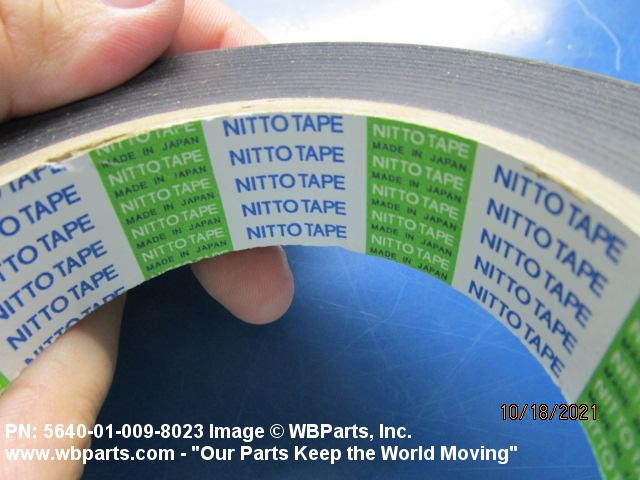

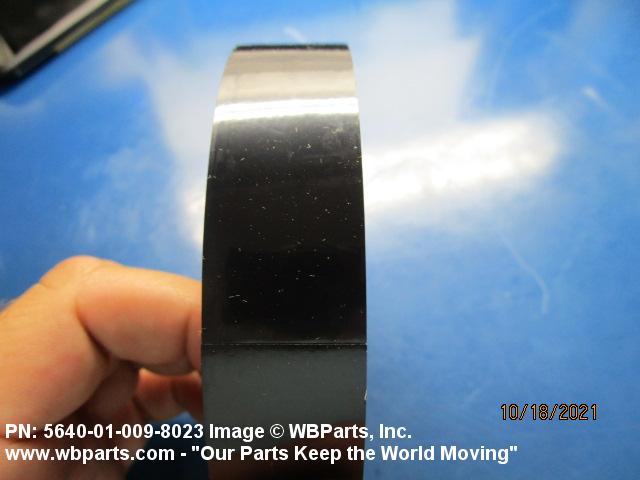

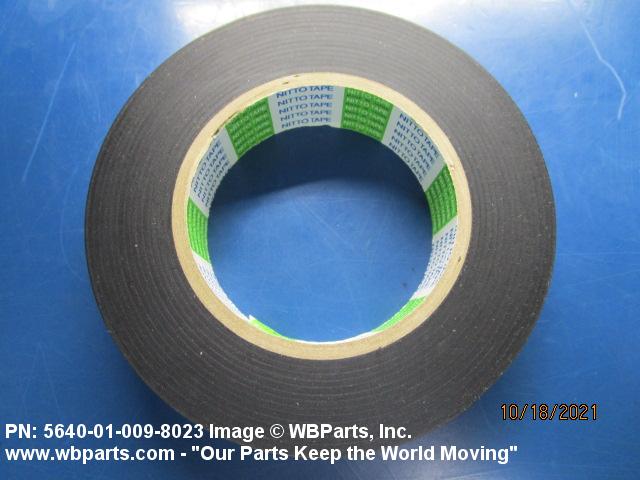

Drawings & Photos | NSN 5640-01-009-8023
Demand History | NSN 5640-01-009-8023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5640-01-009-8023 | 2024-07-208 | 2 | Singapore |
| 5640-01-009-8023 | 2024-07-205 | 2 | Singapore |
| 5640-01-009-8023 | 2024-04-114 | 24 | US |
| 5640-01-009-8023 | 2024-04-107 | 4 | us |
| 5640-01-009-8023 | 2021-06-174 | 20 | United States |
| 5640-01-009-8023 | 2021-06-167 | 24 | United States |
| 5640-01-009-8023 | 2019-11-329 | 1 | Norway |
| 5640-01-009-8023 | 2019-06-158 | 1 | Norway |
| 5640-01-009-8023 | 2018-08-232 | 10 | United Kingdom |
| P306 | 2018-06-166 | 1 | Japan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5640-01-009-8023
Related Products | NSN 5640-01-009-8023
Technical Data | NSN 5640-01-009-8023
| Characteristic | Specifications |
|---|---|
| JACKET MATERIAL | PLASTIC, VINYL AND RESIN |

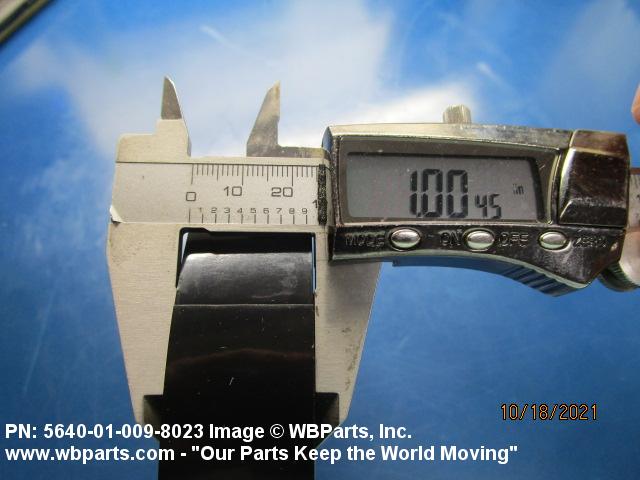

| WIDTH | 1.000 INCHES NOMINAL |
| THICKNESS | 0.254 MILLIMETERS NOMINAL |
| CONTENT WITHIN EACH UNIT PACKAGE | 100 FEET |
| UNIT PACKAGE TYPE | ROLL |
| SPECIAL FEATURES | USED AS A CORROSION RESISTANT COVEERING OF PIPE AND CONDUITS INSTALLED ABOVE OR BELOW GROUND |
Restrictions/Controls & Freight Information | NSN 5640-01-009-8023
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5640-01-009-8023
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
