NSN 5640-00-726-8690 ASTM C208, ASTMC208, LLLI535
Product Details | THERMAL INSULATION BOARD
5640-00-726-8690 An item identical in construction to INSULATION BLOCK, THERMAL except that it is supplied in lengths greater than 36 inches (914.4 mm). Excludes BUILDING BOARD (as modified). MILLBOARD, ASBESTOS; ASBESTOS SHEET, COMPRESSED; CORK SHEET; CORK AND RUBBERSHEET; and FIBERBOARD (as modified). See also INSULATION BLANKET, THERMAL.
Part Alternates: ASTM C208, ASTMC208, LLLI535, 5640-00-726-8690, 00-726-8690, 5640007268690, 007268690
Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 01 JAN 1961 | 00-726-8690 | 15118 ( INSULATION BOARD, THERMAL ) |
Drawings & Photos | NSN 5640-00-726-8690
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5640-00-726-8690
Technical Data | NSN 5640-00-726-8690
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBER, VEGETABLE |
| OVERALL THICKNESS | 0.500 INCHES NOMINAL |
| COVERAGE WIDTH | 48.000 INCHES NOMINAL |
| OVERALL WIDTH | 48.000 INCHES NOMINAL |
| COVERAGE LENGTH | 96.000 INCHES NOMINAL |
| OVERALL LENGTH | 96.000 INCHES NOMINAL |
| MAXIMUM THERMAL CONDUCTIVITY | 0.38 AT 75 DEG F MEAN TEMP |

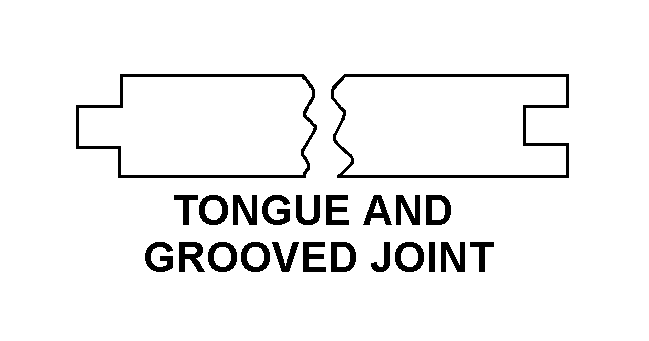

| LONG EDGE JOINT STYLE | 12 TONGUE AND GROOVED JOINT |
| SHORT EDGE JOINT STYLE | 12 TONGUE AND GROOVED JOINT |
| FLAMEPROOF FEATURE | NOT INCLUDED |
| WATER REPELLENT COATED SURFACE | NOT PROVIDED |
| ONE SIDE DECORATION PROVISION | PROVIDED |
| DECORATIVE SIDE TYPE | SIZED |
| DECORATIVE SIDE COLOR | IVORY |
| TEMP RATING | NOT RATED |
| DENSITY RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5640-00-726-8690
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
