NSN 5640-00-527-8782 SSS00118, 00-527-8782, 005278782
Product Details | SOUND CONTROLLING BLOCK
5640-00-527-8782 A light, rigid item composed of one or more kinds of granule and/or fiber with binder added, compressed to the desired density, and dried. It may be with or without surface coating and/or perforations or voids to be exposed to the noise area to entrap and dissipate sound energy, and is rated for this use. It is provided in lengths up to and including 36 inches (914.4 mm).
Part Alternates: SSS00118, 5640-00-527-8782, 00-527-8782, 5640005278782, 005278782
Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 01 JAN 1963 | 00-527-8782 | 20227 ( SOUND CONTROLLING BLOCK ) |
Drawings & Photos | NSN 5640-00-527-8782
Cross Reference | NSN 5640-00-527-8782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SSS00118 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5640-00-527-8782
Technical Data | NSN 5640-00-527-8782
| Characteristic | Specifications |
|---|---|
| BASIC MATERIAL | FIBER, VEGETABLE |
| OVERALL THICKNESS | 0.750 INCHES NOMINAL |
| COVERAGE WIDTH | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| COVERAGE LENGTH | 12.000 INCHES NOMINAL |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| NOISE REDUCTION COEFFICIENT RATING | 0.60 NOMINAL |
| EXPOSED FACE SURFACE TYPE | PERFORATED |
| PERFORATION QUANTITY | ANY ACCEPTABLE |

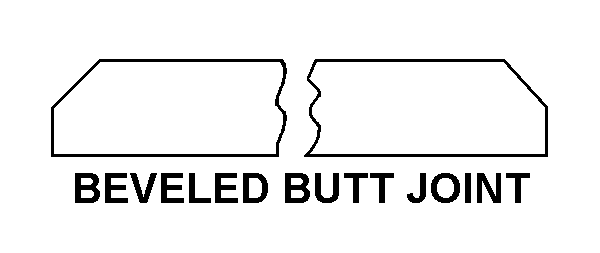

| JOINT STYLE | 6 BEVELED BUTT JOINT |
| FLAMEPROOF FEATURE | INCLUDED |
| COLOR | WHITE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 4 GRADE AND 25 CLASS AND A PATTERN |
| DEPARTURE FROM CITED DESIGNATOR | HUES |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | SSS00118 |
Restrictions/Controls & Freight Information | NSN 5640-00-527-8782
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
