NSN 5640-00-106-9816 SSS118A, 00-106-9816, 001069816
Product Details | SOUND CONTROLLING BLOCK
5640-00-106-9816 A light, rigid item composed of one or more kinds of granule and/or fiber with binder added, compressed to the desired density, and dried. It may be with or without surface coating and/or perforations or voids to be exposed to the noise area to entrap and dissipate sound energy, and is rated for this use. It is provided in lengths up to and including 36 inches (914.4 mm).
Part Alternates: SSS118A, 5640-00-106-9816, 00-106-9816, 5640001069816, 001069816
Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 29 JUL 1968 | 00-106-9816 | 20227 ( SOUND CONTROLLING BLOCK ) |
Drawings & Photos | NSN 5640-00-106-9816
Cross Reference | NSN 5640-00-106-9816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SSS118A | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5640-00-106-9816
Technical Data | NSN 5640-00-106-9816
| Characteristic | Specifications |
|---|---|
| BASIC MATERIAL | MINERAL WOOL |
| OVERALL THICKNESS | 0.750 INCHES NOMINAL |
| COVERAGE WIDTH | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| COVERAGE LENGTH | 15.000 INCHES NOMINAL |
| OVERALL LENGTH | 15.000 INCHES NOMINAL |
| NOISE REDUCTION COEFFICIENT RATING | 0.70 NOMINAL |
| EXPOSED FACE SURFACE TYPE | FELTED FIBER |

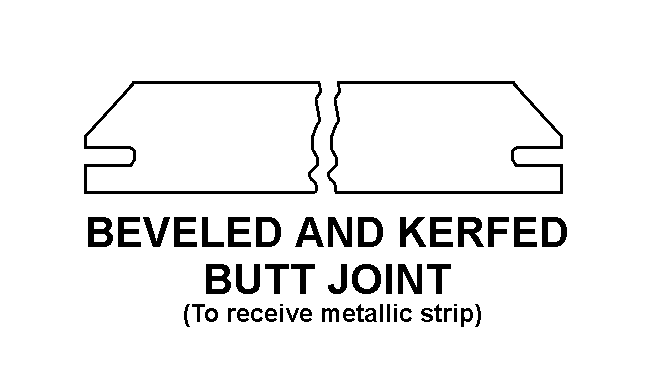

| LONG EDGE JOINT STYLE | 23 BEVELED AND KERFED BUTT JOINT |
| SHORT EDGE JOINT STYLE | 23 BEVELED AND KERFED BUTT JOINT |
| FLAMEPROOF FEATURE | INCLUDED |
| COLOR | WHITE |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND NRC70 GRADE AND LR1 GRADE AND 25 CLASS AND F PATTERN |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | SSS118A |
Restrictions/Controls & Freight Information | NSN 5640-00-106-9816
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
