NSN 5630-00-267-1553 SSP1540, 00-267-1553, 002671553
Product Details | BITUMINIZED FIBER PIPE BEND
5630-00-267-1553 A bituminized fiber or cast iron fitting used to connect two sections of bituminized fiber pipe to form an angular turn.
Part Alternates: SSP1540, 5630-00-267-1553, 00-267-1553, 5630002671553, 002671553
Construction and Building Materials | Pipe and Conduit, Nonmetallic
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 01 JAN 1963 | 00-267-1553 | 08910 ( BEND, BITUMINIZED FIBER PIPE ) |
Drawings & Photos | NSN 5630-00-267-1553
Cross Reference | NSN 5630-00-267-1553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SSP1540 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5630-00-267-1553
Related Products | NSN 5630-00-267-1553
Technical Data | NSN 5630-00-267-1553
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBER, BITUMINIZED |

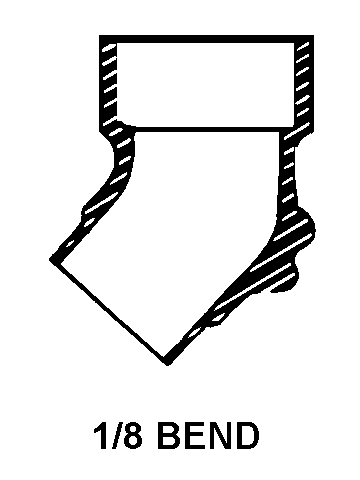

| STYLE DESIGNATOR | B12 1/8 BEND |
| NOMINAL PIPE SIZE DESIGNATION | 4.000 INCHES |
| COUPLING | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE OR 2 TYPE AND 1 CLASS AND 4 IN. ID SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BYCOUPLING NOT INCLUDED |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | SSP1540 |
Restrictions/Controls & Freight Information | NSN 5630-00-267-1553
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 050950 | CONDUITS R PIPE ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5630-00-267-1553
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
